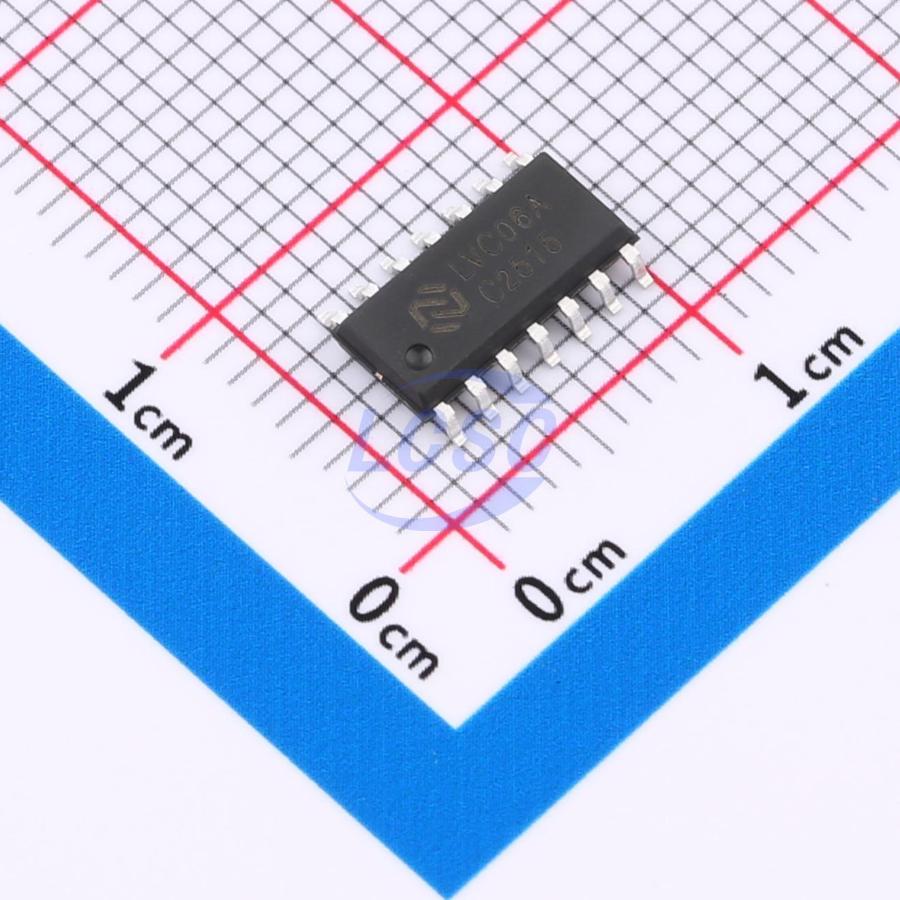

EM74LVC06AD
Schmitt trigger 1.65V~5.5V 5ns@5.5V,15pF 40uA 6 SOP-14L Gates and Inverters
SOP-14LRoHSActive
Hex inverter with open-drain outputs
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74LVC06AD
- Store part #
- C49188178
- Package / case
- SOP-14L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,720 in stock
#C49188178
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.32 | ₹91.60 |
| 50+ | ₹14.49 | ₹724.50 |
| 150+ | ₹12.57 | ₹1,885.50 |
| 500+ | ₹11.13 | ₹5,565.00 |
| 3,000+ | ₹9.98 | ₹29,940.00 |
| 6,000+ | ₹9.41 | ₹56,460.00 |
5 × ₹18.32
₹91.60
excl. GST
₹108.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74LVC06AD
₹91.60 for 5 + GST
Specifications
- output type
- Open-drain
- Logic Family
- 74LVC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 800mV
- Propagation Delay
- 5ns@5.5V,15pF
- Features
- Power shutdown protection;Noise suppression function
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 40uA
- Number of Channels
- 6
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.268 g
Overview
The 74LVC06A provides six inverting buffers with open-drain outputs that can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. The inputs can be driven by 3.3V or 5V devices, making this device suitable for use as a level translator in mixed 3.3V/5V environments. All inputs feature Schmitt-trigger action, making the circuit tolerant of slower input rise and fall times. The device fully supports partial power-down applications using the IOFF circuit, which disables the outputs when the device is powered down, preventing damaging backflow current through the device.
Key features
- Wide supply voltage range: 1.2V to 5.5V
- Input overvoltage tolerance up to 5.5V
- CMOS low power consumption
- I<sub>OFF</sub> circuitry supports partial power-down mode operation
- Latch-up performance exceeds 250mA
- Direct TTL-level interface compatible
- JEDEC standards compliant: JESD8-7 (1.65V to 1.95V), JESD8-5 (2.3V to 2.7V), JESD8C (2.7V to 3.6V), JESD36 (4.5V to 5.5V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 6000V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
