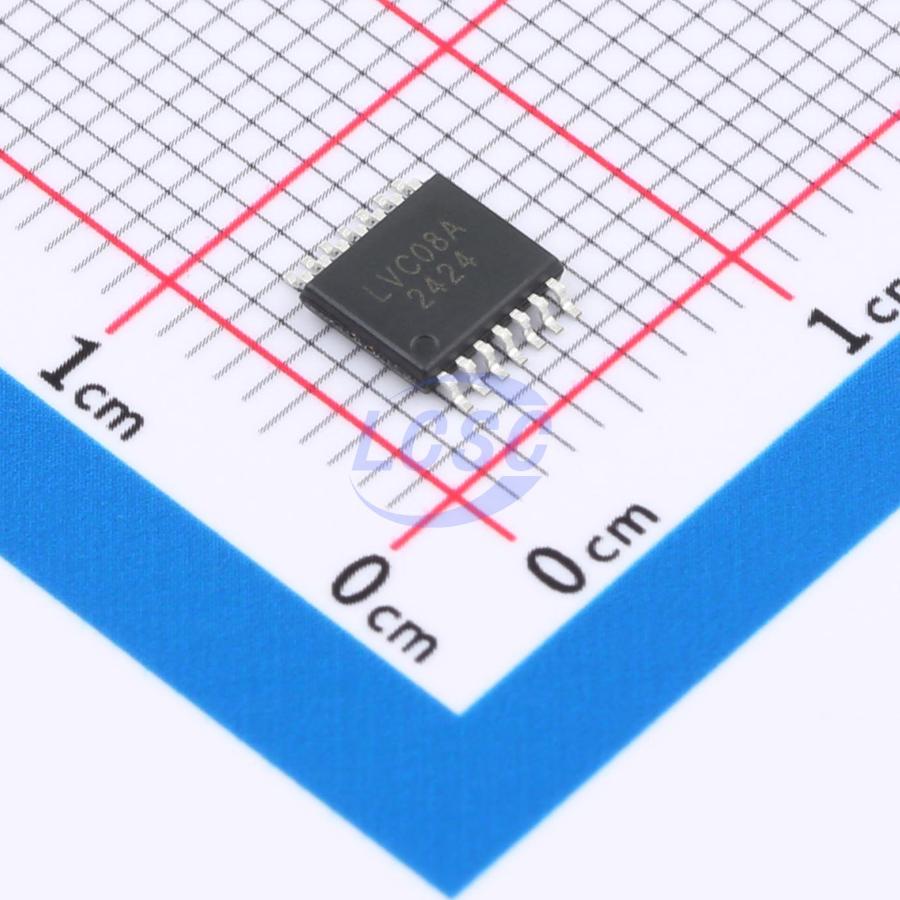

EM74LVC08APW
Schmitt trigger 1.65V~5.5V 5ns@5V,15pF 40uA TSSOP-14L Gates and Inverters
TSSOP-14LRoHSActive
Quad 2-input AND gate
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74LVC08APW
- Store part #
- C49188173
- Package / case
- TSSOP-14L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,080 in stock
#C49188173
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.70 | ₹103.50 |
| 50+ | ₹16.26 | ₹813.00 |
| 150+ | ₹14.35 | ₹2,152.50 |
| 500+ | ₹11.97 | ₹5,985.00 |
| 3,000+ | ₹10.93 | ₹32,790.00 |
| 6,000+ | ₹10.28 | ₹61,680.00 |
5 × ₹20.70
₹103.50
excl. GST
₹122.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74LVC08APW
₹103.50 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 800mV
- Propagation Delay
- 5ns@5V,15pF
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.226 g
Overview
This device is a quad 2-input AND gate whose inputs can be driven by 3.3V or 5V devices, making it suitable for use as a level translator in mixed 3.3V/5V applications. Schmitt-trigger action on all inputs makes the circuit tolerant of slower input rise and fall times. The device is fully specified for partial-power-down applications using I_OFF; the I_OFF circuit disables the outputs, preventing potentially damaging backflow current from passing through the device when it is powered down.
Key features
- Wide supply voltage range: 1.2 V ~ 5.5 V
- Input overvoltage tolerance up to 5.5 V
- CMOS low power consumption
- Latch-up performance exceeds 250 mA
- Direct TTL-level interface compatible
- I_OFF circuit for partial power-down mode operation
- JEDEC compliant: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 6000 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
