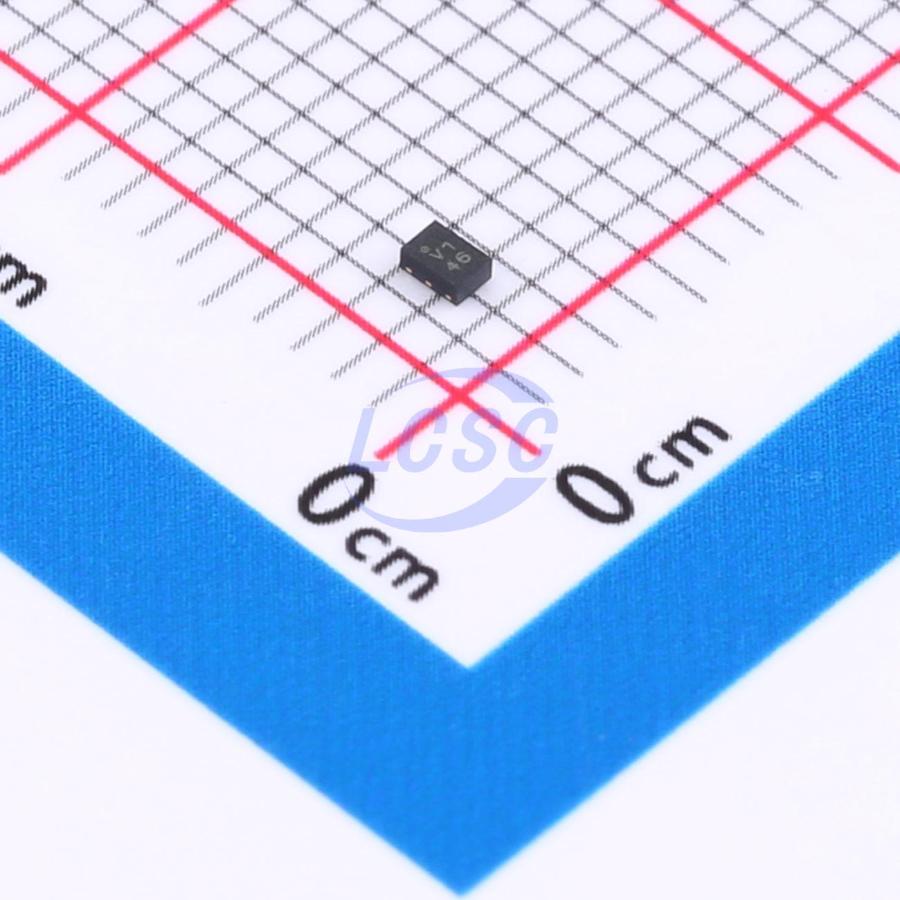

EM74LVC1G00GM

Schmitt trigger 1.65V~5.5V 3.8ns@5.5V,50pF 4uA DFN-6(1x1.5) Gates and Inverters

DFN-6(1x1.5)RoHSActive

Single 2-input NAND gate

Manufacturer: EnergyMath
Manufacturer part #: EM74LVC1G00GM
Store part #: C49188164
Package / case: DFN-6(1x1.5)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,980 in stock

#C49188164

Stock & price checked 26 h ago

Quantity	Unit price	Pack price
5+	₹14.57	₹72.85
50+	₹11.52	₹576.00
150+	₹9.99	₹1,498.50
500+	₹8.85	₹4,425.00
3,000+	₹7.94	₹23,820.00
6,000+	₹7.47	₹44,820.00

Quantity (min 5, multiples of 5)

5 × ₹14.57

₹72.85

excl. GST

₹85.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

EM74LVC1G00GM

₹72.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 3.8ns@5.5V,50pF
Input Logic Level - Low: 700mV;800mV
Input Logic Level - High: 1.7V;2V
Features: Overvoltage-tolerant input;Local shutdown mode
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 24mA
Number of Channels: 1;2
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.026 g

Overview

The EM74LVC1G00 is a single 2-input NAND gate. Its inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs enables the circuit to tolerate slower input rise and fall times. The device is fully specified for partial-power-down applications using IOFF. The IOFF circuit disables the outputs, preventing potentially destructive backflow current when the device is powered down.

Key features

Wide supply voltage range: 1.65V~5.5V
Input overvoltage tolerance up to 5.5V
High noise immunity
CMOS low power consumption
IOFF circuitry for partial power-down mode operation
±24mA output drive capability (VCC=3.0V)
Latch-up performance exceeds 100mA
Direct TTL-level interface compatible
Compliant with JEDEC standards: JESD8-7 (1.65V~1.95V), JESD8-5 (2.3V~2.7V), JESD8C (2.7V~3.6V), JESD36 (4.5V~5.5V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000V; MM JESD22-A115C Class C exceeds 550V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
Multiple package options
