EnergyMath

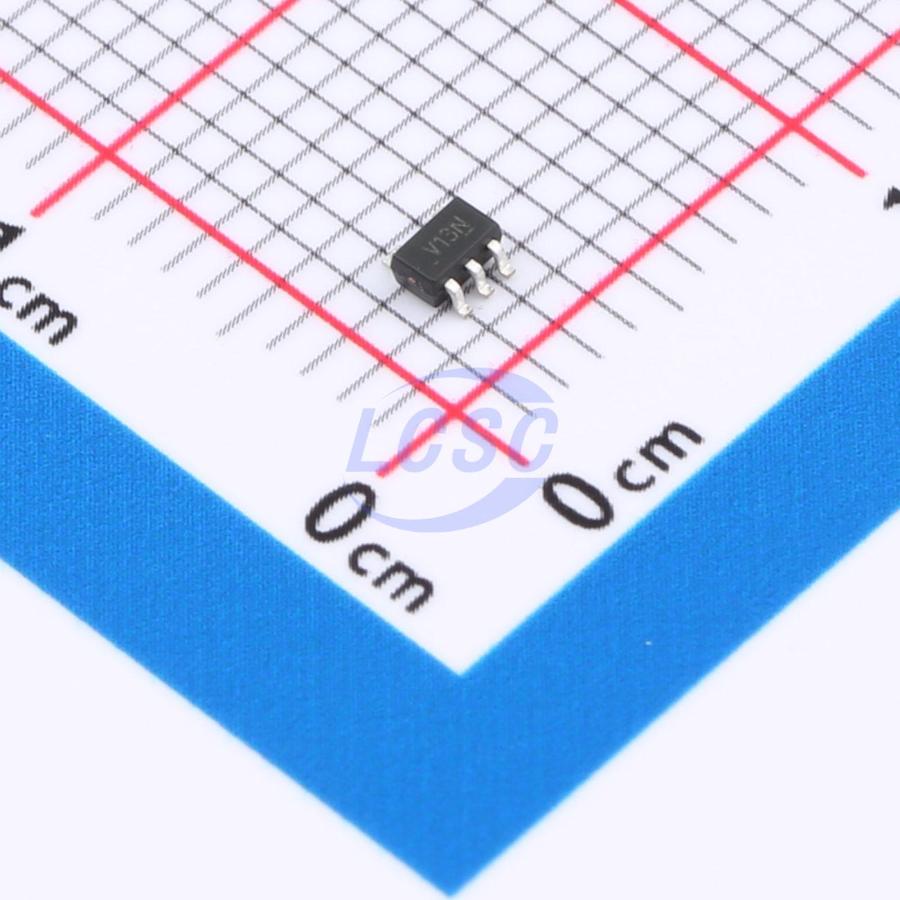

EM74LVC1G00GW

Schmitt trigger 1.65V~5.5V 6ns@3.3V,50pF 4uA SOT-353 Gates and Inverters

SOT-353RoHSActive

Single 2-input NAND gate

Manufacturer: EnergyMath
Manufacturer part #: EM74LVC1G00GW
Store part #: C49188162
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,800 in stock

#C49188162

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.26	₹72.60
100+	₹5.74	₹574.00
300+	₹4.97	₹1,491.00
3,000+	₹4.41	₹13,230.00
6,000+	₹3.96	₹23,760.00
9,000+	₹3.73	₹33,570.00

Quantity (min 10, multiples of 10)

10 × ₹7.26

₹72.60

excl. GST

₹85.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

EM74LVC1G00GW

₹72.60 for 10 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 6ns@3.3V,50pF
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Features: Local shutdown mode;Overvoltage-tolerant input
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.7V;2V
Output Logic Level - High: 1.2V;1.9V;2.2V;2.3V;3.8V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 24mA
Number of Channels: 1;2
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.04 g

Overview

The EM74LVC1G00 is a single 2-input NAND gate. Its inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs enables the circuit to tolerate slower input rise and fall times. The device is fully specified for partial-power-down applications using IOFF. The IOFF circuit disables the outputs, preventing potentially destructive backflow current when the device is powered down.

Key features

Wide supply voltage range: 1.65V~5.5V
Input overvoltage tolerance up to 5.5V
High noise immunity
CMOS low power consumption
IOFF circuitry for partial power-down mode operation
±24mA output drive capability (VCC=3.0V)
Latch-up performance exceeds 100mA
Direct TTL-level interface compatible
Compliant with JEDEC standards: JESD8-7 (1.65V~1.95V), JESD8-5 (2.3V~2.7V), JESD8C (2.7V~3.6V), JESD36 (4.5V~5.5V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000V; MM JESD22-A115C Class C exceeds 550V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
Multiple package options
