EnergyMath

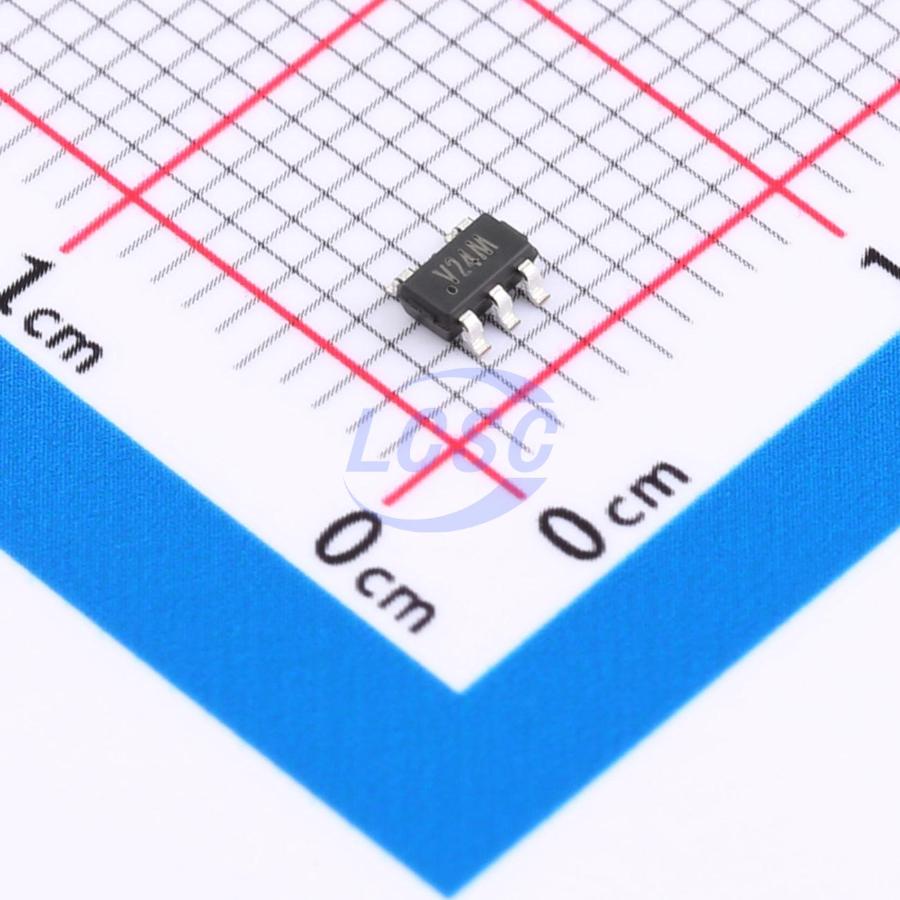

EM74LVC1G02GV

Schmitt trigger 1.65V~5.5V 2.6ns@5V,50pF 4uA SOT-23-5L Gates and Inverters

SOT-23-5LRoHSActive

Manufacturer: EnergyMath
Manufacturer part #: EM74LVC1G02GV
Store part #: C49188159
Package / case: SOT-23-5L
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C49188159

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.29	₹72.90
100+	₹5.76	₹576.00
300+	₹5.00	₹1,500.00
3,000+	₹4.43	₹13,290.00
6,000+	₹3.97	₹23,820.00
9,000+	₹3.74	₹33,660.00

Quantity (min 10, multiples of 10)

10 × ₹7.29

₹72.90

excl. GST

₹86.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

EM74LVC1G02GV

₹72.90 for 10 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 2.6ns@5V,50pF
Output Logic Level - Low: 800mV
Features: Local shutdown mode;Overvoltage-tolerant input
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.7V;2V
Output Logic Level - High: 1.2V;1.9V;2.2V;2.3V;3.8V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 24mA
Number of Channels: 1;2
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.068 g

Overview

The EM74LVC1G02 is a single 2-input NOR gate. Its inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as level translators in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs makes the circuit tolerant of slower input rise and fall times. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the outputs, preventing potentially damaging reverse current flow through the device when it is powered down.

Key features

Wide supply voltage range: 1.65 V to 5.5 V
Overvoltage-tolerant inputs up to 5.5 V
High noise immunity
CMOS low power consumption
IOFF circuitry supports partial power-down mode operation
Output drive capability ±24 mA (VCC = 3.0 V)
Latch-up performance exceeds 100 mA
Direct TTL-level interface
JEDEC compliant: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V, MM JESD22-A115C Class C exceeds 550 V, CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
Multiple package options
