EM74LVC1G08GW

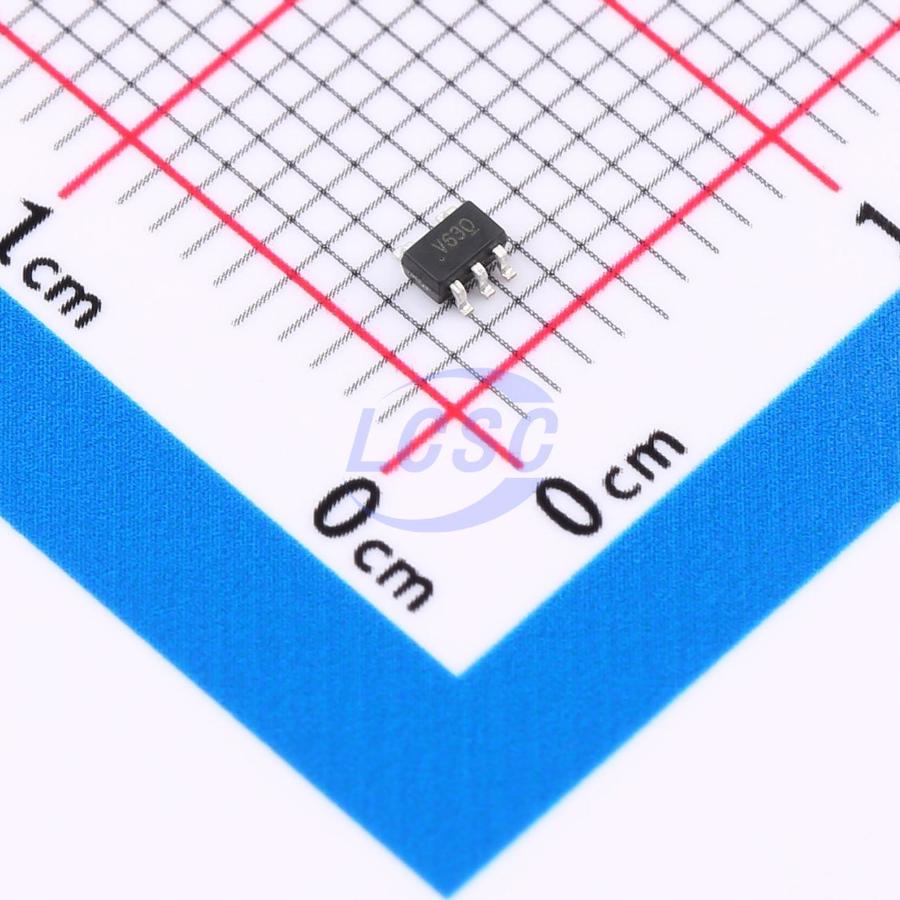

Schmitt trigger 1.65V~5.5V 3.8ns@5.5V,50pF 4uA SOT-353 Gates and Inverters

SOT-353RoHSActive

Single 2-input AND gate

Manufacturer: EnergyMath
Manufacturer part #: EM74LVC1G08GW
Store part #: C49188144
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,520 in stock

#C49188144

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹5.58	₹55.80
100+	₹4.42	₹442.00
300+	₹3.84	₹1,152.00
3,000+	₹3.40	₹10,200.00
6,000+	₹3.04	₹18,240.00
9,000+	₹2.87	₹25,830.00

Quantity (min 10, multiples of 10)

10 × ₹5.58

₹55.80

excl. GST

₹65.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

EM74LVC1G08GW

₹55.80 for 10 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 3.8ns@5.5V,50pF
Features: Local shutdown mode;Overvoltage-tolerant input
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 24mA
Number of Channels: 1;2
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.032 g

Overview

The EM74LVC1G08 is a single 2-input AND gate. Its inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V applications. All inputs incorporate Schmitt-trigger action, making the circuit tolerant of slower input rise and fall times. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the outputs, preventing damaging backflow current when the device is powered down.

Key features

Wide supply voltage range: 1.65 V ~ 5.5 V
High noise immunity
±24 mA output drive capability (VCC = 3.0V)
CMOS low power consumption
Direct TTL-level interface compatible
Over-voltage tolerant inputs up to 5.5 V
IOFF circuitry supports partial power-down mode operation
Latch-up performance exceeds 100 mA
JEDEC standard compliant: JESD8-7 (1.65 V ~ 1.95 V), JESD8-5 (2.3 V ~ 2.7 V), JESD8C (2.7 V ~ 3.6 V), JESD36 (4.5 V ~ 5.5 V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; MM JESD22-A115C Class C exceeds 550 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
Multiple package options
