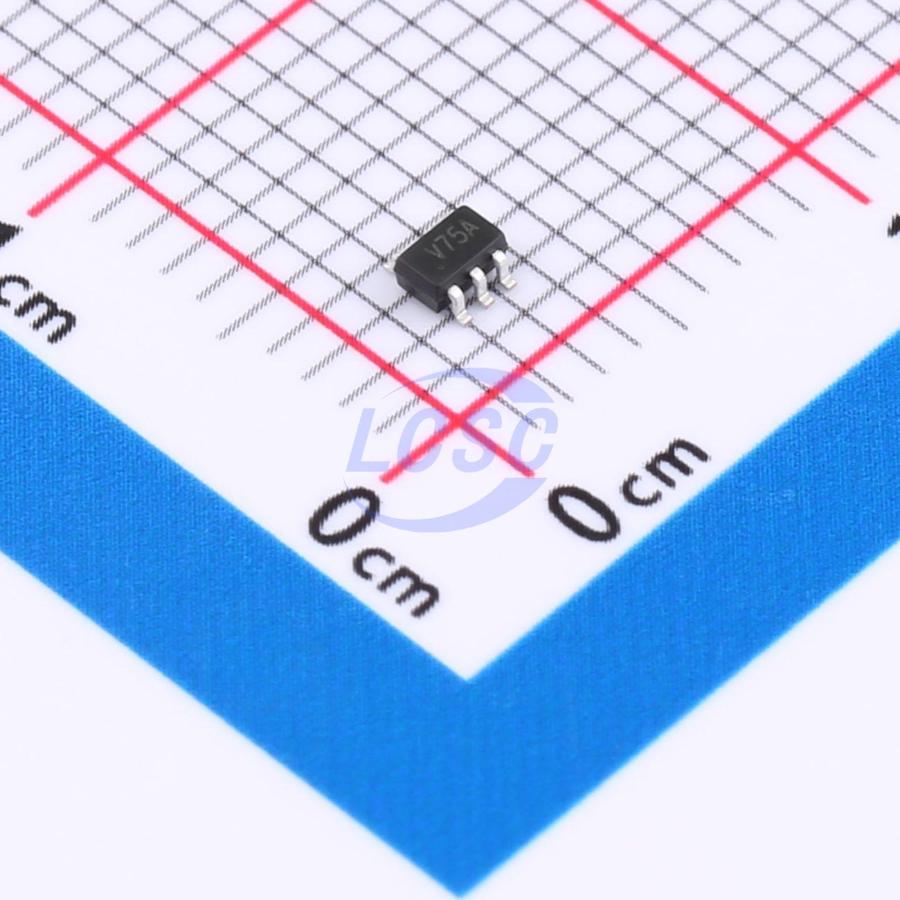

EnergyMath

EM74LVC1G09GW

AND Gate IC 2 Channel SOT-353

SOT-353RoHSActive

2-input AND gate; open drain

Manufacturer: EnergyMath
Manufacturer part #: EM74LVC1G09GW
Store part #: C49188141
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C49188141

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.26	₹72.60
100+	₹5.74	₹574.00
300+	₹4.97	₹1,491.00
3,000+	₹4.41	₹13,230.00
6,000+	₹3.96	₹23,760.00
9,000+	₹3.73	₹33,570.00

Quantity (min 10, multiples of 10)

10 × ₹7.26

₹72.60

excl. GST

₹85.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

EM74LVC1G09GW

₹72.60 for 10 + GST

Specifications

Input Type: Schmitt trigger
output type: Open-drain
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;450mV;600mV;700mV;800mV
Propagation Delay: 3.8ns@5.5V,50pF
Features: Local shutdown mode
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 4uA
Number of Channels: 2;2
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.033 g

Overview

EM74LVC1G09 is a single 2-input AND gate with open-drain output. Its inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs makes the circuit tolerant of slower input rise and fall times. The device is fully specified for partial power-down applications using I_OFF. The I_OFF circuit disables the output, preventing potentially damaging backflow current when the device is powered down.

Key features

Wide supply voltage range: 1.65 V ~ 5.5 V
5V-tolerant outputs for interfacing with 5V logic
High noise immunity
CMOS low power consumption
Open-drain output
Inputs accept voltages up to 5V
±24 mA output drive capability (V_CC = 3.0V)
Latch-up performance exceeds 100 mA
Direct TTL-level interface compatible
Compliant with JEDEC standards: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8-B/JESD36 (2.7 V to 3.6 V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V, MM JESD22-A115C Class C exceeds 550 V, CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
Multiple package options
2-input AND gate with open-drain output
