EM74LVC1G14GW

Schmitt trigger 1.65V~5.5V 7.5ns@3.3V,50pF 4uA 1 SOT-353 Gates and Inverters

SOT-353RoHSActive

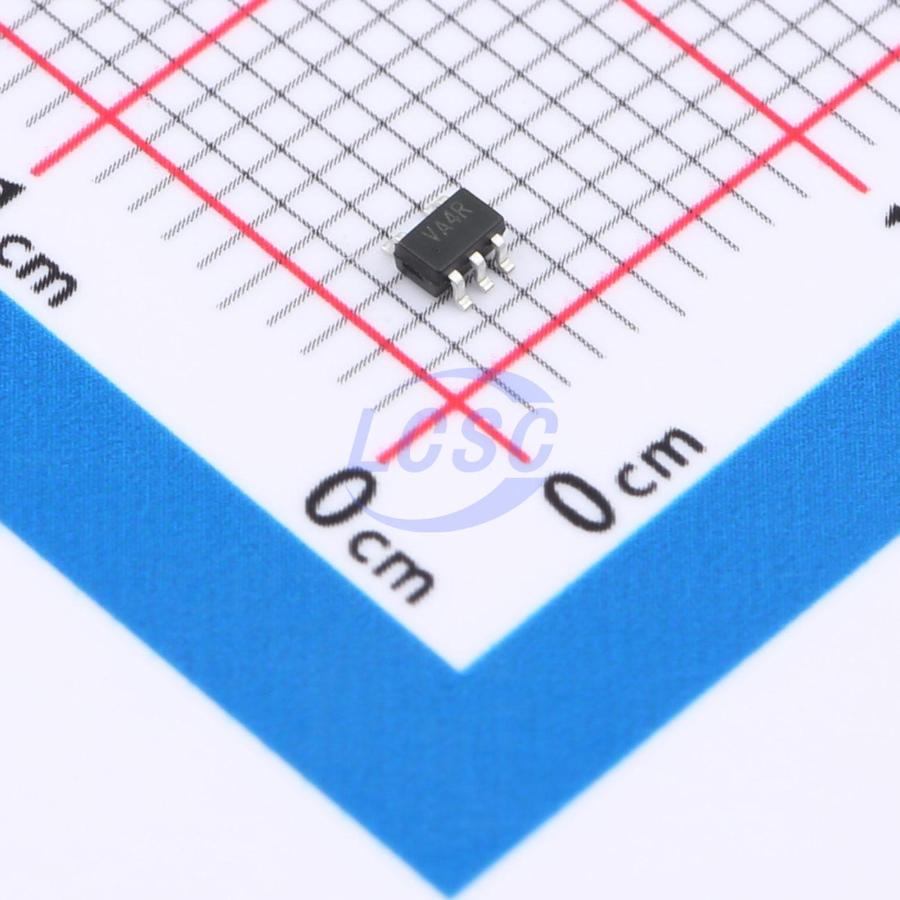

Single Schmitt trigger inverter

Manufacturer: EnergyMath
Manufacturer part #: EM74LVC1G14GW
Store part #: C49188128
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,470 in stock

#C49188128

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.89	₹58.90
100+	₹4.66	₹466.00
300+	₹4.04	₹1,212.00
3,000+	₹3.57	₹10,710.00
6,000+	₹3.20	₹19,200.00
9,000+	₹3.03	₹27,270.00

Quantity (min 10, multiples of 10)

10 × ₹5.89

₹58.90

excl. GST

₹69.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

EM74LVC1G14GW

₹58.90 for 10 + GST

Specifications

output type: Push-pull
Logic Family: 74LVC
Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;700mV;450mV;600mV;800mV
Propagation Delay: 7.5ns@3.3V,50pF
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 950mV;1.7V;1.9V;2V;3.4V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 24mA
Number of Channels: 1
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.032 g

Overview

The EM74LVC1G14 is a single inverter with Schmitt-trigger input. The input can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. The device is fully specified for partial power-down applications using I<sub>OFF</sub>. The I<sub>OFF</sub> circuitry disables the output, preventing potentially damaging backflow current through the device when it is powered down.

Key features

Wide supply voltage range: 1.65 V to 5.5 V
Overvoltage-tolerant inputs up to 5.5 V
High noise immunity
Output drive capability: ±24 mA (VCC = 3.0 V)
CMOS low power consumption
Latch-up performance exceeds 100 mA
Direct TTL-level interface compatible
IOFF circuitry enables partial power-down mode operation
Unlimited rise and fall times
Compliant with JEDEC standards: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; MM JESD22-A115C Class C exceeds 550 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
Multiple package options
