EnergyMathDatasheet (PDF)

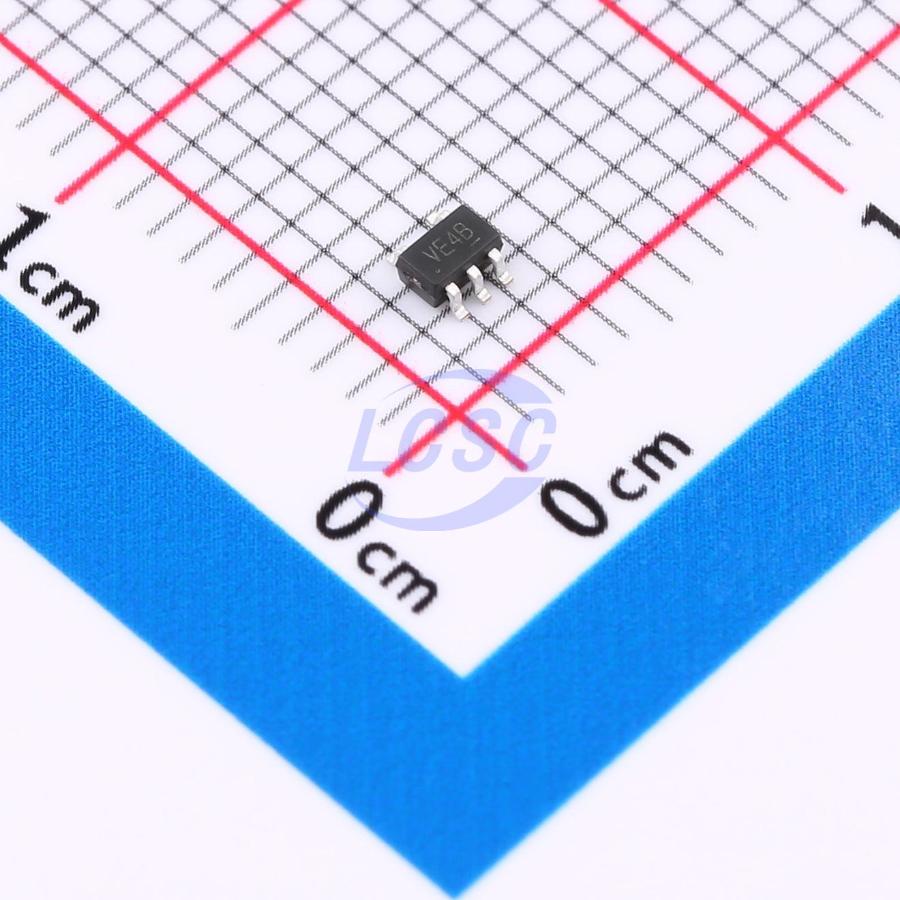

EM74LVC1G32GW
Schmitt trigger 1.65V~5.5V 3.8ns@5.5V,50pF 4uA SOT-353 Gates and Inverters
SOT-353RoHSActive
Single 2-input OR gate
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74LVC1G32GW
- Store part #
- C49188119
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,470 in stock
#C49188119
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.05 | ₹60.50 |
| 100+ | ₹4.79 | ₹479.00 |
| 300+ | ₹4.15 | ₹1,245.00 |
| 3,000+ | ₹3.68 | ₹11,040.00 |
| 6,000+ | ₹3.29 | ₹19,740.00 |
| 9,000+ | ₹3.11 | ₹27,990.00 |
10 × ₹6.05
₹60.50
excl. GST
₹71.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74LVC1G32GW
₹60.50 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 3.8ns@5.5V,50pF
- Output Logic Level - Low
- 800mV
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 2V;3.4V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The EM74LVC1G32 is a single 2-input OR gate. Its inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. Schmitt-trigger inputs on all pins make the circuit tolerant of slower input rise and fall times. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing potentially harmful reverse current flow through the device when it is powered down.
Key features
- Wide supply voltage range: 1.65 V to 5.5 V
- Input overvoltage tolerance up to 5.5 V
- High noise immunity
- CMOS low power consumption
- Ioff circuitry enables partial power-down mode operation
- ±24 mA output drive capability (VCC = 3.0 V)
- Latch-up performance exceeds 100 mA
- Direct TTL-level interface compatible
- JEDEC standard compliant: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8-B/JESD36 (2.7 V to 3.6 V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V, MM JESD22-A115C Class C exceeds 550 V, CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
