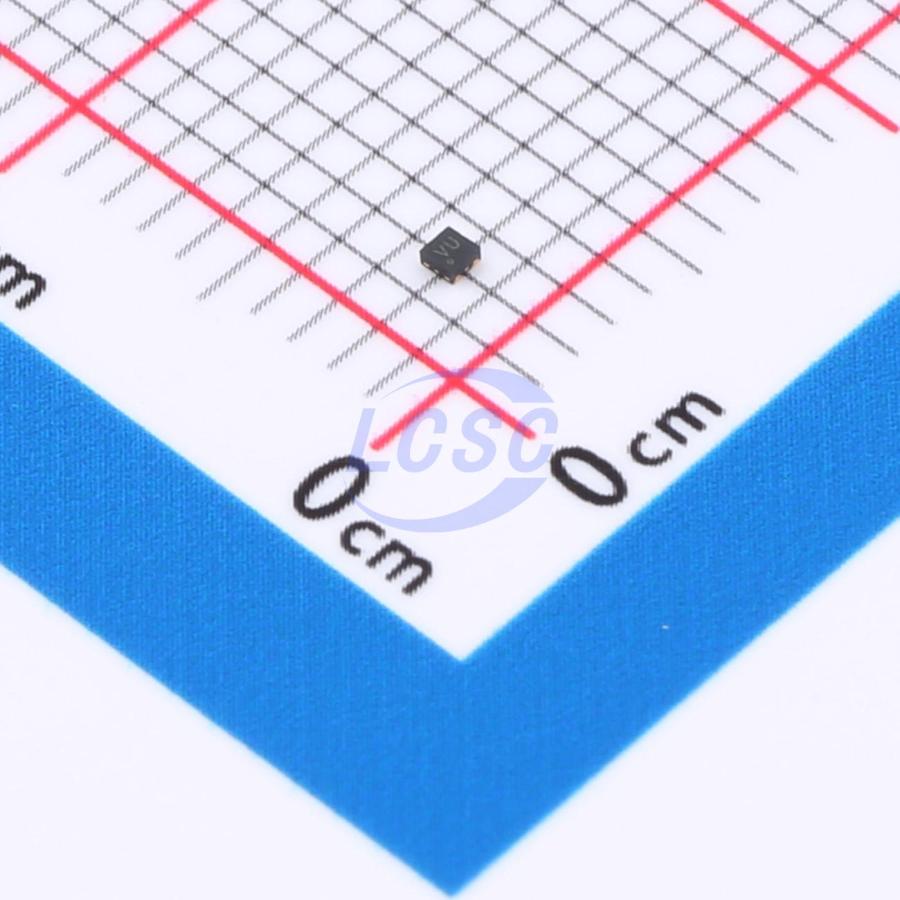

EM74LVC1GU04GX
Schmitt trigger 1.65V~5.5V 2ns@5.5V,50pF 4uA 1 DFN-4L(0.8x0.8) Gates and Inverters
DFN-4L(0.8x0.8)RoHSActive
Unbuffered inverter
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74LVC1GU04GX
- Store part #
- C49188108
- Package / case
- DFN-4L(0.8x0.8)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,760 in stock
#C49188108
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.70 | ₹67.70 |
| 10+ | ₹59.88 | ₹598.80 |
| 30+ | ₹55.98 | ₹1,679.40 |
| 100+ | ₹52.28 | ₹5,228.00 |
| 500+ | ₹49.90 | ₹24,950.00 |
| 1,000+ | ₹48.61 | ₹48,610.00 |
1 × ₹67.70
₹67.70
excl. GST
₹79.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74LVC1GU04GX
₹67.70 for 1 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74LVC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;700mV;450mV;600mV;800mV
- Propagation Delay
- 2ns@5.5V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 950mV;1.7V;1.9V;2V;3.4V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
The EM74LVC1GU04 is a single unbuffered inverter. Its input can be driven by 3.3 V or 5.5 V devices. This feature allows the device to be used in mixed 3.3 V and 5 V voltage environments. All inputs incorporate Schmitt-trigger action, making the circuit tolerant of slower input rise and fall times.
Key features
- Wide supply voltage range: 1.65 V ~ 5.5 V
- Input overvoltage tolerance up to 5.5 V
- High noise immunity
- CMOS low power consumption
- Output drive capability ±24 mA (at VCC = 3.0 V)
- Latch-up performance exceeds 100 mA
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V
- MM JESD22-A115C Class C exceeds 550 V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
- Unbuffered inverter
