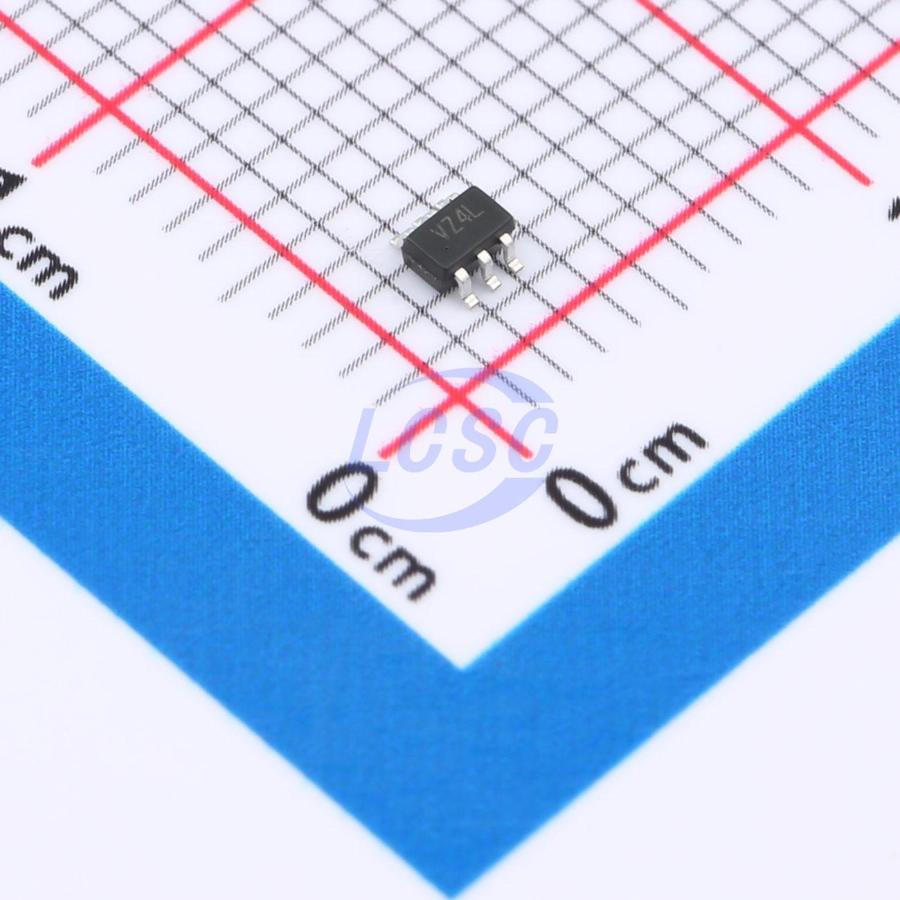

EM74LVC2G06GW

Schmitt trigger 1.65V~5.5V 3ns@5.5V,50pF 4uA 2 SOT-363 Gates and Inverters

SOT-363RoHSActive

Inverters with open-drain outputs

Manufacturer: EnergyMath
Manufacturer part #: EM74LVC2G06GW
Store part #: C49188103
Package / case: SOT-363
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,980 in stock

#C49188103

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.55	₹75.50
100+	₹5.98	₹598.00
300+	₹5.19	₹1,557.00
3,000+	₹4.59	₹13,770.00
6,000+	₹4.11	₹24,660.00
9,000+	₹3.88	₹34,920.00

Quantity (min 10, multiples of 10)

10 × ₹7.55

₹75.50

excl. GST

₹89.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

EM74LVC2G06GW

₹75.50 for 10 + GST

Specifications

output type: Open-drain
Logic Family: 74LVC
Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 800mV
Propagation Delay: 3ns@5.5V,50pF
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 4uA
Number of Channels: 2
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.033 g

Overview

The EM74LVC2G06 is a dual inverter with open-drain outputs. Its inputs can be driven by 3.3 V or 5 V devices. This feature allows the device to be used as a level translator in mixed 3.3 V and 5 V environments. Schmitt-trigger action on all inputs makes the circuit tolerant of slower input rise and fall times. The device is fully specified for partial power-down applications using I<sub>OFF</sub>. The I<sub>OFF</sub> circuit disables the outputs, preventing potentially destructive backflow current when the device is powered down.

Key features

Wide supply voltage range: 1.65 V to 5.5 V
Input overvoltage tolerance up to 5.5 V
High noise immunity
Low-power CMOS
IOFF circuitry for partial power-down operation
24 mA output drive capability (VCC = 3.0 V)
Latch-up performance exceeds 100 mA
Direct interface with TTL levels
JEDEC compliant: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
ESD protection: Human Body Model per ANSI/ESDA/JEDEC JS-001 Class 3B, exceeds 8000 V; Machine Model per JESD22-A115C Class C, exceeds 550 V; Charged Device Model per ANSI/ESDA/JEDEC JS-002 Class C3, exceeds 2000 V
Multiple package options
