PANASONICDatasheet (PDF)

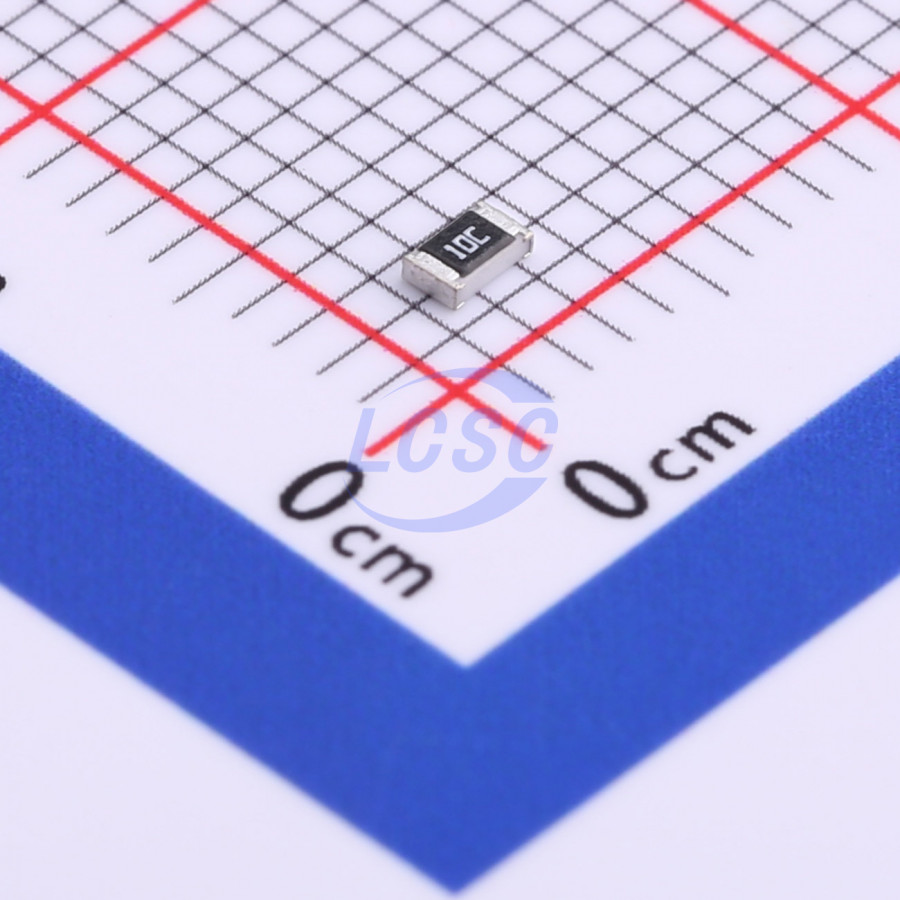

ERJL06KF10CV
250mW 100mΩ Thick Film Resistor ±100ppm/℃ ±1% 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 100mΩ ±1% 0.25W 0805
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJL06KF10CV
- Store part #
- C488204
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C488204
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.38 | ₹171.90 |
| 50+ | ₹27.89 | ₹1,394.50 |
| 150+ | ₹25.10 | ₹3,765.00 |
| 500+ | ₹21.62 | ₹10,810.00 |
| 2,500+ | ₹16.68 | ₹41,700.00 |
| 5,000+ | ₹15.76 | ₹78,800.00 |
5 × ₹34.38
₹171.90
excl. GST
₹202.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERJL06KF10CV
₹171.90 for 5 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 100mΩ
- Operating Temperature
- -55℃~+125℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Key features
- Current sensing resistors
- Compact and lightweight
- Low resistance and high accuracy achieved through proprietary thick-film resistive elements and special electrode structure
- Compatible with reflow and wave soldering
- High power via dual-sided resistive element structure that suppresses temperature rise: ERJ2LW, 3LW, 6LW, 2BW, 3BW, 6BW, 8BW, 6CW, 8CW
- Low TCR: ±75×10⁻⁶/K (ERJ6CW, ERJ8CW)
- Low resistance value: down to 5 mΩ for thick-film resistors (ERJ3LW, 6LW)
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2144
- AEC-Q200 compliant
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CRM0805-FX-R100ELF#C4053629BOURNS · 0805 | BOURNS | 0805 | 635 | ₹33.68 · 635 in stock | View |
 | RCWE0805R100FKEA#C2073518VISHAY · 0805 | VISHAY | 0805 | 1,390 | ₹15.51 · 1,390 in stock | View |
 | CRM0805AFX-R100ELF#C2088797BOURNS · 0805 | BOURNS | 0805 | 1 | ₹47.58 · 1 in stock | View |
 | PT0805FR-7W0R1L#C858723YAGEO · 0805 | YAGEO | 0805 | 7,040 | ₹5.25 · 7,040 in stock | View |
 | CSR0805FTR100#C346794SEI(Stackpole Electronics Inc.) · 0805 | SEI(Stackpole Electronics Inc.) | 0805 | 565 | ₹14.42 · 565 in stock | View |
