YAGEODatasheet (PDF)

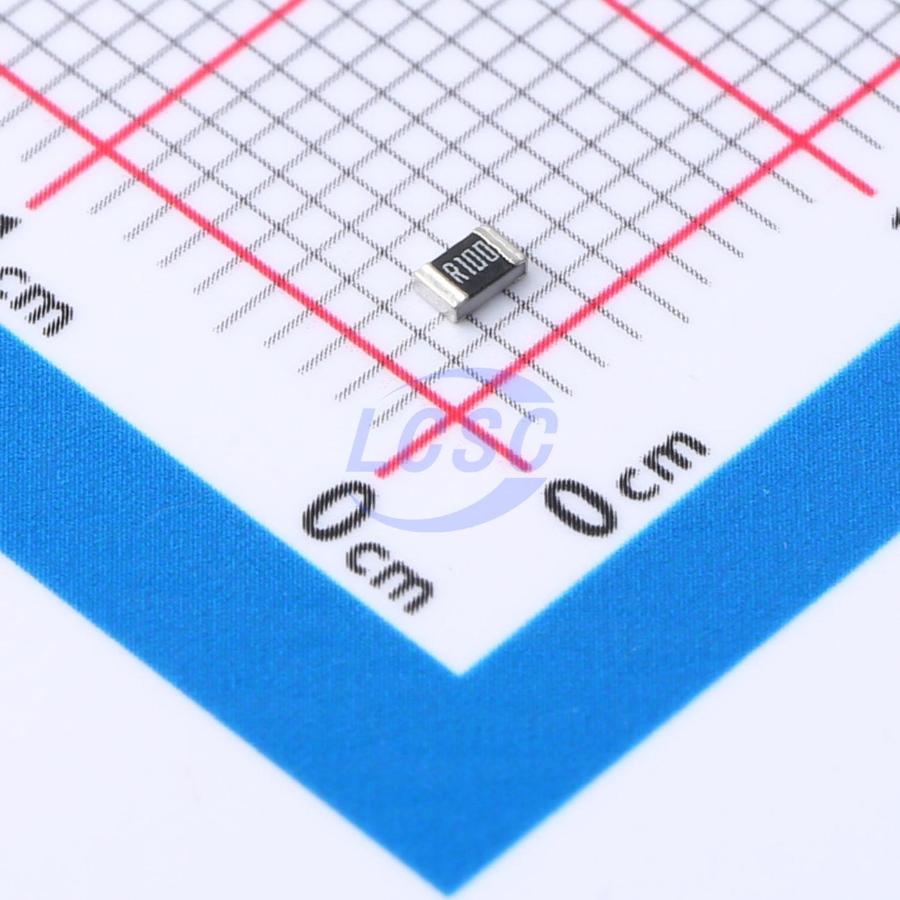

PT0805FR-7W0R1L
250mW 100mΩ Thick Film Resistor ±100ppm/℃ ±1% 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 0.1Ω ±1% 250mW 0805
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0805FR-7W0R1L
- Store part #
- C858723
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,040 in stock
#C858723
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.25 | ₹105.00 |
| 200+ | ₹4.19 | ₹838.00 |
| 600+ | ₹3.61 | ₹2,166.00 |
| 5,000+ | ₹3.25 | ₹16,250.00 |
| 10,000+ | ₹2.95 | ₹29,500.00 |
| 20,000+ | ₹2.79 | ₹55,800.00 |
20 × ₹5.25
₹105.00
excl. GST
₹123.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT0805FR-7W0R1L
₹105.00 for 20 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 100mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RCWE0805R100FKEA#C2073518VISHAY · 0805 | VISHAY | 0805 | 1,390 | ₹15.51 · 1,390 in stock | View |
 | CRM0805AFX-R100ELF#C2088797BOURNS · 0805 | BOURNS | 0805 | 1 | ₹47.58 · 1 in stock | View |
 | CRM0805-FX-R100ELF#C4053629BOURNS · 0805 | BOURNS | 0805 | 635 | ₹33.68 · 635 in stock | View |
 | ERJL06KF10CV#C488204PANASONIC · 0805 | PANASONIC | 0805 | 45 | ₹34.38 · 45 in stock | View |
 | CSR0805FTR100#C346794SEI(Stackpole Electronics Inc.) · 0805 | SEI(Stackpole Electronics Inc.) | 0805 | 565 | ₹14.42 · 565 in stock | View |
