ElecSuperDatasheet (PDF)

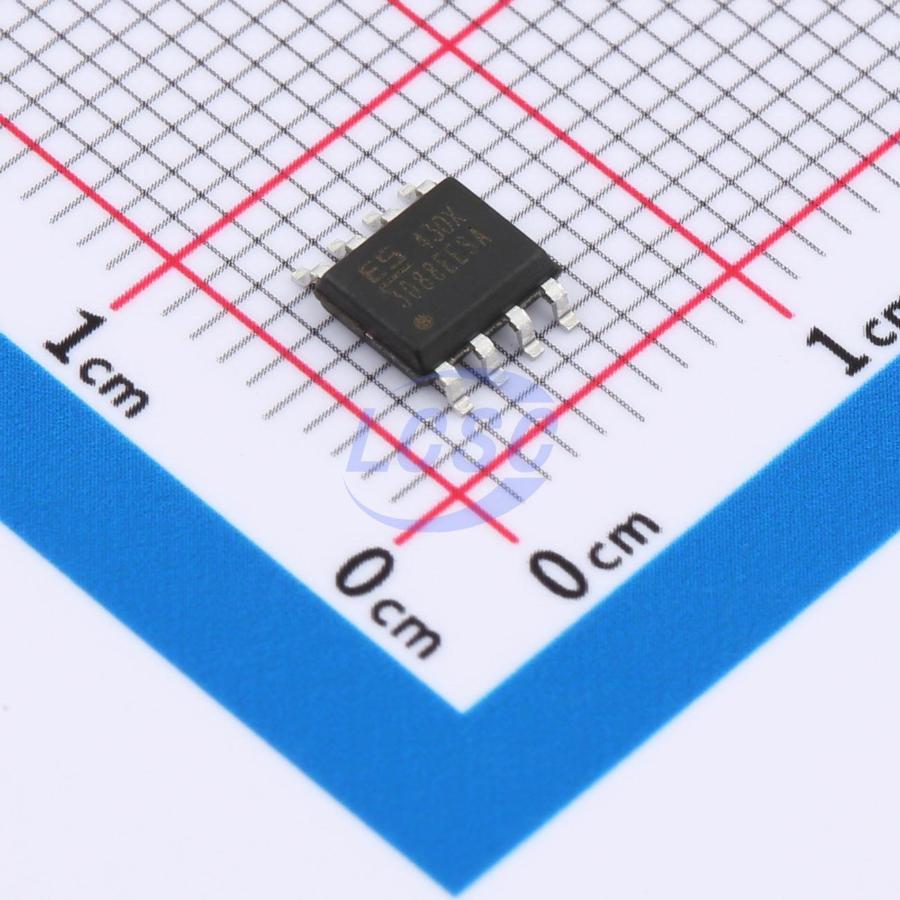

ES8485E-SR
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
IC TRANSCEIVER HALF 1/1 SOP-8
- Manufacturer
- ElecSuper
- Manufacturer part #
- ES8485E-SR
- Store part #
- C42420754
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,714 in stock
#C42420754
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.25 | ₹43.25 |
| 10+ | ₹37.81 | ₹378.10 |
| 30+ | ₹35.43 | ₹1,062.90 |
| 100+ | ₹32.60 | ₹3,260.00 |
| 500+ | ₹31.30 | ₹15,650.00 |
| 1,000+ | ₹30.43 | ₹30,430.00 |
1 × ₹43.25
₹43.25
excl. GST
₹51.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ES8485E-SR
₹43.25 for 1 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 750uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.176 g
Overview
ES8485E-SR is a RS-485 transceiver with 3.0V~5.5V wide supply voltage, bus port ESD protection up to 15kV HBM, bus voltage tolerance of ±15V, half-duplex, low power consumption, fully compliant with TIA/EIA-485 standard. ES8485E-SR includes one driver and one receiver, both of which can be independently enabled or disabled. When both are disabled, both the driver and receiver output high-impedance state. ES8485E-SR features 1/8 unit load, allowing up to 256 ES8485E-SR transceivers to be connected in parallel on the same communication bus. Error-free data transmission up to 2.5Mbps is achievable. ES8485E-SR operates at 3.3V with fail-safe, current limiting protection, and overvoltage protection features.
Applications
- Bus-type networking
- Daisy-chain networking
- Bus port protection
Key features
- 3.0V~5.5V wide supply range, half-duplex
- Bus port ESD protection HBM up to 15kV
- Bus fault protection voltage up to ±15V
- 1/8 unit load, supports up to 256 devices on the bus
- Driver short-circuit output protection
- Receiver open-circuit fail-safe
- Strong noise immunity
- Integrated transient voltage suppression
- Data rate up to 2.5Mbps in electrically noisy environments
- Available in DFN3*3-8, MSOP8/VSSOP8 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ES3088EESA#C41365335ElecSuper · SOP-8 | ElecSuper | SOP-8 | 17,145 | ₹30.09 · 17,145 in stock | View |
 | MAX3485AEASA+T(ES)#C41438293ElecSuper · SOP-8 | ElecSuper | SOP-8 | 1,480 | ₹50.19 · 1,480 in stock | View |
 | SP3072EEN-L/TR(ES)#C41438295ElecSuper · SOP-8 | ElecSuper | SOP-8 | 385 | ₹52.88 · 385 in stock | View |
 | SN65HVD75DR#C41365331ElecSuper · SOP-8 | ElecSuper | SOP-8 | 105 | ₹33.06 · 105 in stock | View |
 | ESGM3085E#C41381885ElecSuper · SOP-8 | ElecSuper | SOP-8 | 300 | ₹22.49 · 300 in stock | View |
