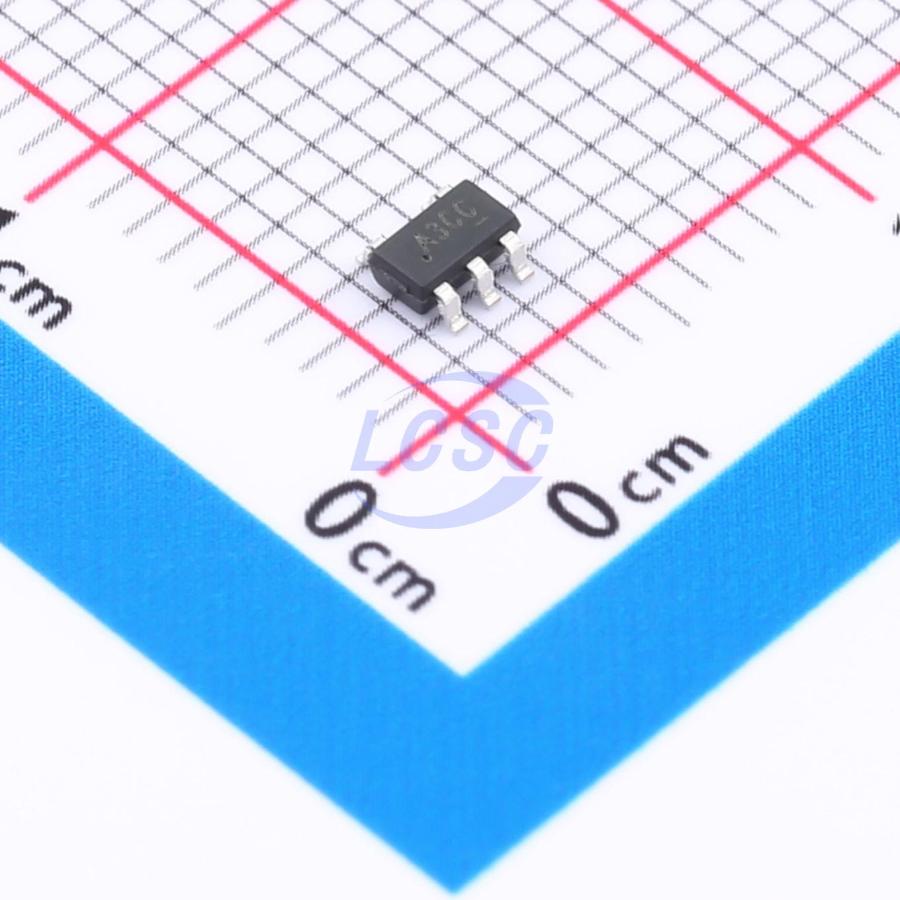

ETA1136S2F

The ETA1136 is a high efficiency synchronous step-up converter that can provide up to 1.5A to a fixed 5V output from a low voltage source. Unlike most step-up converter, it incorporates circuits that disconnect the input from output, during shutdown, short-circuit, output current overloading, or other events when output is higher than the input. This eliminates the need for an external MOSFET and its control circuitry to disconnect the input from output, and provides robust output overload protection.

Applications

• USB OTG for MIDs
• Smartphones
• Mobile back-up Battery Chargers
• Alkaline, NiCd, and NiMh batteries applications
• USB powered devices

Key features

• Output disconnect
• Short-circuit protection
• Fixed 5V/1.5A output
• Output-to-input reverse current protection
• Up to 96% efficiency
• 40μA no-load IQ with light-load PFM mode
• Internal synchronous rectifier
• Current-mode control
• Logic-controlled shutdown and thermal shutdown
• SOT23-5 package
