etasolutionDatasheet (PDF)

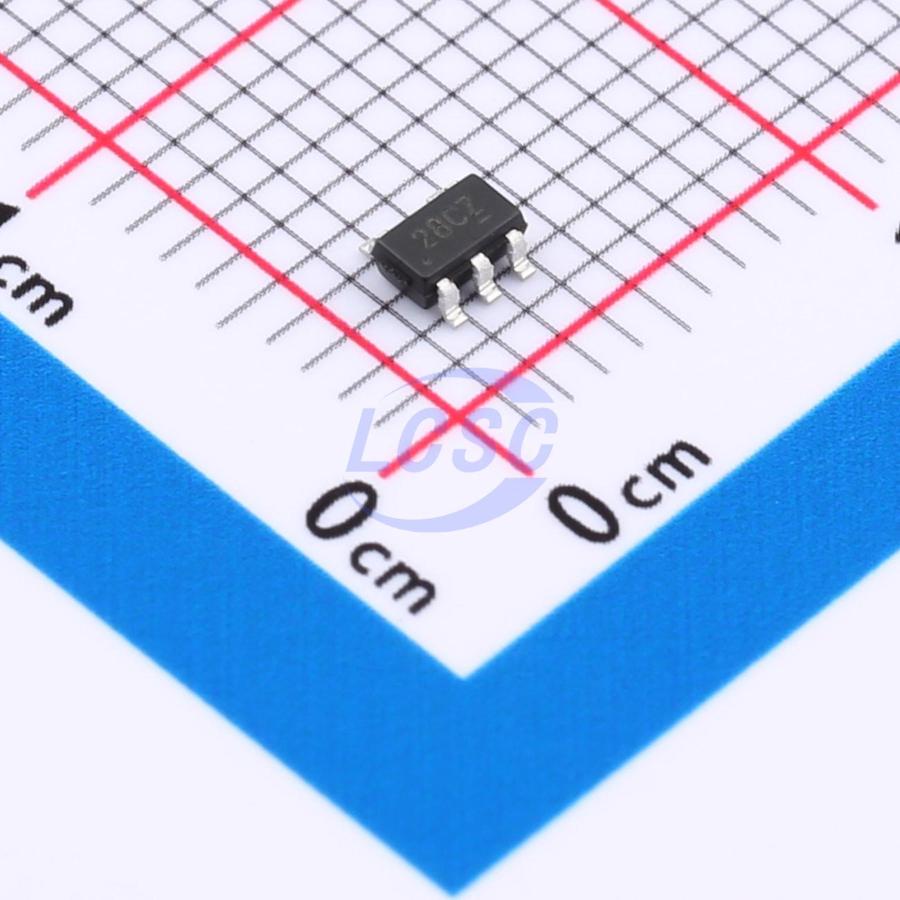

ETA5050V28S2F
2.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
500mA Low Noise, High PSRR Fast Transient Response LDO with Fixed Output Voltage
- Manufacturer
- etasolution
- Manufacturer part #
- ETA5050V28S2F
- Store part #
- C7465497
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,370 in stock
#C7465497
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.82 | ₹48.20 |
| 100+ | ₹4.71 | ₹471.00 |
| 300+ | ₹4.63 | ₹1,389.00 |
| 1,000+ | ₹4.55 | ₹4,550.00 |
10 × ₹4.82
₹48.20
excl. GST
₹56.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA5050V28S2F
₹48.20 for 10 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 37uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.054 g
Overview
ETA5050 is a fixed output, 500mA low noise and fast transient response low-dropout (LDO) linear voltage regulator with high power-supply rejection ratio (PSRR). Its PSRR can be as high as 70dB with quiescent current is about 35uA. Therefore, ETA5050 is an ideal power supply for noise-sensitive applications such as RF transmissions, cellphones, CMOS sensors and audios etc. ETA5050 is consists of a precise voltage reference, an error amplifier, a compensation network and a low ON-resistance power P-MOSFET. It also integrates many protection circuitries like current limit and over-temperature protection module. ETA5050 is in a tiny SOT2-5 package
Applications
- Set-Top Box
- Cellphone
- Security Camera
Key features
- 500mA output current
- Minimum output voltage as low as 1.0V
- 0.24V dropout voltage for 200mA at Vout = 3.3V
- Low quiescent current 40uA
- <1uA shutdown current
- Excellent Load and Line Transient Response
- High PSRR, 70dB
- Stable with a Wide Range of Ceramic Capacitor
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ETA5055V280DS2F#C42375988etasolution · SOT-23-5 | etasolution | SOT-23-5 | 3,870 | ₹9.13 · 3,870 in stock | View |
