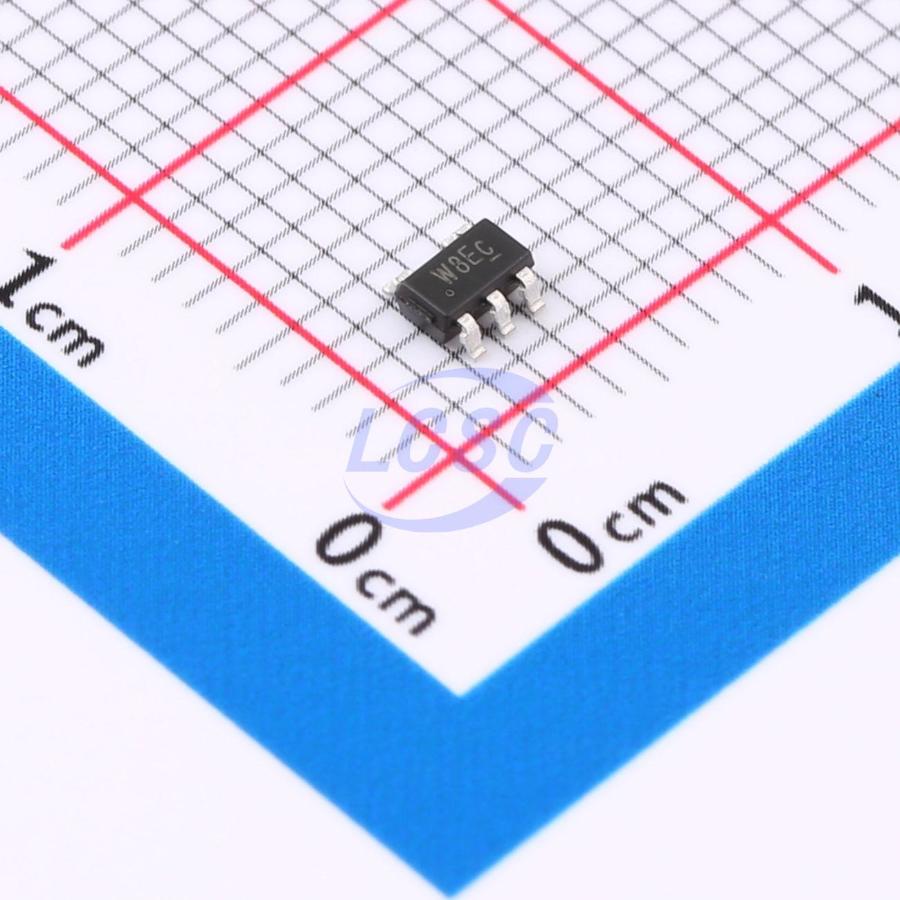

ETA5055V280DS2F
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
SOT-23-5ROHS CompliantActive
Ultra-High PSRR, Ultra-Low lq, 500mA LDO for RF and Analog Circuits
- Manufacturer
- etasolution
- Manufacturer part #
- ETA5055V280DS2F
- Store part #
- C42375988
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,870 in stock
#C42375988
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.13 | ₹91.30 |
| 100+ | ₹7.25 | ₹725.00 |
| 300+ | ₹6.31 | ₹1,893.00 |
| 1,000+ | ₹5.61 | ₹5,610.00 |
| 5,000+ | ₹5.05 | ₹25,250.00 |
| 10,000+ | ₹4.76 | ₹47,600.00 |
10 × ₹9.13
₹91.30
excl. GST
₹107.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA5055V280DS2F
₹91.30 for 10 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 4.5uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.06 g
Overview
ETA5055 is a low dropout linear regulator featuring ultra-high power supply rejection ratio, ultra-low quiescent current, fast startup, and excellent line and load transient response. The PSRR can reach up to 102dB at 1.2V output voltage. Therefore, this device is an ideal power solution for noise-sensitive applications such as RF transmission, mobile phones, CMOS sensors, and audio. ETA5055 is available in DFN1x1-4, DFN2x2-6, SOT23-5, CSP-4, and FOT-4 packages.
Applications
- RF Power
- Smartphones & Tablets
- Cameras, Digital Camcorders & Set-Top Boxes
Key features
- Ultra-high PSRR, up to 102dB (typical 94dB @ 1kHz)
- Ultra-low quiescent current: 4.5μA
- 500mA output current capability
- Ultra-low dropout voltage
- Stable operation with wide-range ceramic capacitors greater than 1μF
- Excellent load and line transient response
- Optional output discharge resistor
- Lead-free, RoHS, and REACH compliant
- Halogen-free "green" device
- MSL: Level 3 for DFN1x1-4, DFN2x2-6, SOT23-5 packages; Level 1 for CSP-4, FOT-4 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ETA5050V28S2F#C7465497etasolution · SOT-23-5 | etasolution | SOT-23-5 | 1,370 | ₹4.82 · 1,370 in stock | View |
