etasolutionDatasheet (PDF)

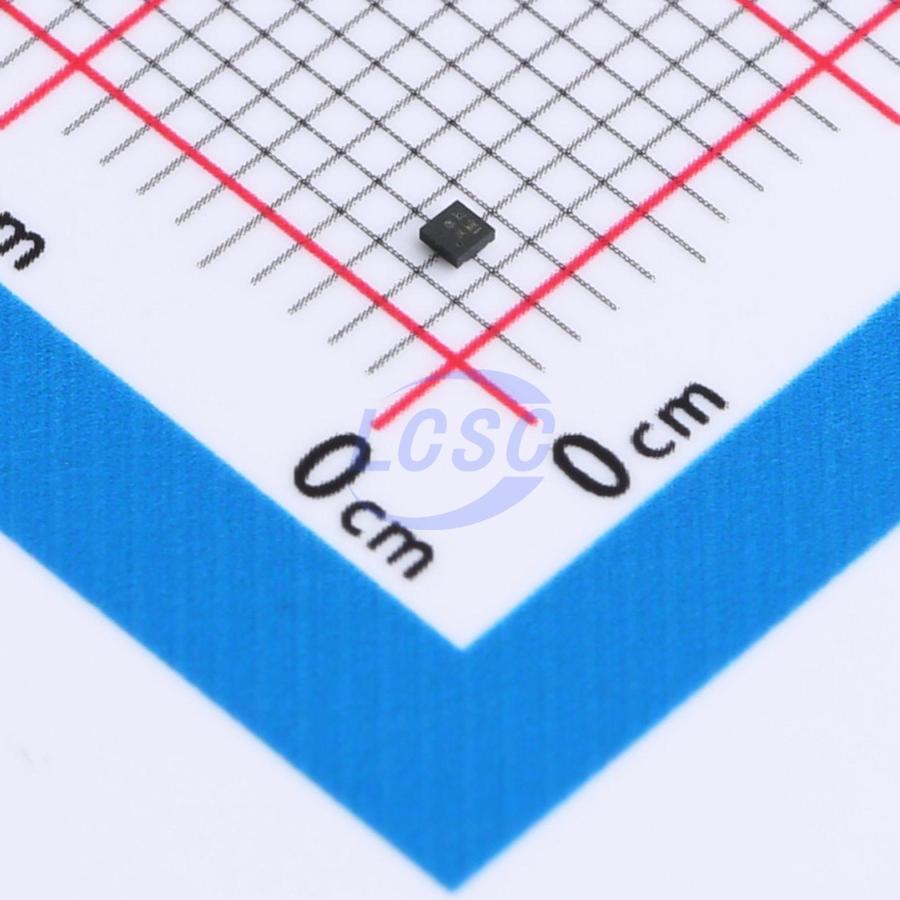

ETA5071V330DF1E
3.3V Positive Fixed DFN1x1-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN1x1-4ROHS CompliantActive
High PSRR, 1uA Ultra-Low lq, 300mA LDO in DFN1x1 and SOT23-5
- Manufacturer
- etasolution
- Manufacturer part #
- ETA5071V330DF1E
- Store part #
- C7471400
- Package / case
- DFN1x1-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,300 in stock
#C7471400
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.84 | ₹54.20 |
| 50+ | ₹8.55 | ₹427.50 |
| 150+ | ₹7.40 | ₹1,110.00 |
| 500+ | ₹6.54 | ₹3,270.00 |
| 2,500+ | ₹5.85 | ₹14,625.00 |
| 5,000+ | ₹5.50 | ₹27,500.00 |
5 × ₹10.84
₹54.20
excl. GST
₹63.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ETA5071V330DF1E
₹54.20 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.083 g
Overview
ETA5071 is a fixed output, low-dropout (LDO) lowpower linear voltage regulator that features ultralow standby current as low as 1uA. It can withstand input voltage up to 7V and delivery 300mA at output. Therefore, ETA5071 is an ideal power supply for low power applications such as IoT, wearables and fingerprint lock, etc. ETA5071 is available in DFN1x1-4 and SOT23-5.
Applications
- NB-IoT module
- Wearables
- Fingerprint lock
Key features
- High PSRR, 69dB at 100Hz, 62dB at 1KHz, 48dB at 1MHz
- 1uA ultra-low Iq
- 300mA output current
- Stable with a Wide Range of Ceramic Cap
- 120mV dropout voltage for 100mA at V₀ₜ = 2.8V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ETA5053V330DF1E#C46682678etasolution · DFN-4-EP(1x1) | etasolution | DFN-4-EP(1x1) | 9,850 | ₹8.86 · 9,850 in stock | View |
