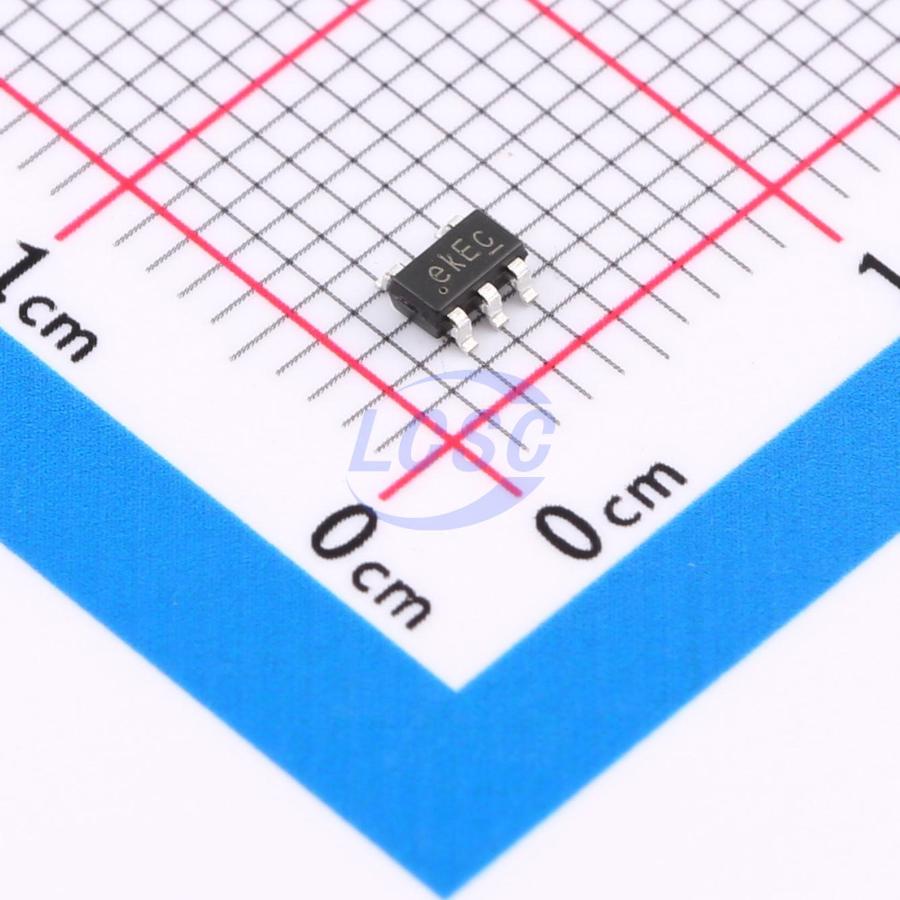

ETA5071V330DS2F
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5ROHS CompliantActive
High PSRR, 1uA Ultra-Low lq, 300mA LDO in DFN1x1 and SOT23-5
- Manufacturer
- etasolution
- Manufacturer part #
- ETA5071V330DS2F
- Store part #
- C29779910
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,335 in stock
#C29779910
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.16 | ₹65.80 |
| 50+ | ₹10.46 | ₹523.00 |
| 150+ | ₹9.10 | ₹1,365.00 |
| 500+ | ₹8.10 | ₹4,050.00 |
| 2,500+ | ₹7.28 | ₹18,200.00 |
| 5,000+ | ₹6.88 | ₹34,400.00 |
5 × ₹13.16
₹65.80
excl. GST
₹77.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA5071V330DS2F
₹65.80 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.059 g
Overview
The ETA5071 is a fixed output voltage, low dropout, low quiescent current linear regulator featuring an ultra-low quiescent current as low as 1µA. The device supports input voltages up to 7V and delivers 300mA output current. As such, the ETA5071 is an ideal power solution for low-power applications including IoT, wearables, and fingerprint locks. The device is available in DFN1x1-4 and SOT23-5 packages.
Applications
- NB-IoT modules
- Wearable devices
- Fingerprint locks
Key features
- High PSRR: 69dB at 100Hz, 62dB at 1KHz, 48dB at 1MHz
- 1uA ultra-low quiescent current
- 300mA output current
- Wide-range ceramic capacitor compatibility, stable operation
- 120mV dropout voltage at VOUT = 2.8V, 100mA load
- Moisture Sensitivity Level: Level 3
- Lead-free, RoHS and REACH compliant
- Halogen-free, "green" eco-friendly device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ETA5071V330NS2F#C23066909etasolution · SOT-23-5 | etasolution | SOT-23-5 | 1,680 | ₹16.02 · 1,680 in stock | View |
 | ETA5041V330DS2F#C46682367etasolution · SOT-23-5 | etasolution | SOT-23-5 | 3,195 | ₹25.65 · 3,195 in stock | View |
