etasolutionDatasheet (PDF)

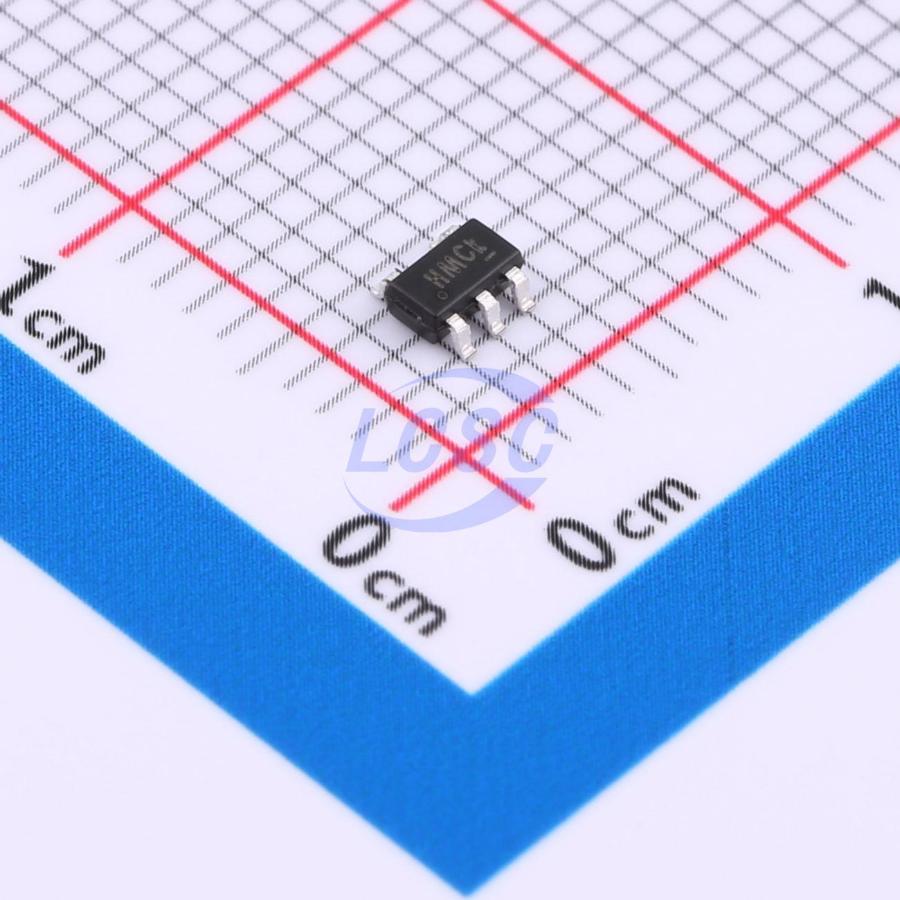

ETA6027S2F
1 Active High 2.2A Load Switch SOT23-5 Power Distribution Switches, Load Drivers RoHS
SOT23-5ROHS CompliantActive
Programmable Current-Limited Load Switch
- Manufacturer
- etasolution
- Manufacturer part #
- ETA6027S2F
- Store part #
- C7465537
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,140 in stock
#C7465537
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.13 | ₹80.65 |
| 50+ | ₹12.75 | ₹637.50 |
| 150+ | ₹11.07 | ₹1,660.50 |
| 500+ | ₹9.80 | ₹4,900.00 |
| 3,000+ | ₹8.78 | ₹26,340.00 |
| 6,000+ | ₹8.28 | ₹49,680.00 |
5 × ₹16.13
₹80.65
excl. GST
₹95.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA6027S2F
₹80.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Reverse voltage protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 2.2A
- Operating Voltage
- 2.1V~6V
- RDS(on)
- 70mΩ
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
The ETA6027 is a load switch which provides full protection to systems and loads which may encounter large current conditions. ETA6027 offers a 70mΩ current-limited switch which can operate over an input voltage range of 2.1 - 6V. The current limit can be externally programmed by a precision resistor, ranges from 75mA to 2.2A. ETA6027 also features reverse voltage blocking, UVLO, and thermal shutdown to protect IC from overheating. An nFAULT flag output provides a pull-down signal to indicate fault conditions.
Applications
- USB Ports and Hubs
- Digital TVs
- Set-Top Boxes
- VOIP Phones
Key features
- Input Operating Voltage Range: 2.1V to 6V
- 7.5V Input Standoff Voltage 6.1V OVP
- Up to 2.2A Max Load current
- Programmable Current-limit: 75mA to 2200mA
- Accurate Current-Limit Threshold at 1.7A: +/-5%
- Fast Over-Current Response
- Fault Flag Output: nFAULT Pin
- Reversed Input-Output Current blocking
- Thermal Shutdown, UVLO protection
- Tiny SOT23-5, SOT23-6, DFN2x2-6 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ETA6280S2F#C7465543etasolution · SOT23-5 | etasolution | SOT23-5 | 10,645 | ₹14.41 · 10,645 in stock | View |
