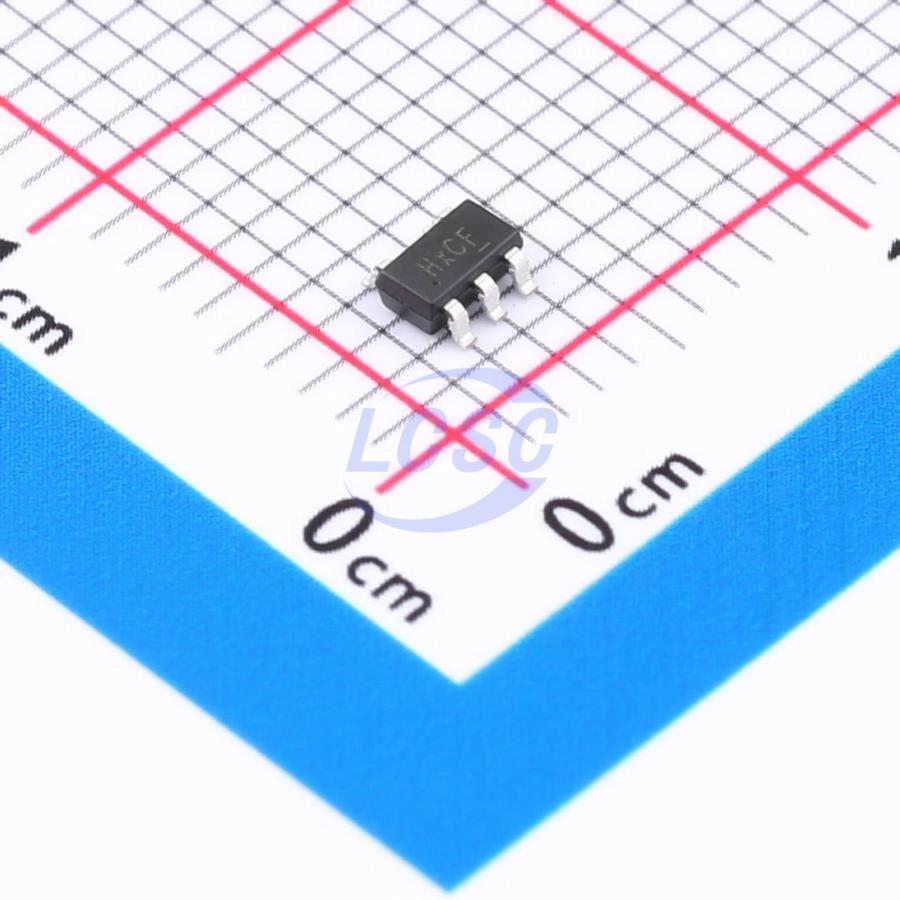

ETA6280S2F

The ETA6280 is a load switch which provides full protection to systems and loads which may encounter large current conditions. ETA6280 offers a 70mΩ current-limited switch which can operate over an input voltage range of 2.1 - 6V. The current limit can be externally programmed by a precision resistor, ranging from 75mA to 2.2A. Switch control is by a logic input (EN) capable of interfacing directly with low voltage control signals. Current is prevented from flowing when the switch is off and the output voltage is higher than the input voltage. ETA6280 also features thermal shutdown protection which shuts off the switch to prevent damage to the part when a continuous over-current condition causes excessive heating. When the switch current reaches the current limit, the parts operate in a constant-current mode to prohibit excessive currents from causing damage. The ETA6280 will not turn off after a current limit fault, but will rather remain in the constant current mode indefinitely. The nFAULT output asserts low during over-current and reverse-voltage conditions.

Applications

• USB Ports and Hubs
• Digital TVs
• Set-Top Boxes
• VOIP Phones

Key features

• Wide Input Voltage Range: 2.1V to 6V
• 7.5V Input Standoff Voltage
• 6.1V OVP Up to 2A Max Continuous Load Current
• Programmable Current Limit: 75mA to 2200mA
• Fast Over Current Response
• Fault Flag Output: nFAULT Pin
• Reversed Input-Output Current Blocking
• Thermal Shutdown, UVLO Protection
• Tiny SOT23-5, SOT23-6, DFN2x2-6 Package
• RoHS Compliant
