JSMSEMIDatasheet (PDF)

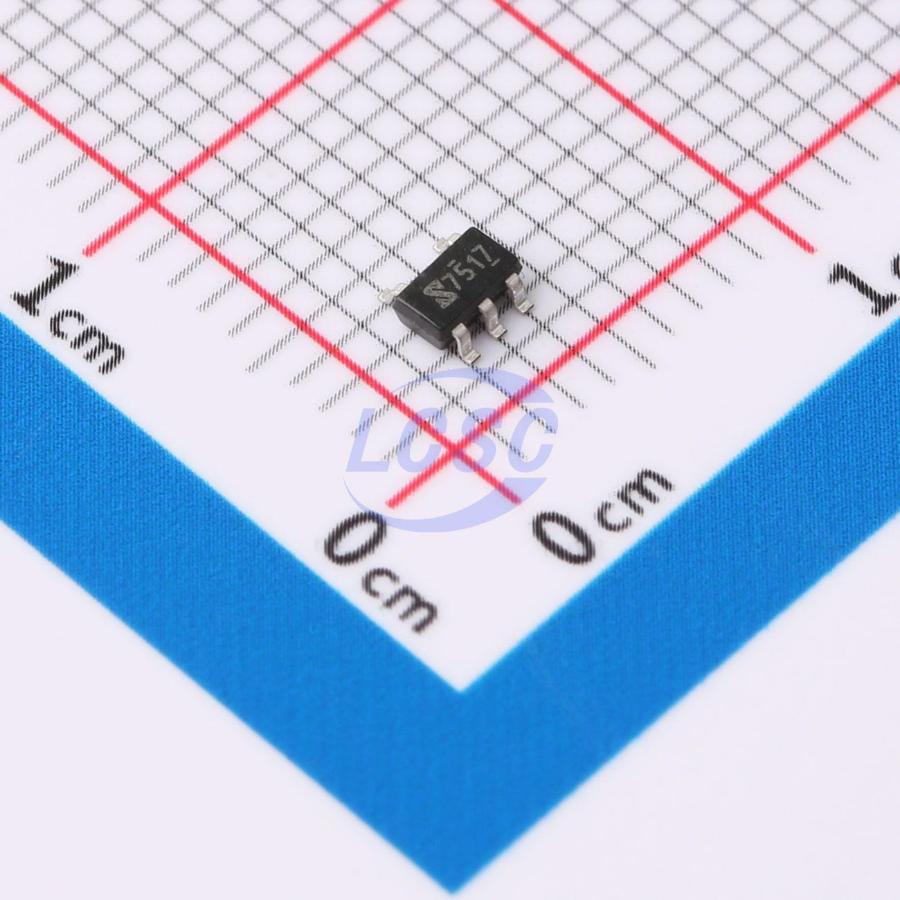

FAN3100CSX-JSM
Gate Driver IC MOSFET IGBT SOT-23-5
SOT-23-5ROHS CompliantActive
4A single-channel low-side non-inverting gate driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- FAN3100CSX-JSM
- Store part #
- C7432824
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,531 in stock
#C7432824
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.74 | ₹50.74 |
| 10+ | ₹44.92 | ₹449.20 |
| 30+ | ₹41.89 | ₹1,256.70 |
| 100+ | ₹39.08 | ₹3,908.00 |
| 500+ | ₹38.22 | ₹19,110.00 |
| 1,000+ | ₹37.35 | ₹37,350.00 |
1 × ₹50.74
₹50.74
excl. GST
₹59.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FAN3100CSX-JSM
₹50.74 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 180uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 10ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
The FAN3100 is a low-voltage power MOSFET and IGBT non-inverting gate driver. Proprietary latch-up immune CMOS technology enables a highly robust single-chip integrated structure. Logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VCC range, UVLO with hysteresis, and output current buffer stages. Operates over a temperature range of -40°C to 125°C.
Applications
- Switching power supplies, switching converters
- General-purpose gate drivers
- Driving MOSFETs and IGBTs
Key features
- Dual-input driver configuration (selectable inverting IN- or non-inverting IN+ pin); unused input pin available for enable/disable function
- 3.3V input logic compatible
- Operating range: 5V~25V
- Wide temperature range: -40°C~125°C
- UVLO: UVLO rising threshold 4.0V, UVLO falling threshold 3.9V
- Turn-on/turn-off propagation delay: Ton/Toff = 30ns/30ns
