JSMSEMIDatasheet (PDF)

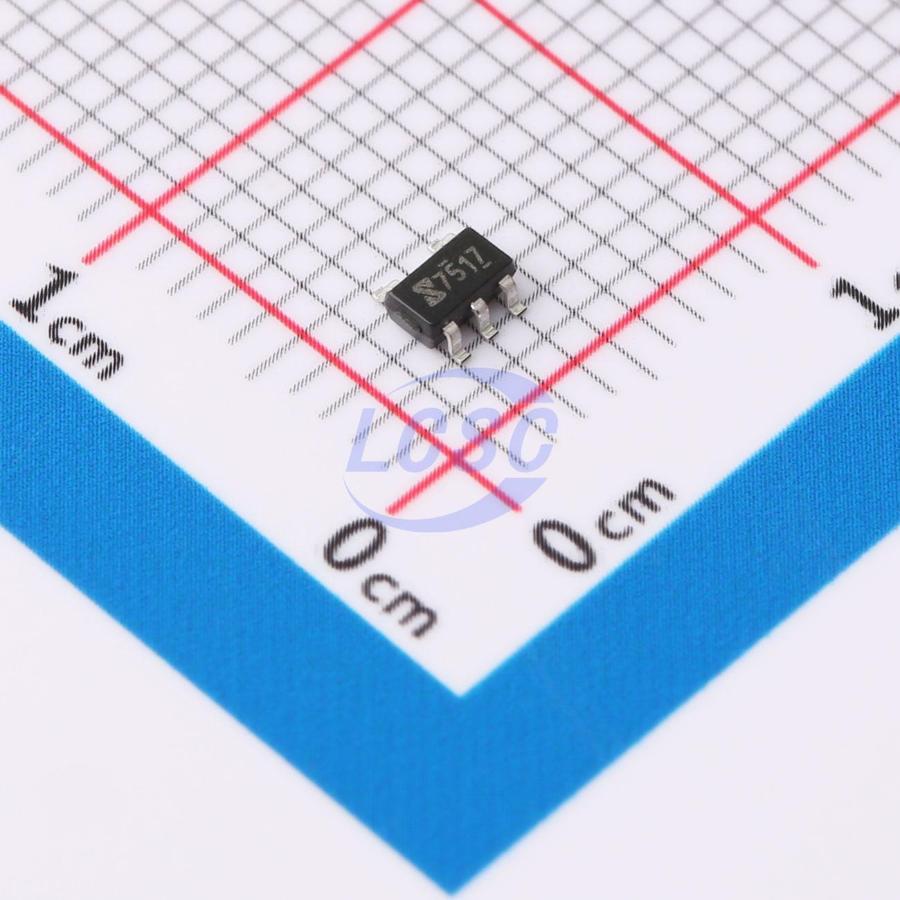

FAN3100TSX-JSM
Gate Driver IC MOSFET IGBT SOT-23-5
SOT-23-5ROHS CompliantActive
4A single-channel low-side non-inverting gate driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- FAN3100TSX-JSM
- Store part #
- C7432823
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,963 in stock
#C7432823
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.42 | ₹84.42 |
| 10+ | ₹68.44 | ₹684.40 |
| 30+ | ₹60.45 | ₹1,813.50 |
| 100+ | ₹52.47 | ₹5,247.00 |
| 500+ | ₹45.13 | ₹22,565.00 |
| 1,000+ | ₹42.75 | ₹42,750.00 |
1 × ₹84.42
₹84.42
excl. GST
₹99.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FAN3100TSX-JSM
₹84.42 for 1 + GST
Specifications
- Low Level Delay Time
- 30ns
- High Level Delay Time
- 30ns
- Quiescent Current
- 180uA
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 10ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.044 g
Overview
The FAN3100 is a low-voltage power MOSFET and IGBT non-inverting gate driver. Proprietary latch-up immune CMOS technology enables a highly robust single-chip integrated structure. Logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VCC range, UVLO with hysteresis, and output current buffer stages. Operates over a temperature range of -40°C to 125°C.
Applications
- Switching power supplies, switching converters
- General-purpose gate drivers
- Drives MOSFETs and IGBTs
Key features
- Dual-input design (selectable inverting (IN- pin) or non-inverting IN+ pin) driver configuration; unused input pins available for enable/disable function
- Compatible with 3.3V input logic
- Operating range: 5V~25V
- Wide temperature range: -40°C~125°C
- UVLO: UVLO rising threshold 4.0V, UVLO falling threshold 3.9V
- Turn-on/turn-off propagation delay: Ton/Toff = 30ns/30ns
