FAN3111ESX

The FAN3111 1A gate driver is designed to drive an N-channel enhancement-mode MOSFET in low-side switching applications. Two input options are offered: FAN3111C has dual CMOS inputs with thresholds referenced to VDD for use with PWM controllers and other input-signal sources that operate from the same supply voltage as the driver. For use with low-voltage controllers and other input-signal sources that operate from a lower supply voltage than the driver, that supply voltage may also be used as the reference for the input thresholds of the FAN3111E. This driver has a single, non-inverting, low-voltage input plus a DC input VXREF for an external reference voltage in the range 2 to 5 V. The FAN3111 is available in a lead-free finish industry-standard 5-pin SOT23.

Applications

• Switch-Mode Power Supplies
• Synchronous Rectifier Circuits
• Pulse Transformer Driver
• Logic to Power Buffer
• Motor Control

Key features

• 1.4 A Peak Sink / Source at VDD = 12 V
• 1.1 A Sink / 0.9 A Source at VOUT = 6 V
• 4.5 to 18 V Operating Range
• FAN3111C Compatible with FAN3100C Footprint
• Two Input Configurations:
• Dual CMOS Inputs Allow Configuration as Non-Inverting or Inverting with Enable Function
• Single Non-Inverting, Low-Voltage Input for Compatibility with Low-Voltage Controllers
• Small Footprint Facilitates Distributed Drivers for Parallel Power Devices
• 15 ns Typical Delay Times
• 9 ns Typical Rise / 8 ns Typical Fall times with 470 pF Load

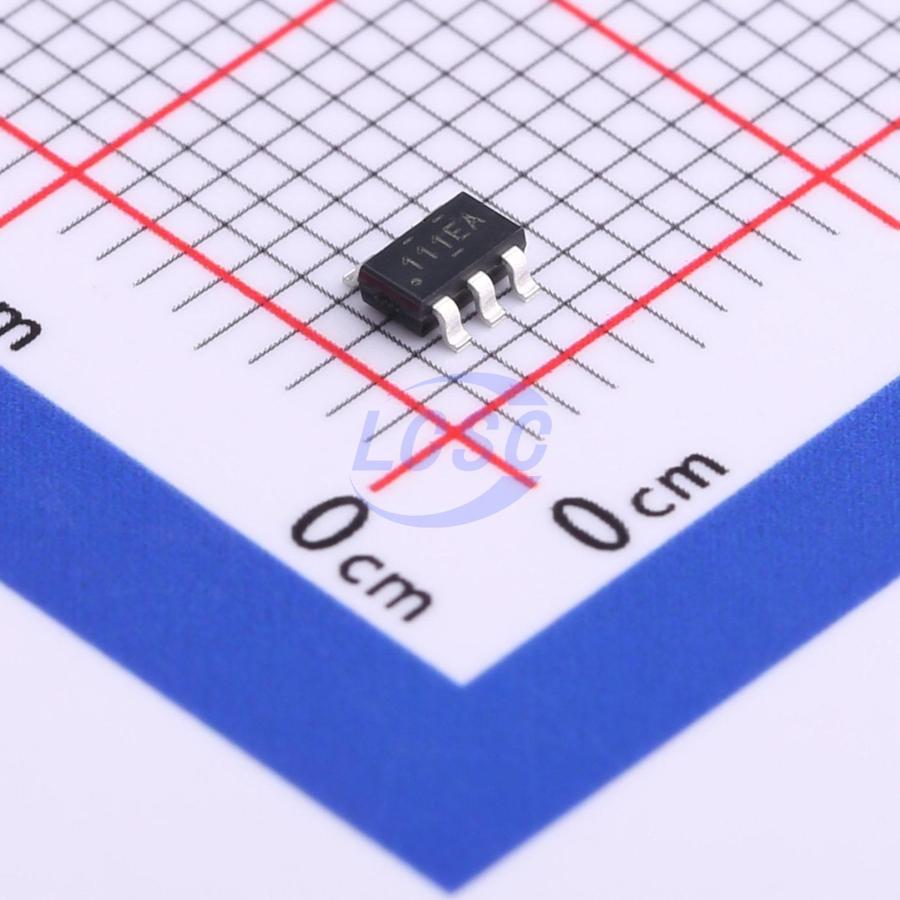

• 5-Pin SOT23 Package
• Rated from -40°C to 125°C Ambient
