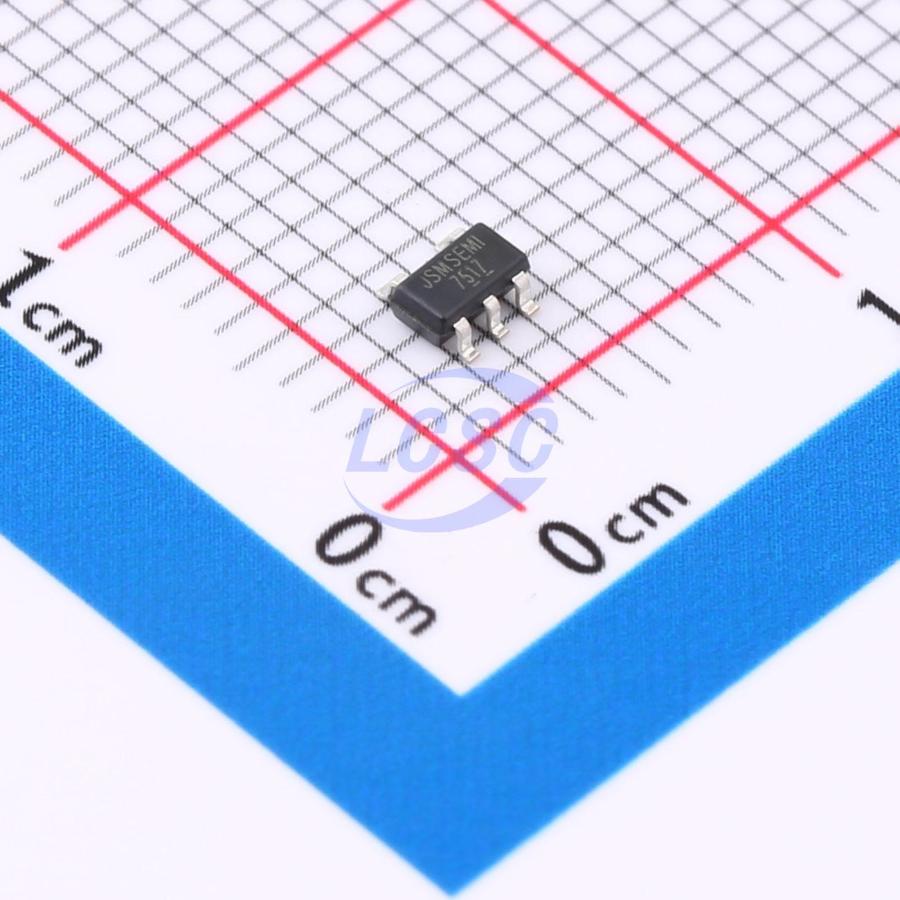

FAN3111ESX-JSM
Gate Driver IC MOSFET IGBT SOT-23-5
4A single-channel low-side non-inverting gate driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- FAN3111ESX-JSM
- Store part #
- C20606851
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,065 in stock
#C20606851
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.91 | ₹219.55 |
| 50+ | ₹34.72 | ₹1,736.00 |
| 150+ | ₹30.77 | ₹4,615.50 |
| 500+ | ₹25.85 | ₹12,925.00 |
| 3,000+ | ₹23.67 | ₹71,010.00 |
| 6,000+ | ₹22.36 | ₹1,34,160.00 |
5 × ₹43.91
₹219.55
excl. GST
₹259.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FAN3111ESX-JSM
₹219.55 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 180uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 10ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
FAN3111 is a low-voltage power MOSFET and IGBT non-inverting gate driver. Proprietary latch-up immune CMOS technology enables a highly robust single-chip integrated architecture. The FAN3111 logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VCC range, UVLO with hysteresis, and output current buffer stage. The FAN3111 is available in a SOT23-5 package and operates over a temperature range of -40°C to 125°C.
Applications
- Switching power supplies
- Switch-mode converters
- General-purpose gate drivers
- Driving MOSFETs and IGBTs
Key features
- Dual-input design (selectable inverting (IN− pin) or non-inverting (IN+ pin) driver configuration)
- Unused input pin configurable for enable/disable function
- Compatible with 3.3V input logic
- Operating range: 5V~25V
- Wide temperature range: -40°C~125°C
- Undervoltage lockout (UVLO)
- UVLO rising threshold: 4.0V
- UVLO falling threshold: 3.9V
- Turn-on/turn-off propagation delay
- Ton/Toff = 30ns/30ns
- Drive current capability
- Source/Sink = 4A/4A
- SOT-23-5 package
