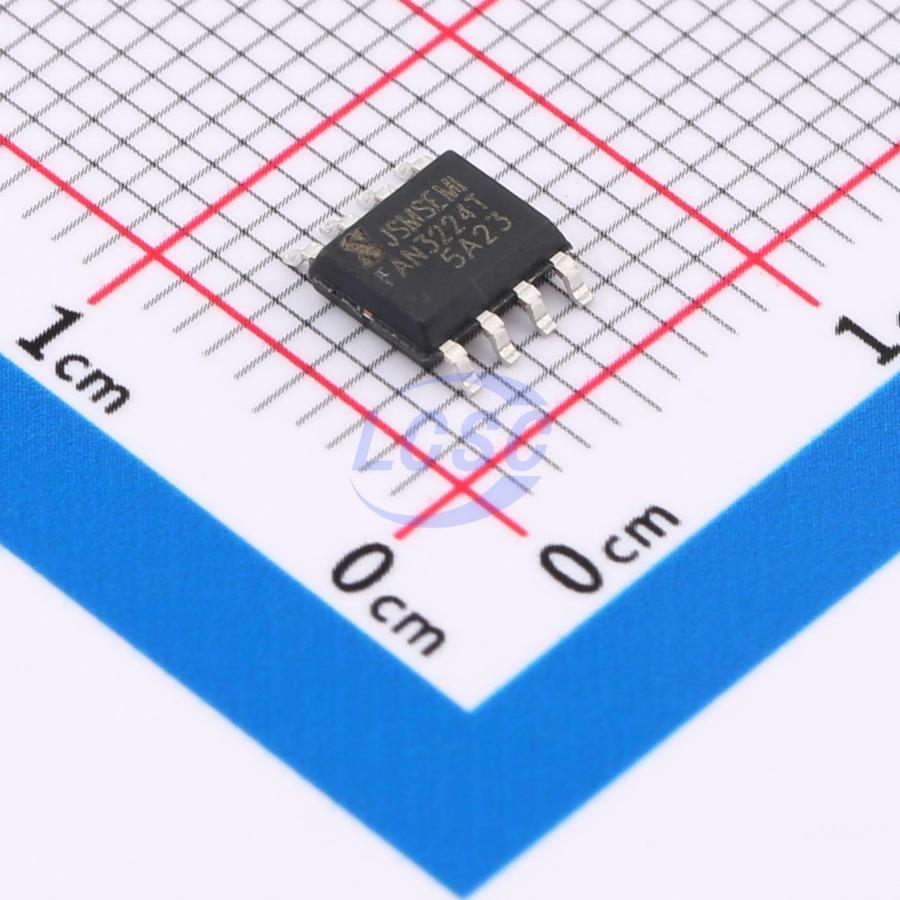

FAN3224TMX-JSM
4.5V~20V SOP-8 Gate Drivers RoHS
- Manufacturer
- JSMSEMI
- Manufacturer part #
- FAN3224TMX-JSM
- Store part #
- C18198374
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,505 in stock
#C18198374
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.65 | ₹233.25 |
| 50+ | ₹36.62 | ₹1,831.00 |
| 150+ | ₹32.33 | ₹4,849.50 |
| 500+ | ₹26.98 | ₹13,490.00 |
| 2,500+ | ₹24.59 | ₹61,475.00 |
| 5,000+ | ₹23.17 | ₹1,15,850.00 |
5 × ₹46.65
₹233.25
excl. GST
₹275.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FAN3224TMX-JSM
₹233.25 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 40ns
- High Level Delay Time
- 40ns
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~20V
- Operating Temperature
- -40℃~+125℃
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Enable shutdown
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.113 g
Overview
The FAN3224 is a power switch driver featuring matched rise and fall times when charging and discharging the gate of a power switch. The device offers high latch-up immunity under any conditions within its rated power and voltage range. Noise spikes of up to 5V (either polarity) on the ground pin will not damage the device. The FAN3224 can withstand reverse sink currents of up to 500mA without damage or logic state upset. All pins are fully protected against ESD up to 2.0kV. The device is available in an SOP-8 package with an operating temperature range of -40°C to 125°C.
Applications
- Switching power supplies, switching converters
- Motor control
- DC-DC converters
- Class D switching amplifiers
- Line drivers
Key features
- Latch-up protection: withstands 0.5A reverse current
- Input logic protection down to -10V
- Low output impedance
- Dual-channel driver integrated in a single chip
- Independent enable port control per channel
- Peak output current: 4A
- Operating voltage range: 4.5V~20V
- High capacitive load drive capability: switching time <25ns at 1nF load
- Matched rise/fall times
- Propagation delay: 40ns
- Wide operating temperature range: -40℃~125℃
- Turn-on/turn-off delay: Ton/Toff = 70ns/70ns
- RoHS compliant
- SOP-8 package
