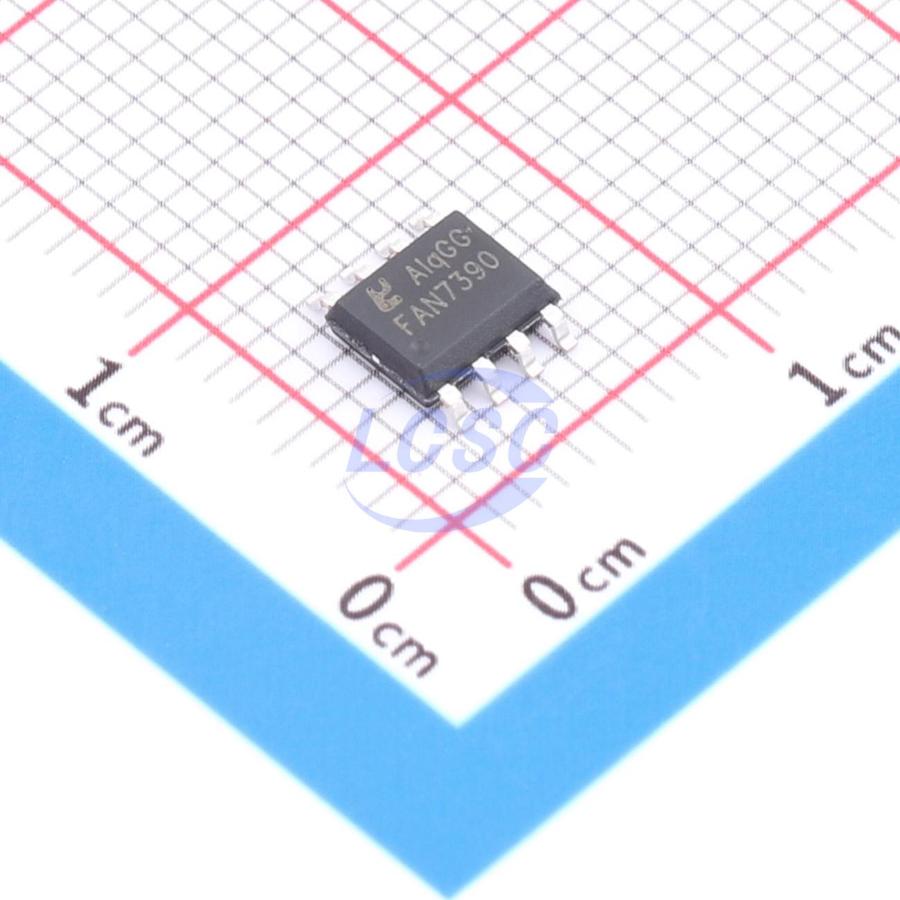

FAN7390MX-MNS
6.8V~20V 4A 4A SOP-8 Gate Drivers
SOP-8RoHSActive
- Manufacturer
- Minos
- Manufacturer part #
- FAN7390MX-MNS
- Store part #
- C50646515
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,908 in stock
#C50646515
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.82 | ₹89.82 |
| 10+ | ₹80.05 | ₹800.50 |
| 30+ | ₹75.07 | ₹2,252.10 |
| 100+ | ₹70.29 | ₹7,029.00 |
| 500+ | ₹67.47 | ₹33,735.00 |
| 1,000+ | ₹65.96 | ₹65,960.00 |
1 × ₹89.82
₹89.82
excl. GST
₹105.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FAN7390MX-MNS
₹89.82 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 100uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 6.8V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 6ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.149 g
Overview
High-voltage, high-speed power MOSFET high- and low-side gate driver IC with two independent channels. Integrates high- and low-side UVLO, overvoltage clamp, and other protection features with high-current pulse output capability. Logic inputs are compatible with CMOS or LSTTL logic levels as low as 3.3V, with a maximum output current of 4A and a floating channel operating voltage up to 700V. Suitable for driving N-channel high-voltage power MOSFETs, IGBTs, and similar devices.
Applications
- General-purpose inverter
- Motor control
- Air conditioner/washing machine
- Micro-inverter driver
Key features
- Floating channel for bootstrap operation
- Maximum operating voltage up to 700V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/nsec
- VS negative bias capability down to -9V
- Gate drive voltage range: 6.8V–20V
- Propagation delay: Ton/Toff = 150ns/150ns
- Matched propagation delay for high and low side
- Output drive current: source/sink = 4.0A/4.0A
- High and low side UVLO: UVLO positive threshold 5.5V, UVLO negative threshold 5.0V
- RoHS compliant, SOP-8 package
