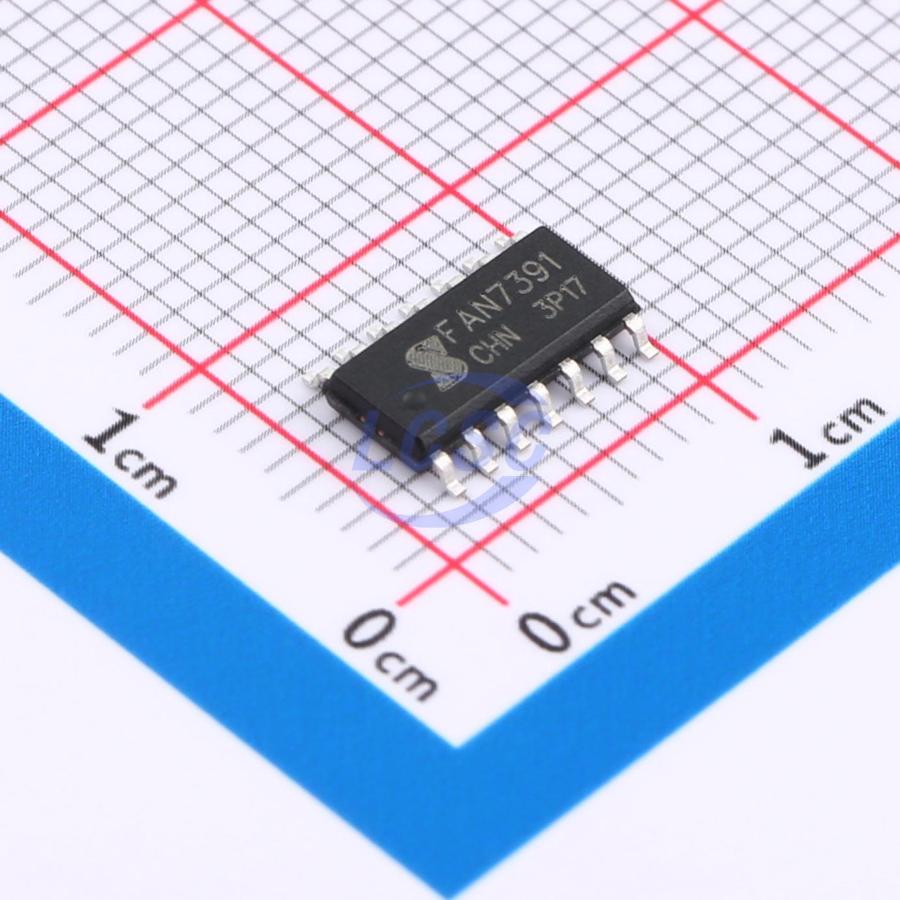

FAN7391MX-JSM
Half-Bridge Gate Driver IC MOSFET IGBT SOP-14
700V high-current high and low-side MOSFET/IGBT driver chips
- Manufacturer
- JSMSEMI
- Manufacturer part #
- FAN7391MX-JSM
- Store part #
- C7498991
- Package / case
- SOP-14
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,294 in stock
#C7498991
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.60 | ₹138.60 |
| 10+ | ₹125.00 | ₹1,250.00 |
| 30+ | ₹117.67 | ₹3,530.10 |
| 100+ | ₹109.03 | ₹10,903.00 |
| 500+ | ₹106.00 | ₹53,000.00 |
| 1,000+ | ₹104.28 | ₹1,04,280.00 |
1 × ₹138.60
₹138.60
excl. GST
₹163.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FAN7391MX-JSM
₹138.60 for 1 + GST
Specifications
- Quiescent Current
- 150uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 4A
- Rise Time
- 40ns
- Fall Time
- 20ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.198 g
Overview
FAN7391 is a high-voltage, high-speed power MOSFET/IGBT high- and low-side driver series IC featuring two independent transmission channels with logic ground separated from power ground, providing better isolation of power-stage noise from logic circuits. It integrates protection circuits including high- and low-side UVLO and overvoltage clamp circuits, with high-current pulse output capability. Logic input levels are compatible with CMOS or LSTTL logic outputs as low as 3.3V, with a maximum output current of 4A and a maximum floating-channel operating voltage of 700V. Suitable for driving N-channel high-voltage power MOSFETs/IGBTs and similar devices. The FAN7391 is available in an SOP-14 package and operates over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Driver
Key features
- Floating channel maximum voltage for bootstrap operation: 700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/nsec
- Vs negative voltage tolerance: -9V
- Gate drive voltage: 10V to 20V
- High- and low-side UVLO
- UVLO positive threshold: 8.9V
- UVLO negative threshold: 8.2V
- Propagation delay: Ton/Toff = 130ns/130ns
- High- and low-side delay matched
- Drive current capability: source/sink = 4.0A/4.0A
- RoHS compliant
- SOIC14(S)
