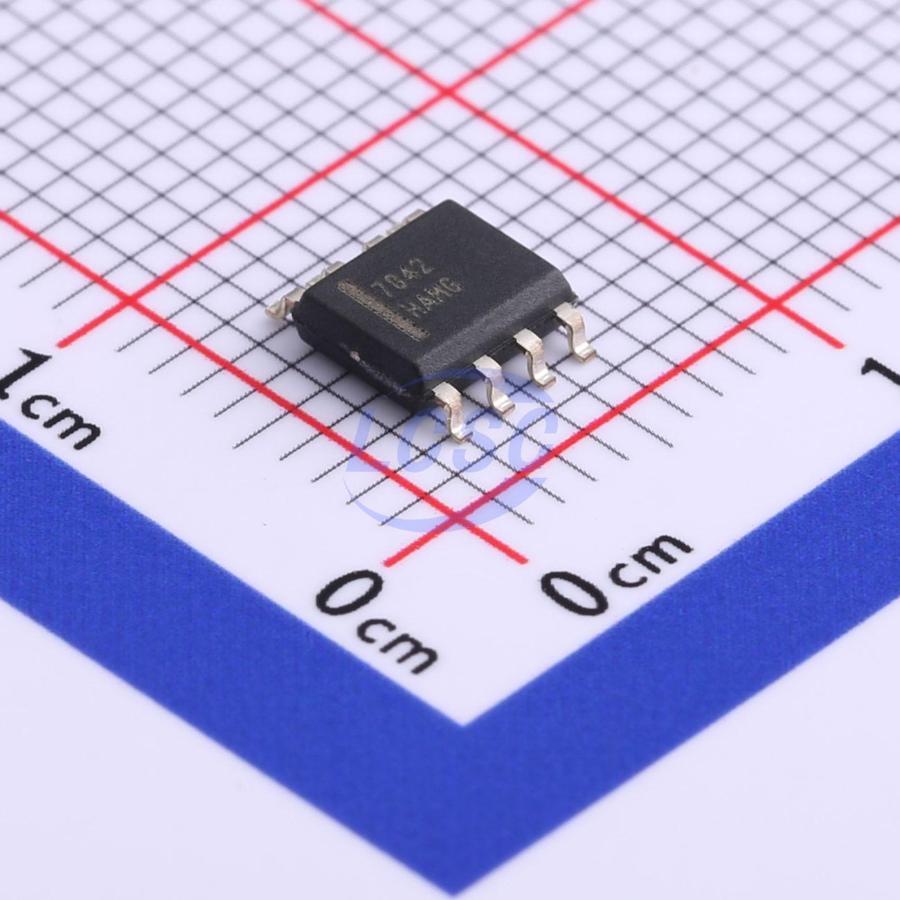

FAN7842MX
10V~20V 650mA 350mA SOP-8 Gate Drivers RoHS
High- and Low-Side Gate Driver
- Manufacturer
- onsemi
- Manufacturer part #
- FAN7842MX
- Store part #
- C512885
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,354 in stock
#C512885
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹141.15 | ₹141.15 |
| 10+ | ₹113.39 | ₹1,133.90 |
| 30+ | ₹99.74 | ₹2,992.20 |
| 100+ | ₹86.09 | ₹8,609.00 |
| 500+ | ₹77.85 | ₹38,925.00 |
| 1,000+ | ₹73.51 | ₹73,510.00 |
1 × ₹141.15
₹141.15
excl. GST
₹166.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FAN7842MX
₹141.15 for 1 + GST
Specifications
- Low Level Delay Time
- 170ns
- High Level Delay Time
- 200ns
- Quiescent Current
- 70uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 650mA
- Rise Time
- 20ns
- Fall Time
- 30ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 350mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.135 g
Overview
Floating Channels Designed for Bootstrap Operation to +200 V Typically 350 mA/650 mA Sourcing/Sinking Current Driving Capability for Both Channels Common-Mode dv/dt Noise Canceling Circuit Extended Allowable Negative VS Swing to -9.8 V for Signal Propagation at VCC = VBS = 15 V VCC & VBS Supply Range from 10 V to 20 V UVLO Functions for Both Channels TTL Compatible Input Logic Threshold Levels Matched Propagation Delay Below 50 nsec Output In-phase with Input Signal
Applications
- Battery based motor applications (E-bike, Power Tool)
- Telecom DC-DC converter
Key features
- Floating Channels Designed for Bootstrap Operation to +200 V
- Typically 350 mA/650 mA Sourcing/Sinking Current Driving Capability for Both Channels
- Common-Mode dv/dt Noise Canceling Circuit
- Extended Allowable Negative VS Swing to -9.8 V for Signal Propagation at VCC = VBS = 15 V
- VCC & VBS Supply Range from 10 V to 20 V
- UVLO Functions for Both Channels
- TTL Compatible Input Logic Threshold Levels
- Matched Propagation Delay Below 50 nsec
- Output In-phase with Input Signal
