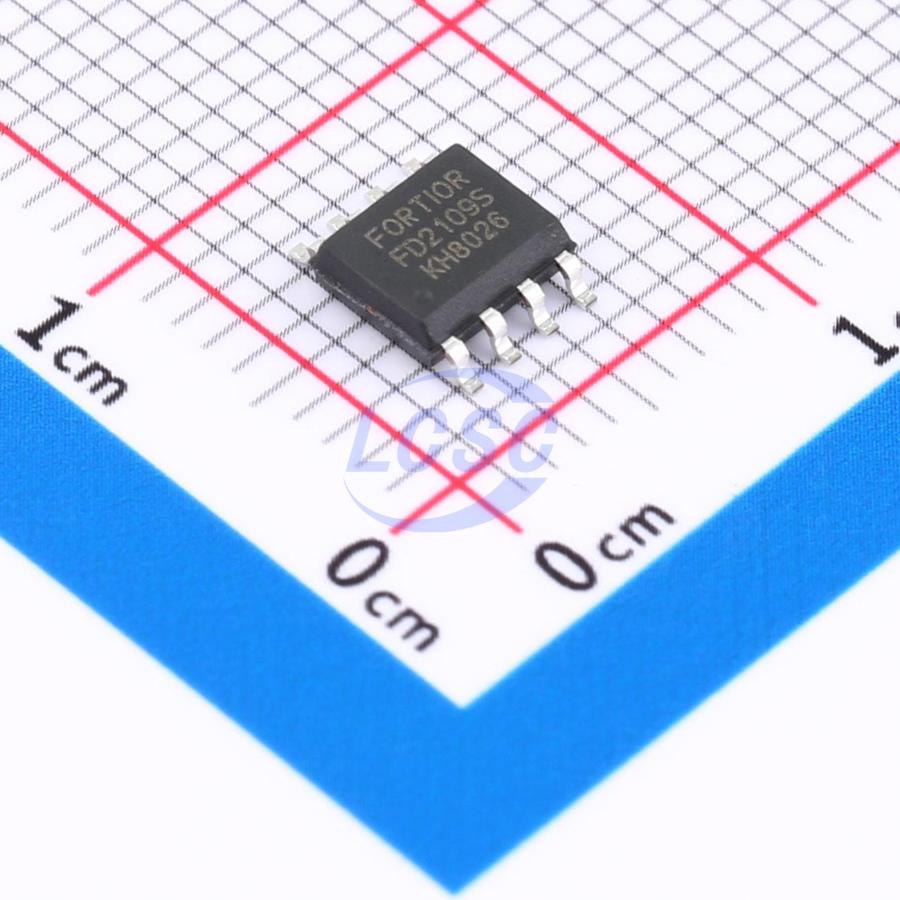

FD2109S
10V~18V 5A 5A SOIC-8 Gate Drivers
SOIC-8RoHSActive
- Manufacturer
- Fortior Tech
- Manufacturer part #
- FD2109S
- Store part #
- C42411224
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,998 in stock
#C42411224
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.08 | ₹90.08 |
| 10+ | ₹72.06 | ₹720.60 |
| 30+ | ₹63.16 | ₹1,894.80 |
| 100+ | ₹54.27 | ₹5,427.00 |
| 500+ | ₹49.06 | ₹24,530.00 |
| 1,000+ | ₹46.24 | ₹46,240.00 |
1 × ₹90.08
₹90.08
excl. GST
₹106.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FD2109S
₹90.08 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 300uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 10V~18V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 5A
- Rise Time
- 10ns
- Fall Time
- 10ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 5A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.119 g
Overview
FD2109S is a half-bridge gate driver IC designed for high-voltage, high-speed driving of N-type power MOSFETs.
Applications
- Motor drive
- DC-DC converter
Key features
- Built-in under-voltage protection prevents power transistors from operating at excessively low supply voltages
- Built-in shoot-through prevention and dead-time control prevent power transistor shoot-through
- Floating voltage +180V
- Supply operating voltage range: 10V to 18V
- Output current +5.0A / -5.0A
- 3.3V/5V input logic compatible
- VCC/VBS under-voltage protection
- Non-inverting output
