Fortior TechDatasheet (PDF)

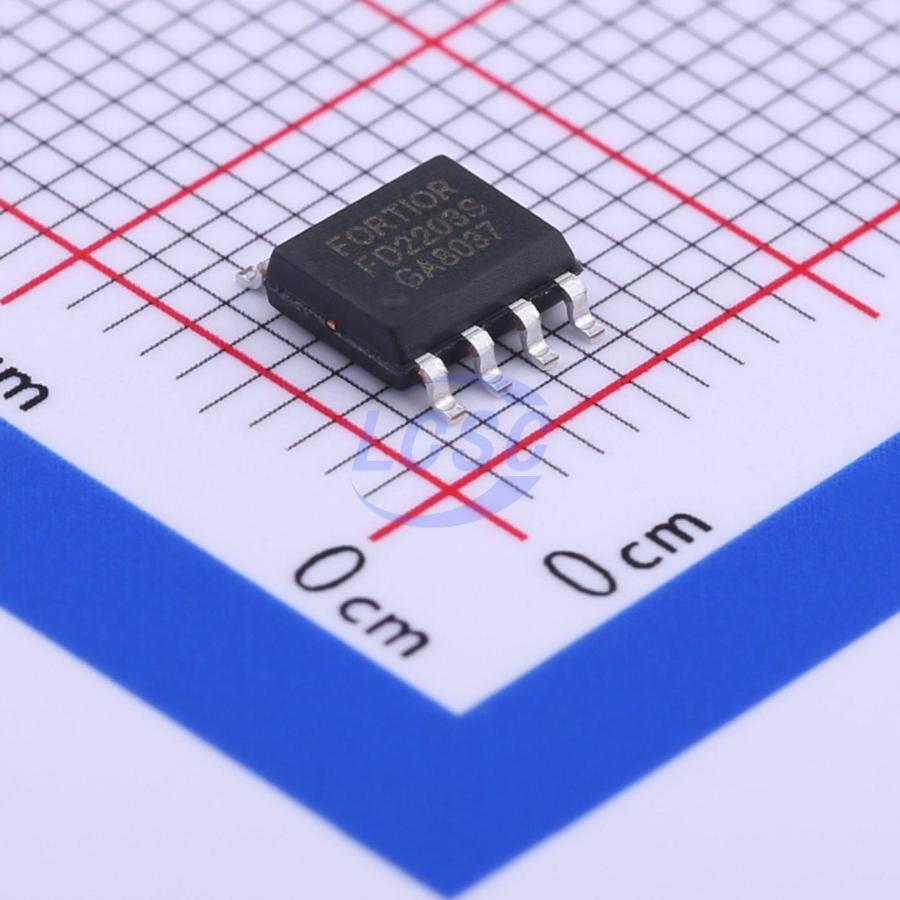

FD2203S
Half-Bridge Gate Driver IC MOSFET SO-8
SO-8ROHS CompliantActive
Half-Bridge Gate Driver
- Manufacturer
- Fortior Tech
- Manufacturer part #
- FD2203S
- Store part #
- C97684
- Package / case
- SO-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,050 in stock
#C97684
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.32 | ₹256.60 |
| 50+ | ₹38.71 | ₹1,935.50 |
| 150+ | ₹33.50 | ₹5,025.00 |
| 500+ | ₹26.75 | ₹13,375.00 |
| 3,000+ | ₹23.71 | ₹71,130.00 |
| 6,000+ | ₹21.75 | ₹1,30,500.00 |
5 × ₹51.32
₹256.60
excl. GST
₹302.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FD2203S
₹256.60 for 5 + GST
Specifications
- Quiescent Current
- 460uA
- Voltage - Supply
- 8V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 2.3A
- Rise Time
- 12ns
- Fall Time
- 8ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.6A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.247 g
Overview
FD2203S is a half-bridge gate driver IC designed for high-voltage, high-speed driving of N-type power MOSFETs, operating at voltages up to +250V. Built-in UVLO protection prevents power transistors from operating under excessively low voltages, improving efficiency. Built-in input signal filtering prevents input noise interference. Built-in shoot-through prevention and dead-time control protect against shoot-through conditions, effectively safeguarding power devices.
Applications
- Motor drive
- DC-DC converter
Key features
- Half-bridge gate driver IC designed for high-voltage, high-speed driving of N-type power MOSFETs, operating up to +250V.
- Built-in UVLO prevents power transistors from operating at insufficient voltage.
- Built-in input signal filtering against input noise interference.
- Built-in shoot-through prevention and dead-time insertion to protect power devices from shoot-through.
- Floating voltage +250V, output current +1.6A / -2.3A.
- 3.3V/5V input logic compatible with VCC/VBS UVLO.
- High-side output in-phase with high-side input; low-side output inverted relative to low-side input.
- Built-in shoot-through prevention, 250ns dead time, matched high- and low-side channels.
