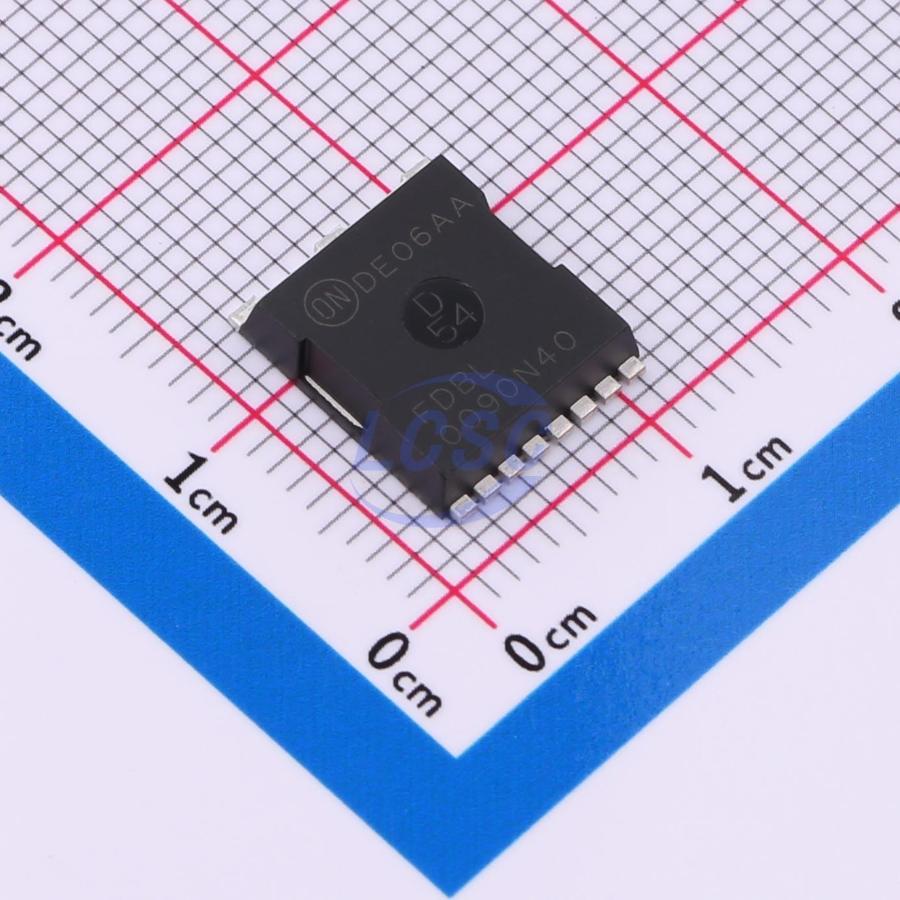

FDBL0090N40
40V 240A 357W MO-299A
MO-299AROHS3 CompliantActive
MOSFET 40V 240A MO-299A
- Manufacturer
- onsemi
- Manufacturer part #
- FDBL0090N40
- Store part #
- C900873
- Package / case
- MO-299A
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
54 in stock
#C900873
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹692.13 | ₹692.13 |
| 10+ | ₹596.92 | ₹5,969.20 |
| 30+ | ₹540.35 | ₹16,210.50 |
| 100+ | ₹483.16 | ₹48,316.00 |
| 500+ | ₹456.78 | ₹2,28,390.00 |
| 1,000+ | ₹444.95 | ₹4,44,950.00 |
1 × ₹692.13
₹692.13
excl. GST
₹816.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
FDBL0090N40
₹692.13 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 3.26nF
- Ciss-Input Capacitance
- 12nF
- Pd - Power Dissipation
- 357W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 240A
- Reverse Transfer Capacitance (Crss)
- 442pF
- RDS(on)
- 0.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 188nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.956 g
Overview
Applications
- Industrial Motor Drive
- Industrial Power Supply
- Industrial Automation
- Battery Operated tools
- Battery Protection
- Solar Inverters
- UPS and Energy Inverters
- Energy Storage
- Load Switch
Key features
- Typical RDS(on)=0.65 mΩ at VGS=10V, ID=80 A
- Typical Qg(tot)=144 nC at VGS=10V, ID=80 A
- UIS Capability
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTBLS1D1N08H#C606157onsemi · MO-299A | onsemi | MO-299A | 5 | ₹2,267.38 · 5 in stock | View |
 | FDBL86063-F085#C900879onsemi · MO-299A | onsemi | MO-299A | 30 | ₹934.45 · 30 in stock | View |
| FDBL0210N80#C462994onsemi · MO-299A | onsemi | MO-299A | 400 | ₹727.84 · 400 in stock | View | |
 | FDBL0120N40#C900875onsemi · MO-299A | onsemi | MO-299A | 3 | ₹377.80 · 3 in stock | View |
 | FDBL86566-F085#C900884onsemi · MO-299A | onsemi | MO-299A | 80 | ₹486.40 · 80 in stock | View |
