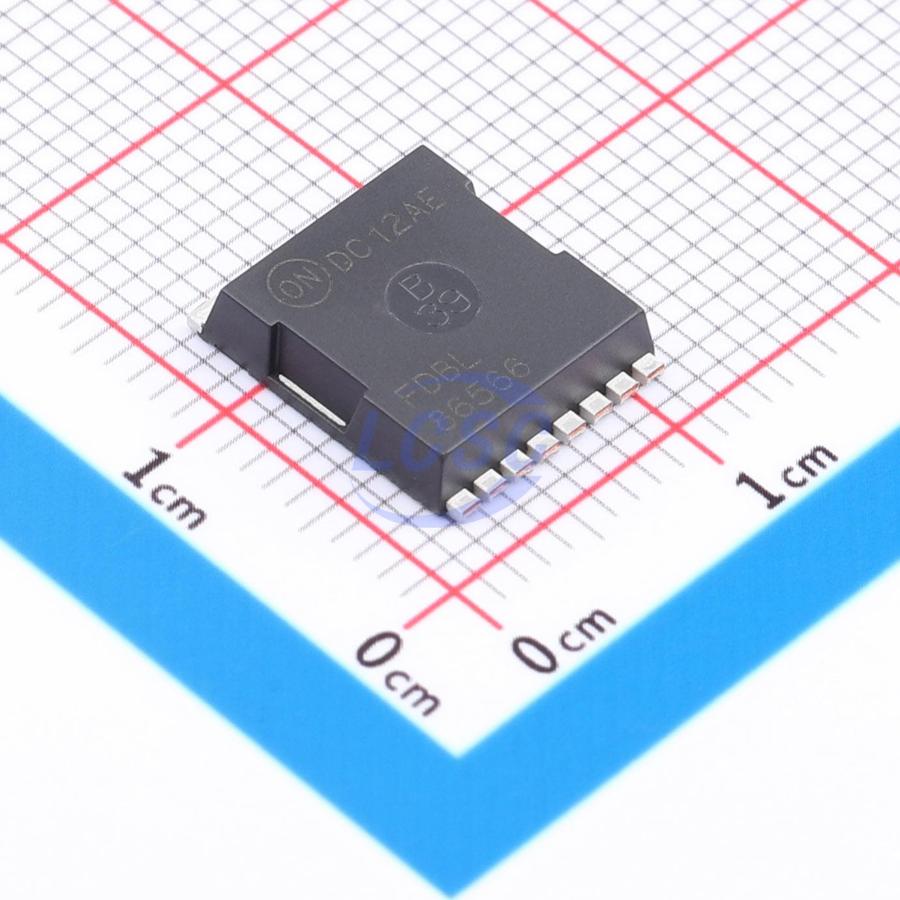

FDBL86566-F085
300W 60V 240A 1.9mΩ@10V 1 N-channel N-Channel MO-299A Single FETs, MOSFETs RoHS
MO-299AROHS3 CompliantActive
MOSFET N-CH 60V 240A MO-299A
- Manufacturer
- onsemi
- Manufacturer part #
- FDBL86566-F085
- Store part #
- C900884
- Package / case
- MO-299A
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C900884
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹486.40 | ₹486.40 |
| 10+ | ₹459.93 | ₹4,599.30 |
| 30+ | ₹444.32 | ₹13,329.60 |
| 100+ | ₹428.48 | ₹42,848.00 |
| 500+ | ₹421.10 | ₹2,10,550.00 |
| 1,000+ | ₹417.84 | ₹4,17,840.00 |
1 × ₹486.40
₹486.40
excl. GST
₹573.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
FDBL86566-F085
₹486.40 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.745nF
- Ciss-Input Capacitance
- 6.655nF
- Pd - Power Dissipation
- 300W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 240A
- Reverse Transfer Capacitance (Crss)
- 57pF
- RDS(on)
- 1.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.005 g
Overview
These N-channel enhancement-mode FETs are manufactured using a proprietary high cell density DMOS process. These devices are designed to minimize on-resistance while providing rugged, reliable, and fast switching performance. They are suitable for most applications requiring up to 400 mA of continuous drain current and are capable of providing up to 2 A of pulsed current. These devices are particularly well-suited for low-voltage, low-current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications.
Applications
- Automotive engine control
- Powertrain management
- Solenoid and motor drivers
- Integrated starter-generator
- 12V system main switch
Key features
- Typical R DS(on) = 1.9 mΩ at V GS = 10 V, I D = 80 A
- Typical Q g(tot) = 80 nC at V GS = 10 V, I D = 80 A
- Single-pulse avalanche rated
- RoHS compliant
- AEC Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDBL86063-F085#C900879onsemi · MO-299A | onsemi | MO-299A | 30 | ₹934.45 · 30 in stock | View |
 | NTBLS1D1N08H#C606157onsemi · MO-299A | onsemi | MO-299A | 5 | ₹2,267.38 · 5 in stock | View |
 | NTBLS1D5N08MC#C903211onsemi · MO-299A | onsemi | MO-299A | 10 | ₹1,746.23 · 10 in stock | View |
| FDBL0210N80#C462994onsemi · MO-299A | onsemi | MO-299A | 400 | ₹727.84 · 400 in stock | View | |
 | NVBLS1D1N08H#C903215onsemi · MO-299A | onsemi | MO-299A | On request | ₹836.27 · 0 in stock | View |
