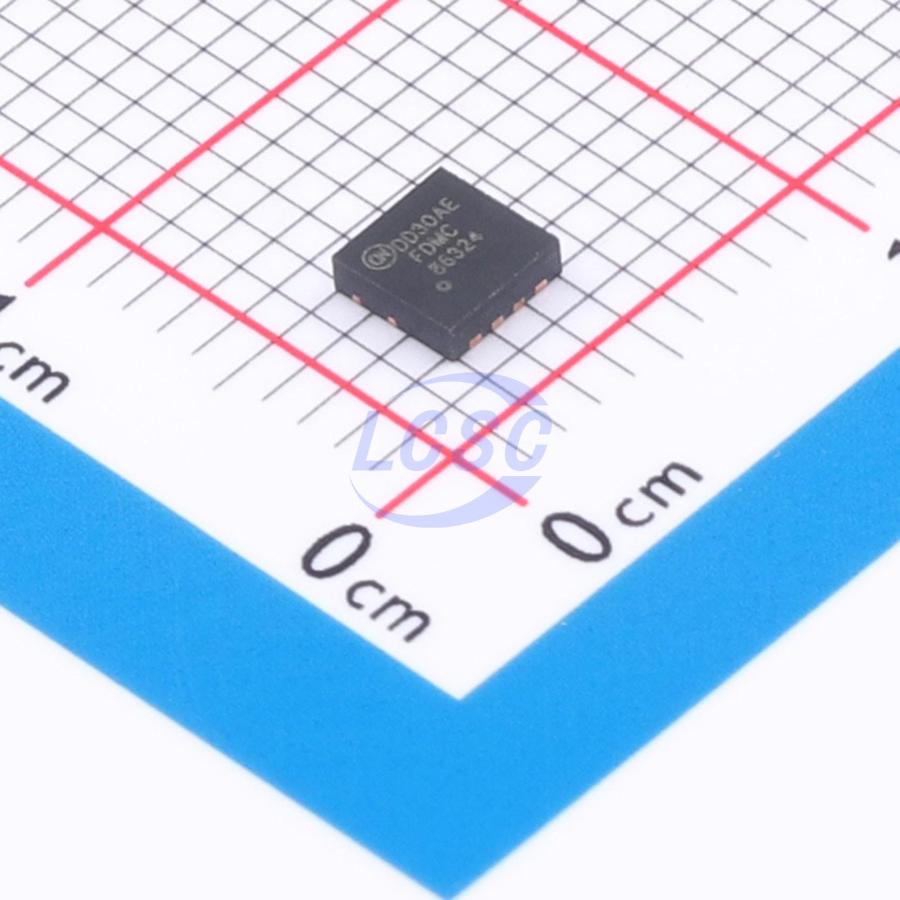

FDMC86324
41W 80V 20A 19.1mΩ@10V 1 N-channel N-Channel PQFN-8 Single FETs, MOSFETs RoHS
PQFN-8ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FDMC86324
- Store part #
- C890972
- Package / case
- PQFN-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C890972
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹216.67 | ₹216.67 |
| 10+ | ₹213.23 | ₹2,132.30 |
| 30+ | ₹211.07 | ₹6,332.10 |
| 100+ | ₹208.93 | ₹20,893.00 |
1 × ₹216.67
₹216.67
excl. GST
₹255.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMC86324
₹216.67 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 175pF
- Ciss-Input Capacitance
- 725pF
- Pd - Power Dissipation
- 41W
- Drain to Source Voltage
- 80V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 19.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.064 g
Overview
This N-channel MOSFET is fabricated using an advanced power trench process, specially optimized to minimize on-resistance while maintaining excellent switching performance.
Applications
- DC-DC conversion
Key features
- Maximum r<sub>DS(on)</sub> = 23 mΩ at V<sub>GS</sub> = 10 V, I<sub>D</sub> = 7 A
- Maximum r<sub>DS(on)</sub> = 37 mΩ at V<sub>GS</sub> = 6 V, I<sub>D</sub> = 4 A
- Low profile — Power 33 package maximum height 1 mm
- 100% UI1L tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMFS7D5N15MC#C5208917onsemi · PQFN-8 | onsemi | PQFN-8 | 50 | ₹369.67 · 50 in stock | View |
 | FDMC86160ET100#C890964onsemi · PQFN-8 | onsemi | PQFN-8 | On request | ₹436.85 · 0 in stock | View |
| FDMC86260ET150#C890969onsemi · PQFN-8 | onsemi | PQFN-8 | On request | ₹247.22 · 0 in stock | View | |
| FDMC86340ET80#C463952onsemi · PQFN-8 | onsemi | PQFN-8 | On request | ₹317.20 · 0 in stock | View | |
 | NTMFS10N3D2C#C606046onsemi · PQFN-8 | onsemi | PQFN-8 | On request | ₹1,008.06 · 0 in stock | View |
