onsemiDatasheet (PDF)

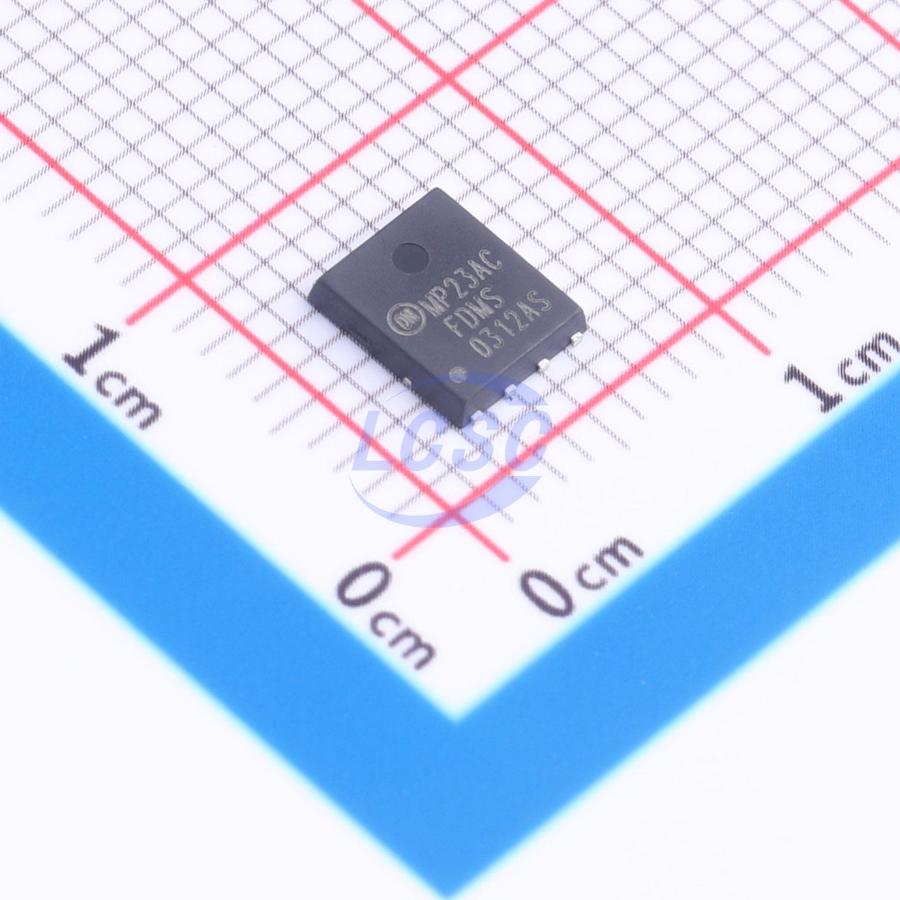

FDMS0312AS
36W 30V 22A 5mΩ@10V 1 N-channel N-Channel PQFN-8(5x6) Single FETs, MOSFETs RoHS
PQFN-8(5x6)ROHS3 CompliantActive
N-Channel, Current: 22A, Voltage: 30V
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS0312AS
- Store part #
- C241801
- Package / case
- PQFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C241801
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹214.95 | ₹214.95 |
| 10+ | ₹212.16 | ₹2,121.60 |
| 30+ | ₹210.44 | ₹6,313.20 |
| 100+ | ₹208.49 | ₹20,849.00 |
1 × ₹214.95
₹214.95
excl. GST
₹253.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS0312AS
₹214.95 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 730pF
- Ciss-Input Capacitance
- 1.815nF
- Pd - Power Dissipation
- 36W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 22A
- Reverse Transfer Capacitance (Crss)
- 105pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.253 g
Overview
The FDMS0312AS is designed to minimize losses in power conversion applications. By combining advances in silicon and packaging technology, it achieves the lowest RDS(ON) while maintaining excellent switching performance. The device also features an efficient monolithic Schottky body diode.
Applications
- Synchronous rectifier for DC/DC converters
- Notebook Vcore/GPU low-side switch
- Network point-of-load low-side switch
- Telecom secondary-side rectification
Key features
- Maximum rDS(on) = 5.0 mΩ at VGS = 10 V, ID = 18 A
- Maximum rDS(on) = 6.2 mΩ at VGS = 4.5 V, ID = 16 A
- Advanced packaging combined with silicon technology for low RDS(ON) and high efficiency
- SyncFET Schottky body diode
- MSL1 rugged package design
- 100% UIL tested
- RoHS compliant
