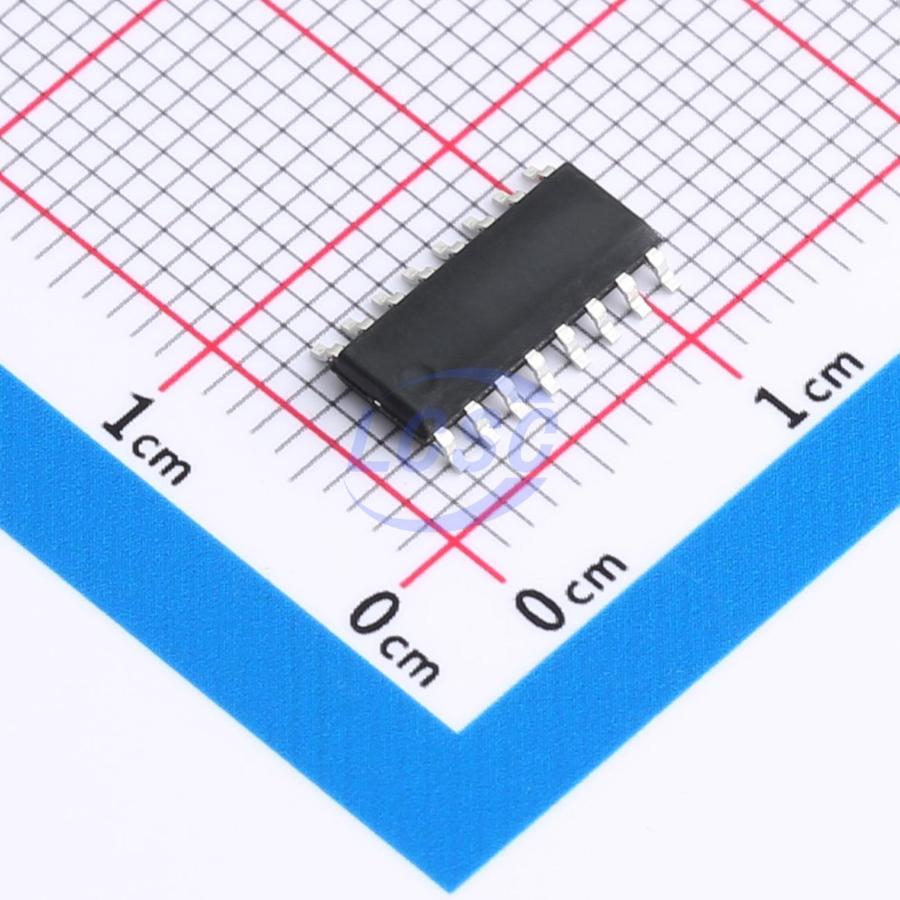

FIF232YSOP16G/TR

5V Transceiver 120Kbps SOP-16 Drivers, Receivers, Transceivers RoHS

SOP-16ROHS CompliantActive

Dual-channel driver/receiver

Manufacturer: Full-Way
Manufacturer part #: FIF232YSOP16G/TR
Store part #: C42421346
Package / case: SOP-16
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,020 in stock

#C42421346

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹28.80	₹144.00
50+	₹25.16	₹1,258.00
150+	₹23.59	₹3,538.50
500+	₹21.64	₹10,820.00
2,500+	₹20.77	₹51,925.00
5,000+	₹20.26	₹1,01,300.00

Quantity (min 5, multiples of 5)

5 × ₹28.80

₹144.00

excl. GST

₹169.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

FIF232YSOP16G/TR

₹144.00 for 5 + GST

Specifications

Voltage - Supply: 5V
Type: Transceiver
Data Rate: 120Kbps
Operating Temperature: -20℃~+85℃
charge pump: Yes
Number of Drivers: 2
Features: Automatic level shifting;Short-Circuit Protection
Number of Receivers: 2
Quiescent Supply Current: 10mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.288 g

Overview

The FIF232 device is a dual-channel driver/receiver that integrates a capacitive voltage generator, capable of providing TIA/EIA-232-F compliant voltage levels from a single 5V supply. Each receiver converts TIA/EIA-232-F input signals to 5V TTL/CMOS levels, with typical input threshold and hysteresis of 1.3V and 0.5V respectively, and can withstand input voltages up to ±30V. Each driver converts TTL/CMOS input levels to TIA/EIA-232-F levels.

Applications

Industrial control automation
Battery-powered systems
Security systems
Smart metering
Road traffic control automation

Key features

Single 5V supply
Data transfer rate up to 120kbit/s
Dual-channel configuration
Wide input voltage range of ±30V
Typical supply current as low as 8mA
ESD protection per JESD 22 HBM, rated above 2000V (A114-A)
Upgradeable with enhanced ESD protection (15kV HBM) and 0.1μF charge pump capacitor
