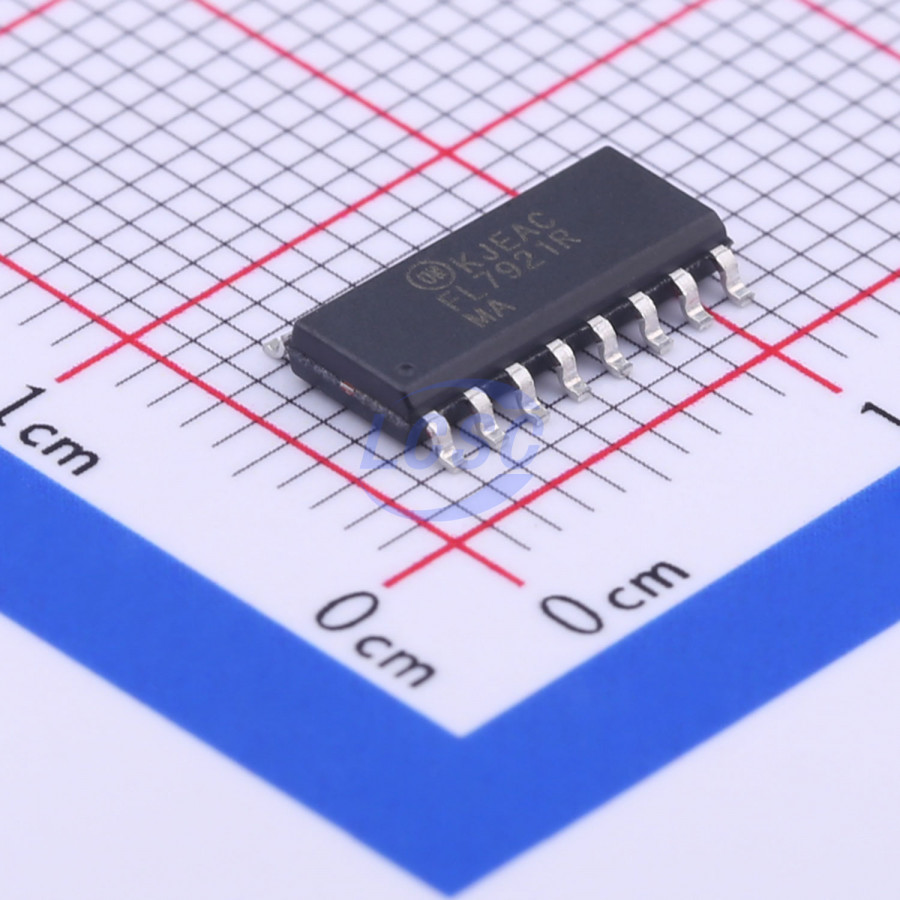

FL7921RMX
PWM 2 AC-DC 7.5V~25V SOP-16 LED Drivers RoHS
Integrated Critical-Mode PFC and Quasi-Resonant Current-Mode PWM Lighting Controller
- Manufacturer
- onsemi
- Manufacturer part #
- FL7921RMX
- Store part #
- C367382
- Package / case
- SOP-16
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,505 in stock
#C367382
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹189.26 | ₹189.26 |
| 10+ | ₹155.40 | ₹1,554.00 |
| 30+ | ₹136.73 | ₹4,101.90 |
| 100+ | ₹115.68 | ₹11,568.00 |
| 500+ | ₹106.34 | ₹53,170.00 |
| 1,000+ | ₹102.00 | ₹1,02,000.00 |
1 × ₹189.26
₹189.26
excl. GST
₹223.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FL7921RMX
₹189.26 for 1 + GST
Specifications
- Dimming
- PWM
- Number of Channels
- 2
- Type
- AC-DC
- Switch tube (built-in/external)
- External
- Operating Temperature
- -40℃~+125℃
- Features
- Built-in soft-start;Over Voltage Protection;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP);High voltage fast start
- Topology
- Boost;Flyback
- Voltage - Input(DC)
- 7.5V~25V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.318 g
Overview
The highly integrated FL7921R combines a Power Factor Correction (PFC) controller and a QuasiResonant PWM controller. Integration provides costeffect design and allows for fewer external components. For PFC, FL7921R uses a controlled on-time technique to provide a regulated DC output voltage and to perform natural power factor correction. An innovative THD optimizer reduces input current distortion at zerocrossing duration to improve THD performance. The PFC function is always on regardless of the PWM stage load condition to ensure that high PF can be achieved at light load condition. For PWM, FL7921R provides several functions to enhance power system performance: valley detection, green-mode operation, high / low line over-power compensation. Protection functions include secondaryside open-loop and over-current with auto-recovery protection, external recovery triggering, adjustable overtemperature protection through the RT pin and external NTC resistor, internal over-temperature shutdown, VDD pin OVP, DET pin over-voltage for output OVP, and brown-in / out for AC input voltage UVP. All protections are auto recovery mode except PWM current sense pin open protection. The FL7921R controller is available in a 16-pin, smalloutline package (SOP).
Applications
- Medium to High Power LED Lighting Driver Application
Key features
- Integrated PFC and Flyback Controller
- Critical-Mode PFC Controller
- Zero-Current Detection for PFC Stage
- Quasi-Resonant Operation for PWM Stage
- Internal Minimum tOFF 8 μs for QR PWM Stage
- Internal 10 ms Soft-Start for PWM
- Brownout Protection
- High / Low Line Over-Power Compensation Auto Recovery Over-Current Protection
- Auto Recovery Open-Loop Protection
- Auto Recovery Over-Temperature Protection
- Adjustable Over-Temperature with external NTC through the RT pin Auto Recovery VDD Pin and Output Voltage OVP
