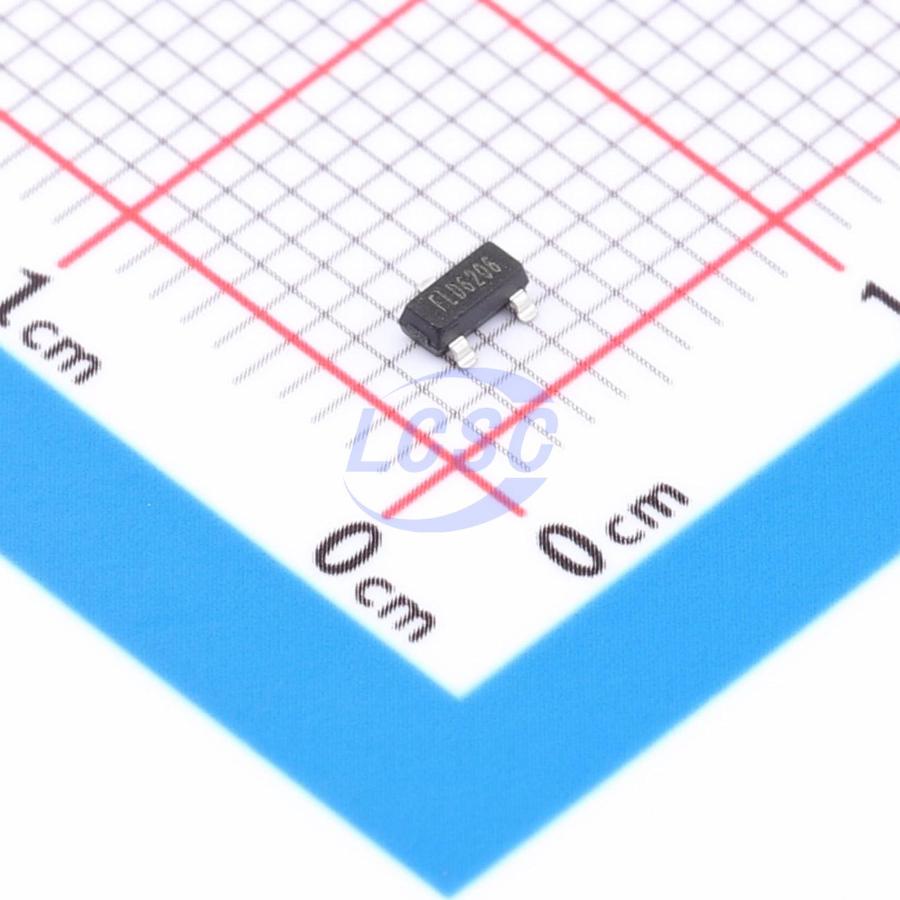

FLD6206-3.3YSOT233G/TR
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
IC REG LINEAR 3.3V 300mA SOT-23
- Manufacturer
- Full-Way
- Manufacturer part #
- FLD6206-3.3YSOT233G/TR
- Store part #
- C49425001
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C49425001
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.23 | ₹191.15 |
| 50+ | ₹33.67 | ₹1,683.50 |
| 150+ | ₹31.73 | ₹4,759.50 |
| 500+ | ₹29.33 | ₹14,665.00 |
| 3,000+ | ₹26.08 | ₹78,240.00 |
| 6,000+ | ₹25.41 | ₹1,52,460.00 |
5 × ₹38.23
₹191.15
excl. GST
₹225.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FLD6206-3.3YSOT233G/TR
₹191.15 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+80℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The FDL6206 series is a CMOS step-down voltage regulator featuring high ripple rejection, low power consumption, low dropout, and overcurrent/short-circuit protection. The device offers an extremely low quiescent current (typical 3.0μA), delivering 300mA output current with good regulation even at very small input-to-output voltage differentials. Due to the minimal dropout voltage and ultra-low quiescent current, these devices are ideally suited for battery-powered products requiring extended battery life, such as computers, consumer products, and industrial equipment. Output voltage is selectable from 1.2V to 5V. The FLD6206 series is available in SOT23-3 and SOT89 packages.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
Key features
- Output voltage accuracy: ±2% tolerance
- Ultra-low quiescent current (typical = 3.0μA)
- Low temperature coefficient
- High output drive capability: 300mA output current at 4.3V input / 3.3V output
- Usable as voltage regulator and voltage reference
- Package types: SOT89-3, SOT23-3
