FITIPOWERDatasheet (PDF)

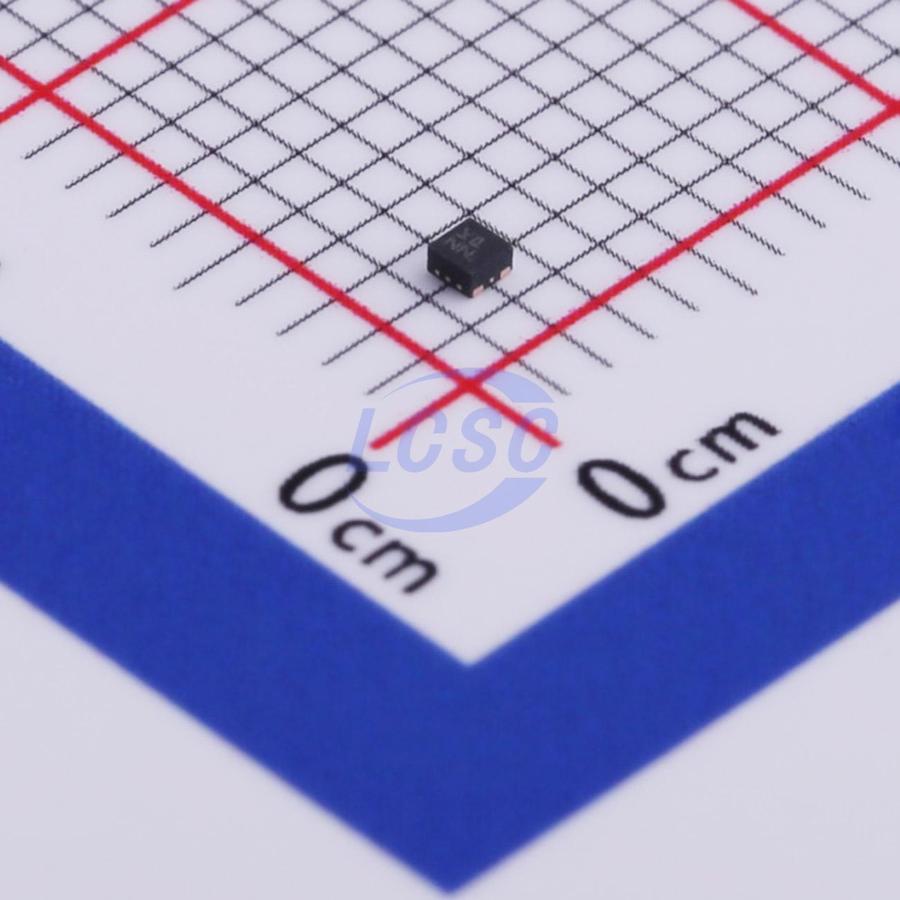

FP6182-28X7
2.8V Positive Fixed UTDFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
UTDFN-4-EP(1x1)ROHS CompliantActive
150mA Low Supply Current Low Dropout Regulator
- Manufacturer
- FITIPOWER
- Manufacturer part #
- FP6182-28X7
- Store part #
- C498349
- Package / case
- UTDFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,490 in stock
#C498349
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.22 | ₹82.20 |
| 100+ | ₹6.55 | ₹655.00 |
| 300+ | ₹5.70 | ₹1,710.00 |
| 1,000+ | ₹5.08 | ₹5,080.00 |
| 5,000+ | ₹4.09 | ₹20,450.00 |
| 10,000+ | ₹3.84 | ₹38,400.00 |
10 × ₹8.22
₹82.20
excl. GST
₹97.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FP6182-28X7
₹82.20 for 10 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Features
- Enable control;Over Current Protection;Power supply timing control;Short Circuit Protection;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.005 g
Overview
The FP6182 is a 150mA low dropout regulator. This product is specifically designed to provide ultra low quiescent current and high output voltage accuracy. The FP6182 integrates many functions. The current limit functions protect the device against current over-loads. It can control other converter for power sequence. The FP6182 can be enabled by other power system. Pulling and holding the EN pin below 0.4V shuts off the output. The FP6182 is available in SOT-23-5 and UTDFN-4L (1mmx1mm) packages which features small size.
Applications
- Smart Watch
- Wireless Mouse
- Wireless Sensor Networks
- Data Recorder
- IP Cam
- Dual Band Working Modes Radio
Key features
- Low IQ, Typ. 1μA No-Load Supply Current
- Supply Current in Shutdown Mode 0.1μA
- Input Voltage Range: 2.7V to 5.5V
- Output Current Limit Protection
- Dropout Voltage is 250mV @ 150mA Load
- Max. ± 1.5% Output Voltage Accuracy
- Stable with Low Cost Ceramic Capacitors
- Short-Circuit Protection
- SOT23-5 and UTDFN-4L(1mmx1mm) Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XTP2021-280AD1CT#C7422315XTX · DFN1x1-4L | XTX | DFN1x1-4L | 11,070 | ₹6.93 · 11,070 in stock | View |
 | SK6018D4-28#C2682757Suntek · XDFN-4-EP(1x1) | Suntek | XDFN-4-EP(1x1) | 7,210 | ₹10.16 · 7,210 in stock | View |
 | TP132LC28D4#C48586710TECH PUBLIC · DFN-4(1x1) | TECH PUBLIC | DFN-4(1x1) | 3,470 | ₹6.40 · 3,470 in stock | View |
 | UM1540DB-28#C7542866Union Semiconductor · DFN4-EP(1.0x1.0) | Union Semiconductor | DFN4-EP(1.0x1.0) | 20 | ₹13.39 · 20 in stock | View |
 | MD52E28WB6#C920344Mingda Microelectronics · DFN-4-EP(1x1) | Mingda Microelectronics | DFN-4-EP(1x1) | 2,845 | ₹12.94 · 2,845 in stock | View |
