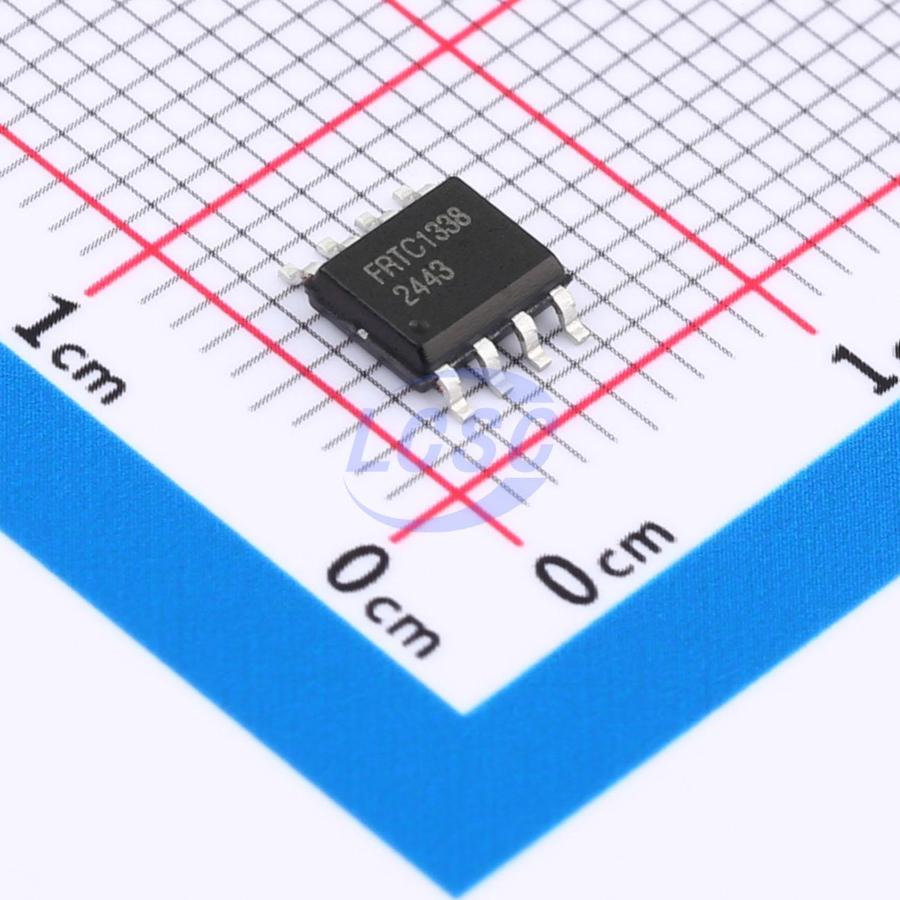

FRTC1338S
External No SOP-8 Real Time Clocks
Real Time Clock
- Manufacturer
- Nyfea
- Manufacturer part #
- FRTC1338S
- Store part #
- C42413384
- Package / case
- SOP-8
- Category
- Real Time Clocks
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,628 in stock
#C42413384
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.59 | ₹48.59 |
| 10+ | ₹42.31 | ₹423.10 |
| 30+ | ₹39.48 | ₹1,184.40 |
| 100+ | ₹36.22 | ₹3,622.00 |
| 500+ | ₹34.72 | ₹17,360.00 |
| 1,000+ | ₹33.63 | ₹33,630.00 |
1 × ₹48.59
₹48.59
excl. GST
₹57.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FRTC1338S
₹48.59 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 2.97V~3.63V
- Features
- InsideSRAM/NVRAM;Programmable clock output;Backup power management and battery charging;Power-off retention of registers
- crystal oscillator
- External
- Alarm Output
- No
- Current - Supply
- 120uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.234 g
Overview
The FRTC1338S serial real-time clock is a low-power, full binary-coded decimal clock/calendar with an integrated 56-byte nonvolatile SRAM. Address and data are transferred serially via the I²C interface. The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. End-of-month dates are automatically adjusted for months with fewer than 31 days, including leap year correction. The clock supports 24-hour or 12-hour operation with an AM/PM indicator. The FRTC1338S incorporates a power-sense circuit that detects power failures and automatically switches to battery backup.
Applications
- Handheld devices
- Consumer electronics
- Office equipment
- Medical
- Telecommunications
- Others
Key features
- Real-time clock counts seconds, minutes, hours, date, month, day of week, and year, with leap-year compensation valid through 2100
- Supports 1.8V, 3.0V, and 3.3V operating voltages
- 56-byte battery-backed non-volatile SRAM for data storage
- I²C serial interface
- Programmable square-wave output signal
- Integrated automatic power-fail detection and switchover circuit
- Operating temperature range: -40 ~ 85℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FRTC4111S#C42413382Nyfea · SOP-8 | Nyfea | SOP-8 | 3,532 | ₹47.59 · 3,532 in stock | View |
 | FRTC4100S#C42413381Nyfea · SOP-8 | Nyfea | SOP-8 | 3,601 | ₹43.99 · 3,601 in stock | View |
 | FRTC1337S#C42413383Nyfea · SOP-8 | Nyfea | SOP-8 | 812 | ₹60.83 · 812 in stock | View |
 | FRTC8563S#C42413379Nyfea · SOP-8 | Nyfea | SOP-8 | 1,720 | ₹27.31 · 1,720 in stock | View |
