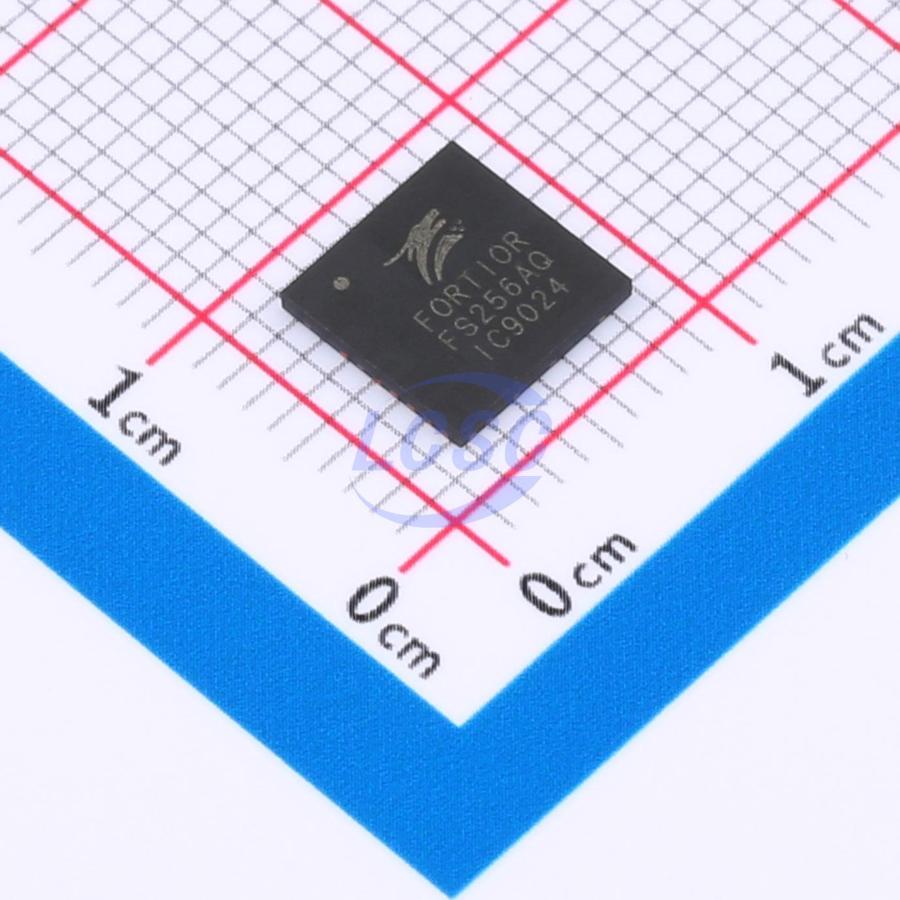

FS256AQ
Half-Bridge Gate Driver IC MOSFET QFN-17L(7x7)
High-voltage half-bridge power module
- Manufacturer
- Fortior Tech
- Manufacturer part #
- FS256AQ
- Store part #
- C2875459
- Package / case
- QFN-17L(7x7)
- Category
- Motor Drivers, Controllers
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,093 in stock
#C2875459
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.63 | ₹164.63 |
| 10+ | ₹137.49 | ₹1,374.90 |
| 30+ | ₹122.62 | ₹3,678.60 |
| 260+ | ₹105.59 | ₹27,453.40 |
| 520+ | ₹98.05 | ₹50,986.00 |
| 1,040+ | ₹94.61 | ₹98,394.40 |
1 × ₹164.63
₹164.63
excl. GST
₹194.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 260 per tray
FS256AQ
₹164.63 for 1 + GST
Specifications
- Features
- Interleaved conduction protection
- Driven Configuration
- Half-Bridge
- Number of Channels
- 2
- Voltage - Supply
- 13.5V~16.5V
- Propagation Delay tpHL
- 200ns
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 160uA
- Load Type
- MOSFET
- Input Logic Level - High
- 2.8V
- Propagation Delay tpLH
- 500ns
- Input Logic Level - Low
- 800mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 260 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.12 g
Overview
FS256AQ is a high-performance, high-reliability high-voltage half-bridge intelligent power module integrating two 600V/5A fast-recovery power MOSFETs and a high-voltage half-bridge gate driver circuit, primarily designed for small-power motor drives such as fans, blowers, and pumps. The module features built-in VCC/VBS undervoltage lockout (UVLO) protection to prevent the power transistors from operating at excessively low voltages, as well as built-in input filtering and shoot-through prevention to guard against input noise interference. In addition, it adopts a QFN-7×7 package, offering an extremely compact footprint that is easy to use and particularly suitable for motor-integrated and space-constrained installations.
Applications
- Outdoor AC fan motor
- Indoor AC fan motor
- Fan
- Ceiling fan
- Water pump
Key features
- Integrated 2× 600V/5A fast-recovery power MOSFETs
- Integrated high-voltage gate driver (HVIC)
- Supply voltage range: 13.5V~20V
- 3.3V/5V input logic compatible, active high
- VCC/VBS undervoltage lockout (UVLO)
- Integrated shoot-through prevention
- Isolation voltage: 1500Vrms/1min
- RoHS compliant
