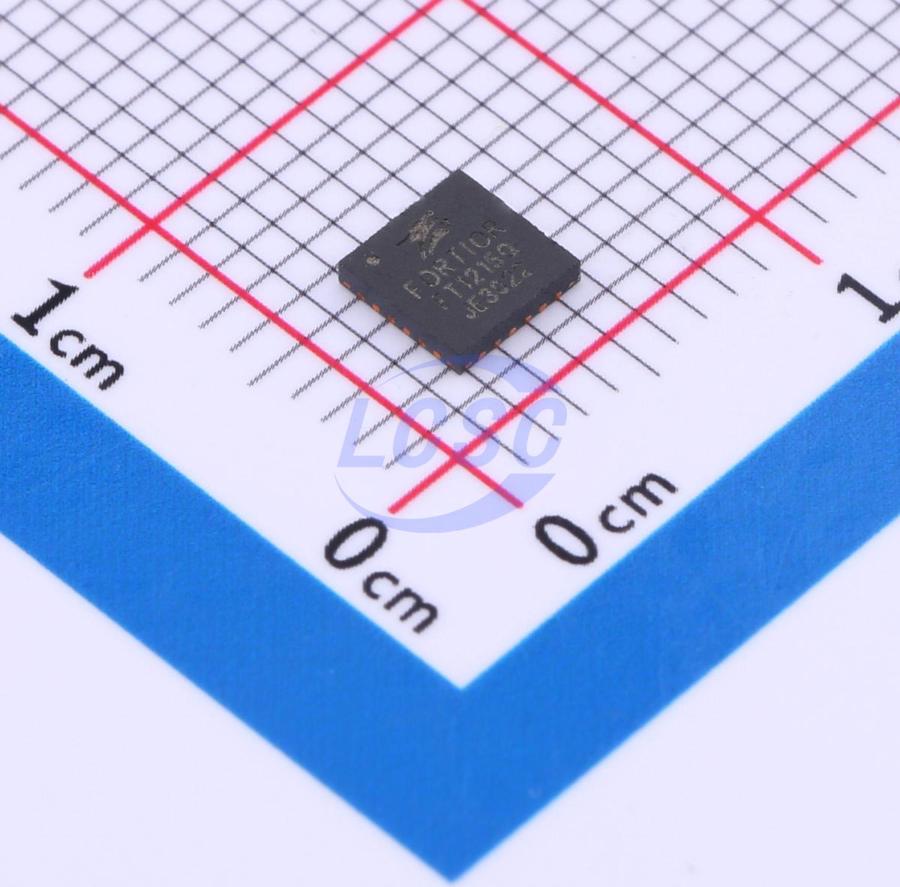

FT1215Q
4.5V~28V QFN-24(4x4) Motor Drivers, Controllers RoHS
Three Phase Sinusoidal BLDC Motor Driver
- Manufacturer
- Fortior Tech
- Manufacturer part #
- FT1215Q
- Store part #
- C5126650
- Package / case
- QFN-24(4x4)
- Category
- Motor Drivers, Controllers
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,915 in stock
#C5126650
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹148.26 | ₹148.26 |
| 10+ | ₹123.69 | ₹1,236.90 |
| 30+ | ₹110.34 | ₹3,310.20 |
| 100+ | ₹95.03 | ₹9,503.00 |
| 490+ | ₹88.35 | ₹43,291.50 |
| 980+ | ₹85.12 | ₹83,417.60 |
1 × ₹148.26
₹148.26
excl. GST
₹174.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 490 per tray
FT1215Q
₹148.26 for 1 + GST
Specifications
- Drive Type
- Three Phase
- Features
- Motor stall protection;Motor speed indication
- Technology
- Yes
- Voltage - Supply
- 4.5V~28V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5mA
- Number of Half Bridges
- 3
- RDS(on)
- 550mΩ;450mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 490 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.58 g
Overview
The FT1215Q is a Three- Phase Sinusoidal BLDC Motor Driver. It comes with the advanced Hall sensor design and users can choose to use 1 Hall or 3 Halls according to the actual conditions. Due to its adaptive features and wide power- supply range capabilities, it is intended to cover a wide range of motor characteristics, while requiring little tuning from the user. Speed adjustment can be achieved through either direct- PWM or analog voltage control. Speed indicator is provided through a Frequency Generator output, generating digital pulse with its frequency proportional to the speed of the motor. Protection functions of FT1215 are comprehensive including lock protection and automatic recovery, under voltage, thermal shutdown, current limit and over current protections. These prevent the control circuits and the motor from being damaged, particularly under stressed applications and demanding environments.
Key features
- Selectable SVPWM (sine-wave) or BLDC (120°) drives
- 1 Hall or 3 Halls can be selected
- Hall sensor/ Hall IC input supported
- PWM speed input
- Analog speed input
- lead angle control
- Soft start
- FG (Frequency Generator) and RD (Rotation detection) output
- Current limit and internal over current protection
- Lock protection
- Built-in thermal shutdown protection (TSD)
- Built-in Under Voltage Lock Out (UVLO)
- Low Rds (1.0Ω)
