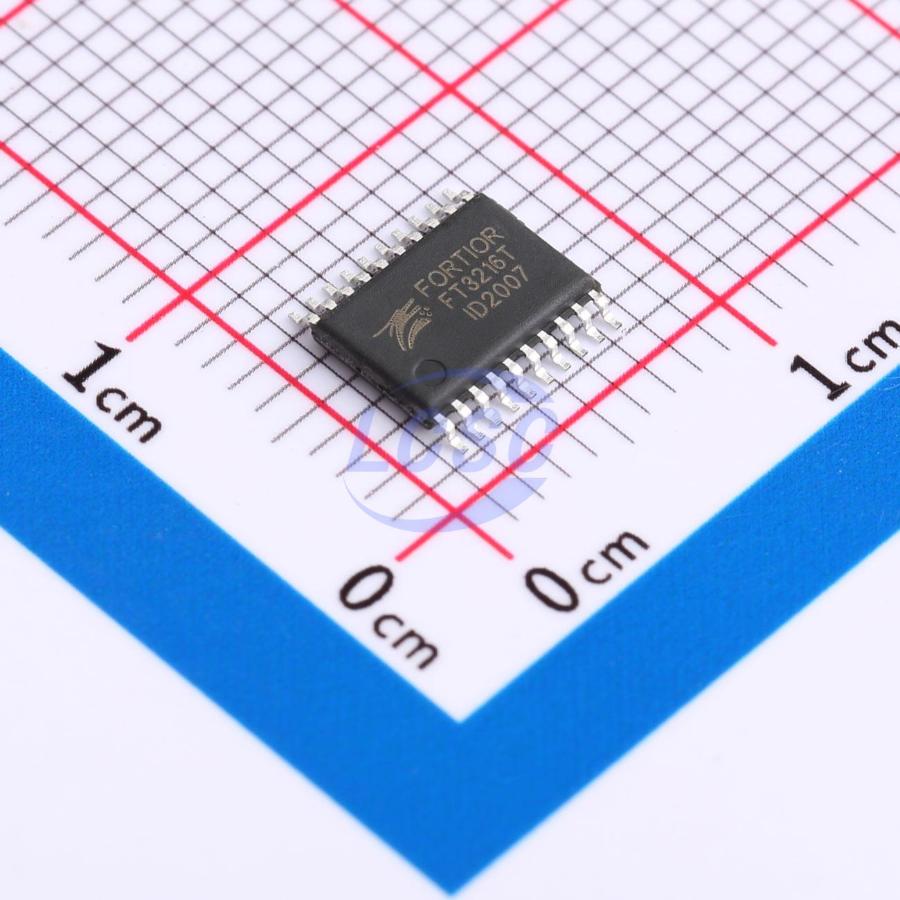

FT3216T
TSSOP-20 Motor Drivers, Controllers RoHS
Three Phase Sensorless BLDC Motor Driver
- Manufacturer
- Fortior Tech
- Manufacturer part #
- FT3216T
- Store part #
- C5126657
- Package / case
- TSSOP-20
- Category
- Motor Drivers, Controllers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,112 in stock
#C5126657
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹150.41 | ₹150.41 |
| 10+ | ₹125.63 | ₹1,256.30 |
| 50+ | ₹111.85 | ₹5,592.50 |
| 100+ | ₹96.54 | ₹9,654.00 |
| 500+ | ₹89.65 | ₹44,825.00 |
| 1,000+ | ₹86.42 | ₹86,420.00 |
1 × ₹150.41
₹150.41
excl. GST
₹177.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
FT3216T
₹150.41 for 1 + GST
Specifications
- Features
- Motor stall protection;Motor speed indication;Soft switching
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.204 g
Overview
The FT3216 is a Three Phase sensorless BLDC motor driver. Due to its adaptive features and wide power- supply range capabilities, it is intended to cover a wide range of motor characteristics, while requiring minimal tuning from the user. Speed adjustment can be achieved through either direct- PWM or analog voltage control. Speed indicator is provided through a Frequency Generator output, generating digital pulse with its frequency proportional to the speed of the motor. Protection functions of FT3216 are comprehensive including lock protection and automatic recovery, under voltage, thermal shutdown, current limit and over current protections. These prevent the control circuits and the motor from being damaged, particularly under stressed applications and demanding environments.
Key features
- Position sensorless BLDC controller
- Selectable soft switch SBLDC (150°) or BLDC (120°) drives
- PWM speed input
- Analog speed input
- Soft start
- FG (Frequency Generator) and RD (Rotation detection) output
- Current limit and internal over current protection
- Lock protection
- Built-in thermal shutdown protection (TSD)
- Built-in Under Voltage Lock Out (UVLO)
- Low Rds (1.0Ω)
