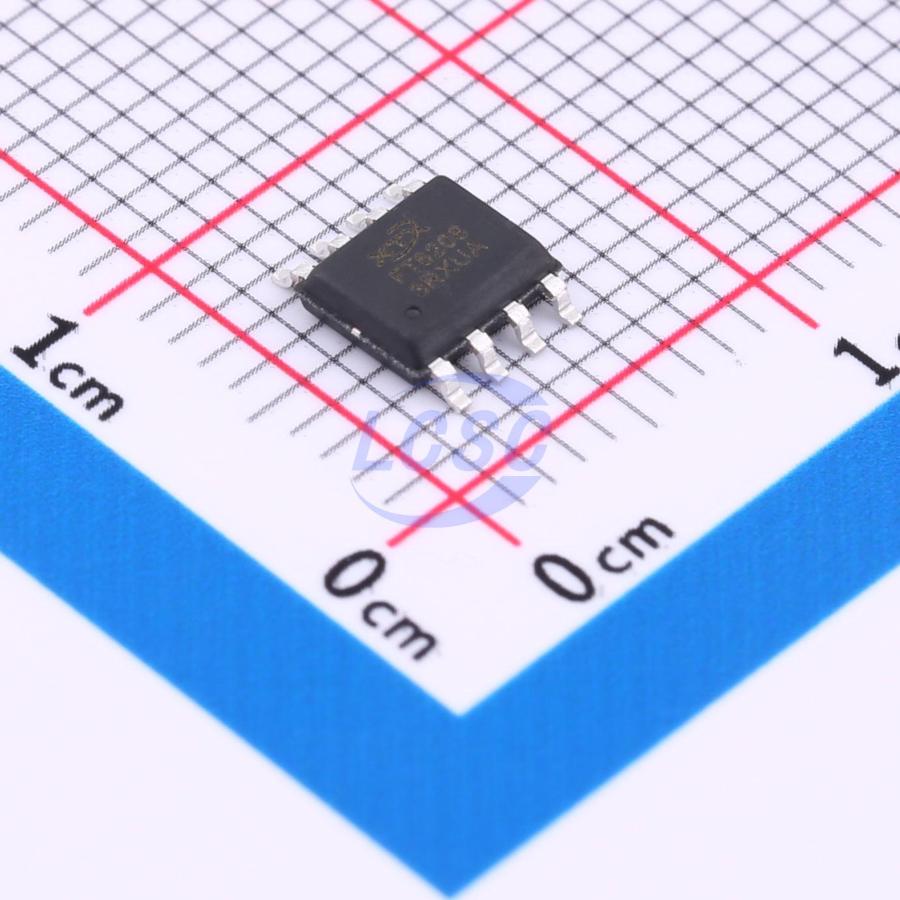

XTX

FT6208

2.4V~7.2V SOP-8 Motor Drivers, Controllers RoHS

SOP-8ROHS CompliantActive

Single-channel DC motor driver

Manufacturer: XTX
Manufacturer part #: FT6208
Store part #: C7422374
Package / case: SOP-8
Category: Motor Drivers, Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,400 in stock

#C7422374

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹18.91	₹94.55
50+	₹14.94	₹747.00
150+	₹12.97	₹1,945.50
500+	₹11.48	₹5,740.00
3,000+	₹10.29	₹30,870.00
6,000+	₹9.70	₹58,200.00

Quantity (min 5, multiples of 5)

5 × ₹18.91

₹94.55

excl. GST

₹111.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

FT6208

₹94.55 for 5 + GST

Specifications

Features: Active braking function
Technology: Yes
Voltage - Supply: 2.4V~7.2V
Supply Current (Iq): 100nA
Output Current: 1.3A
Peak Current: 2.5A
RDS(on): 580mΩ

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.222 g

Overview

The FT6208 is a fully integrated motor driver solution designed for consumer products, toys, and other low-voltage or battery-powered motion control applications. This device drives a single brushed DC motor, consisting of power PMOS and NMOS transistors, with integrated forward/reverse/stop/brake four-quadrant control functions. The FT6208 supports a maximum operating voltage of 7.2V, continuous current of 1.3A, and peak current of 2.5A. It also integrates protection features including over-temperature protection and undervoltage lockout (UVLO).
