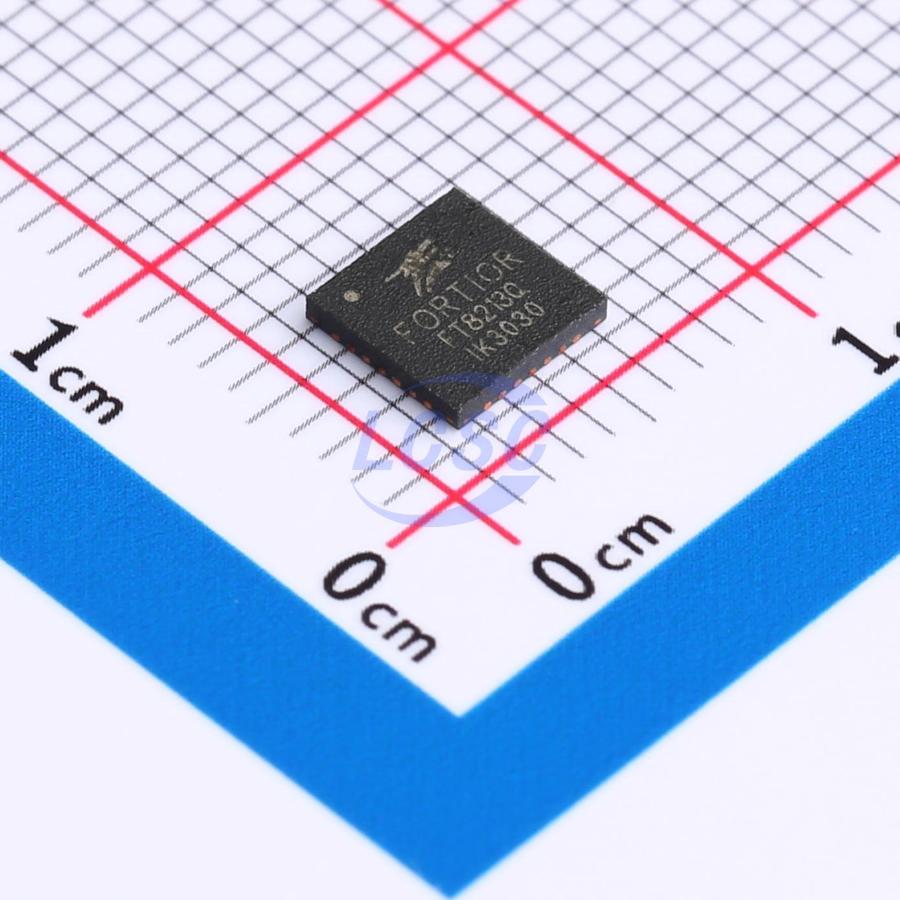

FT8213Q

FT8213Q is a three-phase, sensorless FOC brushless DC motor driver IC with built-in Rdson 1Ω drive MOSFETs. The chip integrates all components required for motor control with minimal external components, low noise, and low motor torque ripple. Built-in EFUSE supports configurable motor parameters, startup, and speed control modes. The speed control interface supports PWM, analog input, and I²C for motor speed regulation, with integrated speed indication — motor speed can be read in real time via the FG pin or I²C interface. Speed control modes include constant speed, constant airflow, constant current, and open-loop control, with motor speed indication functionality. Integrated protection features include phase loss, overvoltage, overcurrent, undervoltage, current limiting, overtemperature, and locked-rotor protection. Sleep current: 45μA.

Applications

• Refrigerator fan
• Cooling fan
• Water pump

Key features

• Input supply voltage: 5~18V
• Rdson: 1Ω (high-side MOS + low-side MOS)
• Drive current: 1A
• No HALL sensor required
• FOC control for reduced motor noise and vibration
• Built-in EFUSE, configurable motor parameters, startup and speed regulation modes
• Configurable speed regulation: I²C, digital PWM, analog input
• 4 control modes: constant speed, constant airflow, constant current, open-loop
• Forward/reverse rotation switching
• Configurable motor speed indication or stall indication
• Sleep current: 45μA
• SPEED pin wake-up or I²C wake-up
• Configurable I²C address
• Phase loss protection
• Overvoltage protection
• Overcurrent protection
• Undervoltage protection
• Current limiting protection
• Overtemperature protection
• Locked-rotor protection
