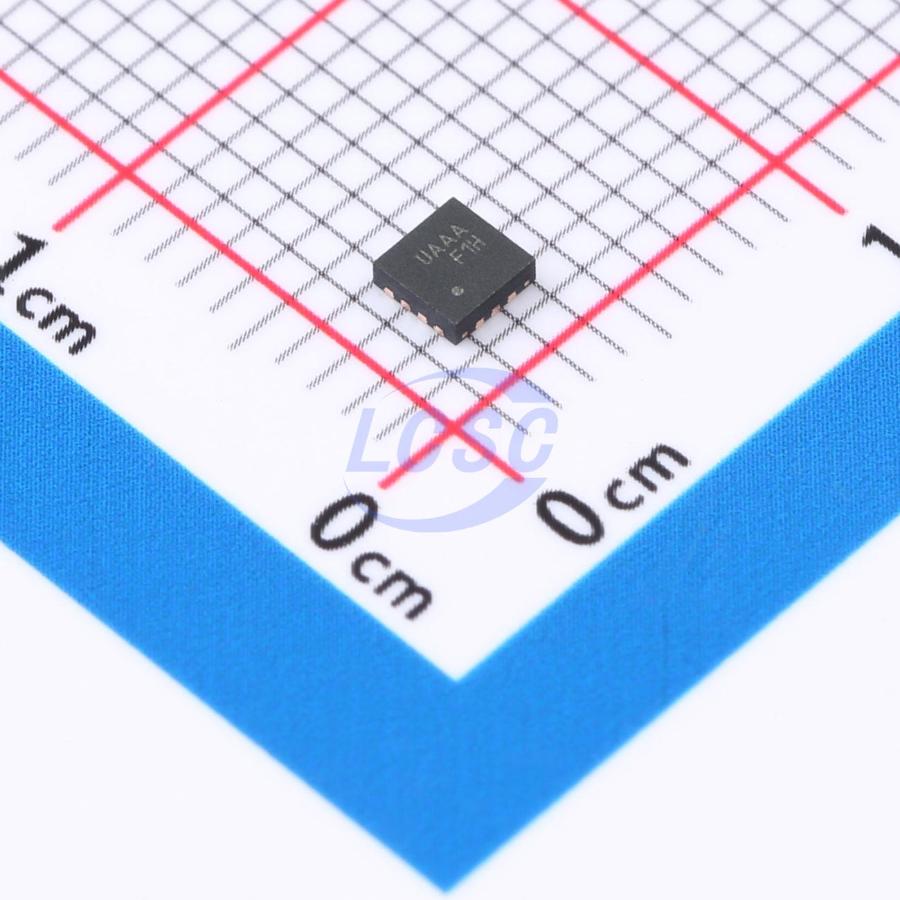

FUSB302BMPX

Integrates CCx to VCONN switch with over-current limiting for powering USB3.1 Full Featured cables. USB Power Delivery (PD) 2.0, Version 1.2 Support - Automatic GoodCRC Packet Response - Automatic retries of sending a packet if a GoodCRC is not received - Automatic soft reset packet sent with retries if needed - Automatic Hard Reset Ordered Set Sent Low Power Operation: ICC = 25 μA (Typical) Packaged in : 9-Ball WLCSP (1.215 mm × 1.260 mm) 14-lead MLP (2.5 mm × 2.5 mm, 0.5 mm Pitch) The FUSB302B targets system designers looking to implement a DRP/SRC/SNK USB Type-C connector with low amount of programmability. The FUSB302B enables the USB Type-C detection including attach, and orientation. The FUSB302B integrates the physical layer of the USB BMC power delivery protocol to allow up to 100 W of power and role swap. The BMC PD block enables full support for alternative interfaces of the Type-C specification.

Applications

• Smartphones
• Tablets
• Laptops
• Notebooks
• Power Adapters
• Cameras
• Dongles

Key features

• Ability to connect as either a host or a device based on what has been attached.
• Software configurable either as a dedicated host, dedicated device, or dual role.
• Dedicated devices can operate both on a Type-C receptacle or a Type-C plug with a fixed CC and VCONN channel.
• Full Type-C 1.2 Support. Integrates the following functionality of the CC pin
• Attach/Detach Detection as Host
• Current Capability Indication as Host
• Current Capability Detection as Device
• Audio Adapter Accessory Mode
• Debug Accessory Mode
• Active Cable Detection
