Fusb302mpx

The FUSB302 targets system designers looking to implement a DRP/SRC/SNK USB Type-C connector with low amount of programmability. The FUSB302 enables the USB Type-C detection including attach, and orientation. The FUSB302 integrates the physical layer of the USB BMC power delivery protocol to allow up to 100 W of power and role swap. The BMC PD block enables full support for alternative interfaces of the Type-C specification.

Applications

• Smartphones
• Tablets
• Laptops
• Notebooks
• Power Adapters
• Cameras
• Dongles

Key features

• Dual-Role Functionality with Autonomous DRP Toggle Ability to connect as either a host or a device based on what has been attached. Software configurable either as a dedicated host, dedicated device, or dual role.
• Dedicated devices can operate both on a Type-C receptacle or a Type-C plug with a fixed CC and VCONN channel.
• Full Type-C 1.1 Support.
• Integrates the following functionality of the CC pin: Attach/Detach Detection as Host, Current Capability Indication as Host, Current Capability Detection as Device, Audio Adapter Accessory Mode, Debug Accessory Mode, Active Cable Detection.
• Integrates CCx to VCONN switch with over-current limiting for powering USB3.1 Full Featured cables.
• USB Power Delivery (PD) 2.0, Version 1.1 Support: Automatic GoodCRC Packet Response, Automatic retries of sending a packet if a GoodCRC is not received, Automatic soft reset packet sent with retries if needed, Automatic Hard Reset Ordered Set Sent.
• Dead Battery Support (SNK Mode Support when No Power Applied).
• Low Power Operation: lcc = 25 μA (Typical).

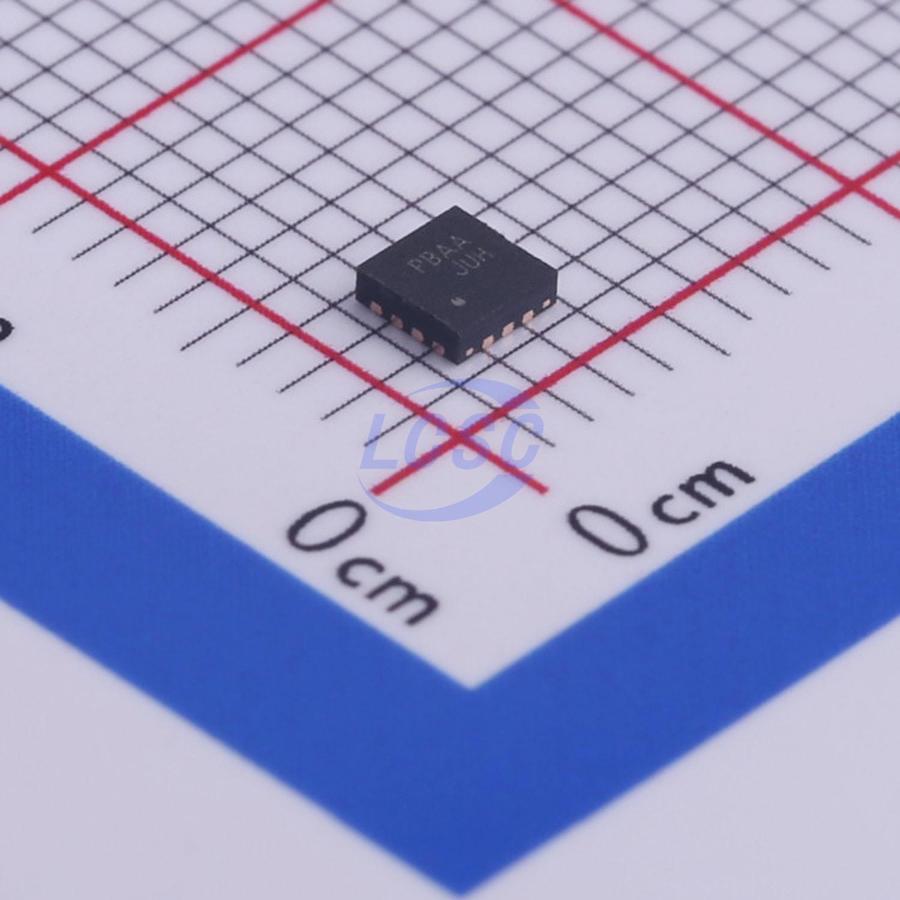

• Packaged in 9-Ball WLCSP (1.215 mm × 1.260 mm) and 14-lead MLP (2.5 mm × 2.5 mm, 0.5 mm Pitch).
