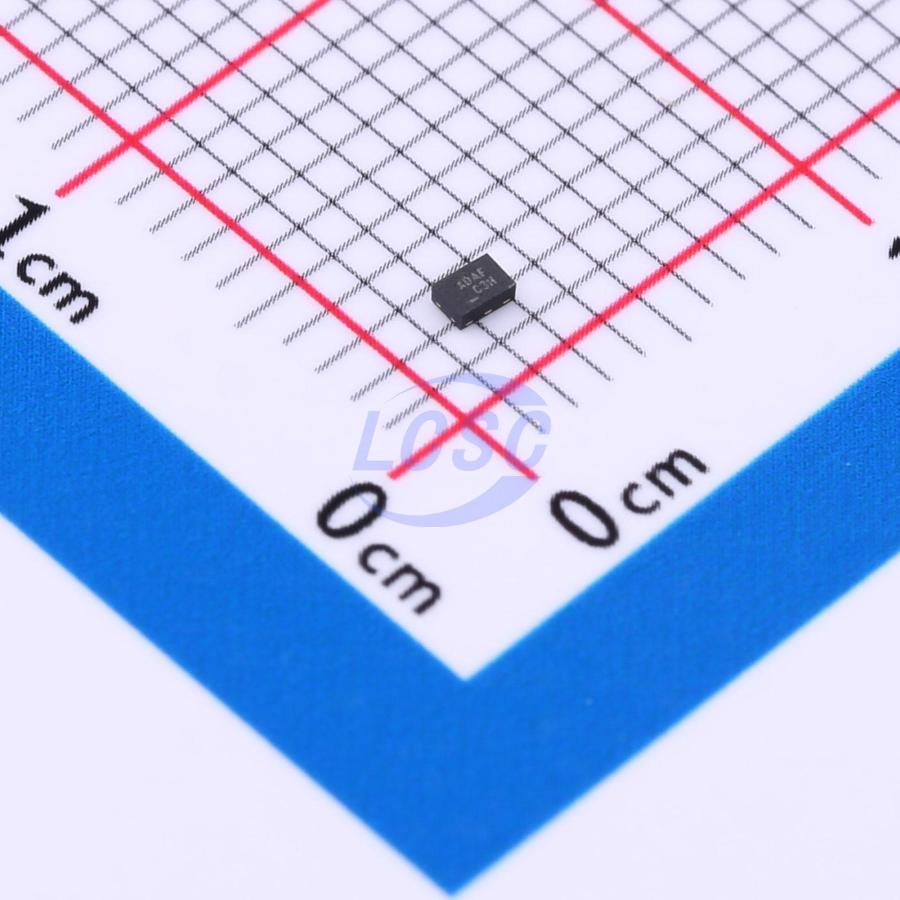

FXLH1T45L6X

The FXLH1T45 is a single bit configurable dual−voltage supply translator designed for both uni−directional and bi−directional voltage translation between two logic levels. The device allows translation between voltages as high as 3.6 V to as low as 1.1 V. The A port tracks the VCCA level, and the B port tracks the VCCB level. This allows for bi−directional voltage translation over a variety of voltage levels: 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V. The device remains in 3−STATE until both VCCS reach active levels allowing either VCC to be powered−up first. Internal power down control circuits place the device in 3−STATE if either VCC is removed. The Transmit/Receive (T/R(overline)) input determines the direction of data flow through the device. The FXLH1T45 is designed so that the control pin (T/R(overline)) is supplied by VCCA.

Key features

• Bi−directional Interface between any 2 Levels from 1.1 V to 3.6 V
• Fully Configurable: Inputs Track VCC level
• Non−preferential Power−up Sequencing; either VCC may be Powered−up First
• Outputs Remain in 3−STATE until Active VCC Level is Reached
• Outputs Switch to 3−STATE if either VCC is at GND
• Power Off Protection
• Bushold On Data Inputs Eliminates the Need for External Pull−up/Pull−down Resistors
• Control Input (T/R(overline)) Levels are Referenced to VCCA Voltage
• Packaged in the MicroPak 6 SIP6 (1.0 mmx1.45 mm)
• ESD Protections Exceeds:
• 4 kV HBM ESD (per JESD22−A114 & Mil Std 883e 3015.7)
• 8 kV HBM I/O to GND ESD (per JESD22−A114 & Mil Std 883e 3015.7)
• 1 kV CDM ESD (per ESD STM 5.3)
• 200 V MM ESD (per JESD22−A115 & ESD STM5.2)
