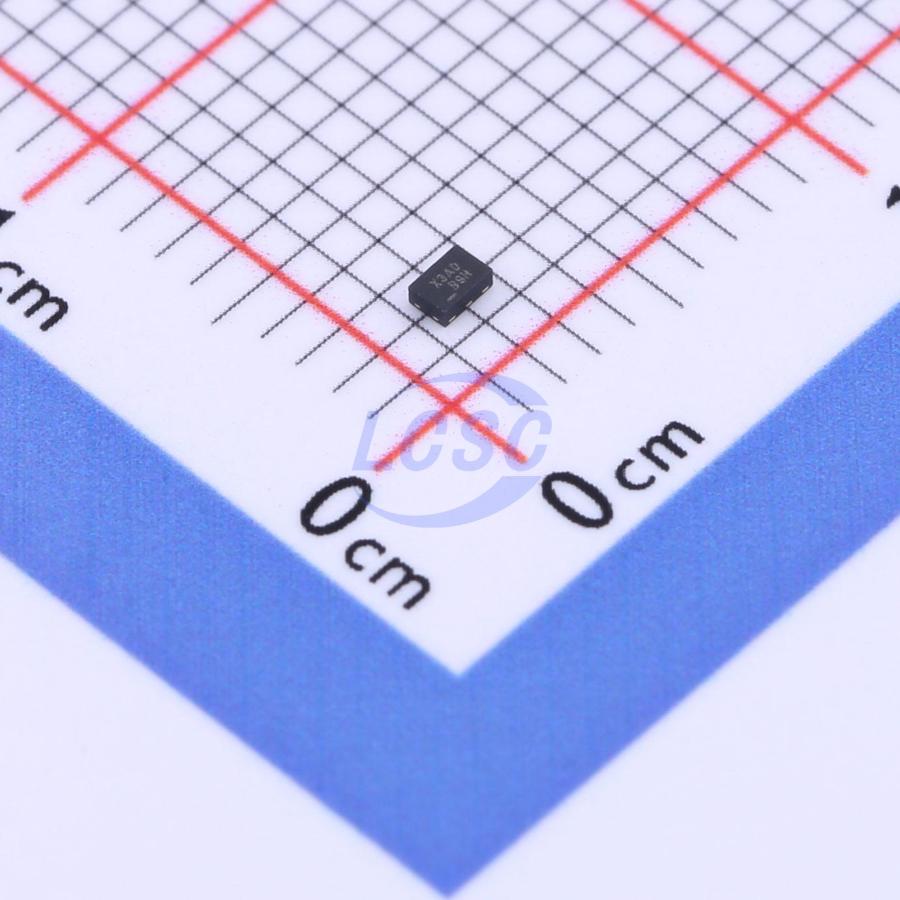

FXLP34L6X
1 1 MicroPak-6 Translators, Level Shifters RoHS
Single Bit Uni-Directional Translator
- Manufacturer
- onsemi
- Manufacturer part #
- FXLP34L6X
- Store part #
- C457627
- Package / case
- MicroPak-6
- Category
- Translators, Level Shifters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,870 in stock
#C457627
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.06 | ₹185.30 |
| 50+ | ₹29.00 | ₹1,450.00 |
| 150+ | ₹25.55 | ₹3,832.50 |
| 500+ | ₹21.25 | ₹10,625.00 |
| 2,500+ | ₹19.33 | ₹48,325.00 |
| 5,000+ | ₹18.18 | ₹90,900.00 |
5 × ₹37.06
₹185.30
excl. GST
₹218.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FXLP34L6X
₹185.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Elements
- 1
- Channel Type
- Unidirectional
- Features
- Output enable high-impedance
- Voltage - Supply
- 1V~3.6V;1V~3.6V
- Number of Circuits
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
The FXLP34 is a single translator with two separate supply voltages: VCC1 for input translation voltages and VCC for output translation voltages. This device operates with VCC values from 1.0V to 3.6V, and is intended for use in portable applications that require ultra low power consumption. The internal circuit is composed of a minimum of buffer stages, to enable ultra low dynamic power. The FXLP34 is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve high-speed operation while maintaining low CMOS power dissipation.
Key features
- 1.0V to 3.6V VCC Supply Voltage
- Converts Any Voltage (1.0V to 3.6V) to (1.0V to 3.6V)
- 4.6V Tolerant Inputs and Outputs tPD: - 4ns Typical for 3.0V to 3.6V VCC
- Power-Off High Impedance Inputs and Outputs Static Drive (IOH/IOL): - ±2.6mA at 3.00V VCC
- Uses Proprietary Quiet Series Noise / EMI Reduction Circuitry
- Ultra-Small Micropak Leadless Packages
- Ultra-Low Dynamic Power
