G2020Q

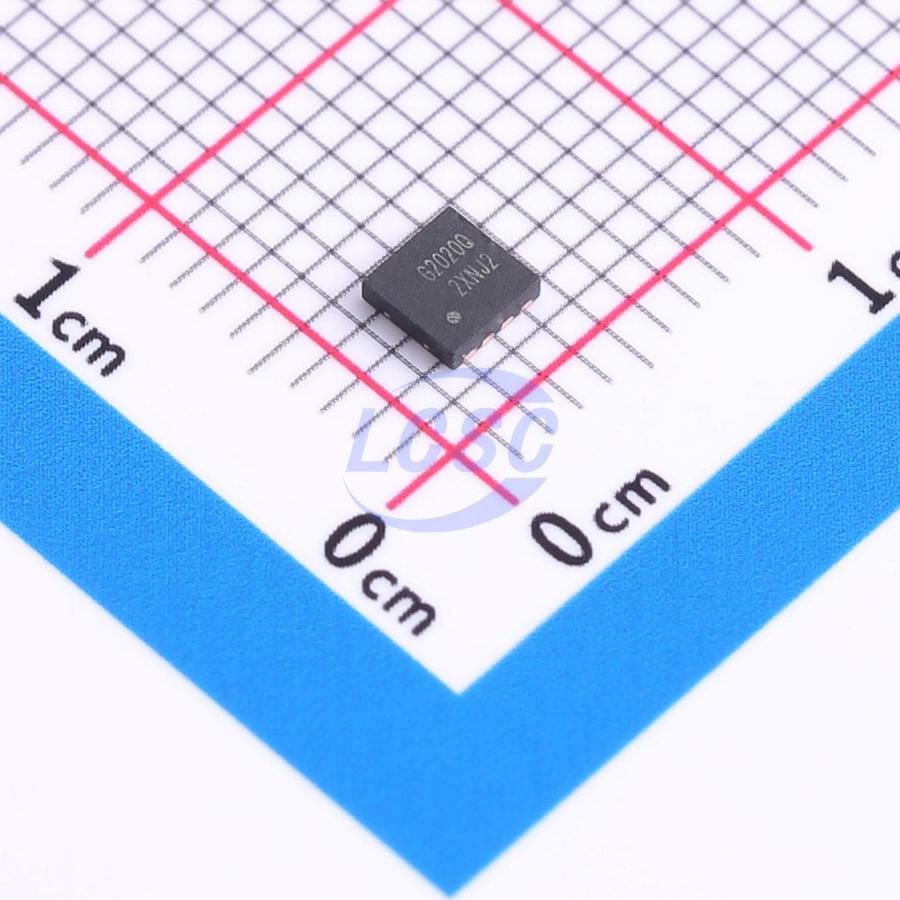

Low Side High Side Gate Driver IC MOSFET DFN-8-EP(3x3)
Single-phase high-side and low-side power MOSFET/IGBT driver IC
- Manufacturer
- WXNSIC
- Manufacturer part #
- G2020Q
- Store part #
- C41414473
- Package / case
- DFN-8-EP(3x3)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,020 in stock
#C41414473
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.93 | ₹144.65 |
| 50+ | ₹22.73 | ₹1,136.50 |
| 150+ | ₹20.06 | ₹3,009.00 |
| 500+ | ₹16.74 | ₹8,370.00 |
| 2,500+ | ₹15.25 | ₹38,125.00 |
| 5,000+ | ₹14.37 | ₹71,850.00 |
5 × ₹28.93
₹144.65
excl. GST
₹170.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
G2020Q
₹144.65 for 5 + GST
Specifications
- Quiescent Current
- 160uA
- Voltage - Supply
- 9V~20V
- Driven Configuration
- High Side;Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 50ns
- Fall Time
- 40ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
G2020Q is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC. It features independent high-side and low-side referenced output channels. Utilizing a high-low voltage compatible process, the high- and low-side gate drive circuits are integrated into a single chip. The logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The outputs feature high-current pulse capability and shoot-through prevention dead-time logic. The floating channel can be used to drive a high-side N-channel power MOSFET, with a maximum floating supply voltage of 250V; this floating channel requires an external bootstrap circuit. In addition, both the high-side and low-side of the G2020Q include undervoltage lockout (UVLO) protection. Housed in a DFN8 package, it operates over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Drive
Key features
- Floating channel maximum voltage up to +250V (bootstrap operation)
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Gate drive voltage range: 6V to 20V
- Integrated UVLO:
- VCC UVLO positive threshold: 5.5V
- VCC UVLO negative threshold: 5V
- VBS UVLO threshold: 3.6V
- Cross-conduction prevention dead-time logic, dead time: 200ns
- Propagation delay characteristics:
- Turn-on/turn-off propagation delay Ton/Toff = 150ns/140ns
- Delay matching: 50ns
- Wide temperature range: -40°C ~ 125°C
- Output stage source/sink current capability: 1.2A/1.5A
- RoHS compliant
- DFN8 package
